Luxion Double Socket with Slim Modules and Aluminium Frame – White

1 / 4

Luxion

Luxion Double Socket with Slim Modules and Aluminium Frame

SKU: LX-2MP024A-W

AED 35

In stock

Colour: White

Delivery across all seven emirates. Free on orders over AED 750.
Order now, we confirm availability and delivery with you before you pay.

Luxion double wall socket with slim modules and an aluminium frame – compact, minimalist design with child protection, in four colours.

Product details

Luxion sockets stand out for their compact, elegant and minimalist design. They are versatile, feature child protection, and their latest-generation technology helps save energy. The structure is durable and the sockets do not discolour over time. This is a practical product, made from quality materials and built to last, bringing functionality and comfort to your home.

Highlights

A compact, elegant and minimalist design

Enjoy the versatility of the new Luxion sockets. This double socket combines slim socket modules with an aluminium frame.

Double socket with slim modules
Aluminium frame
LUXION design

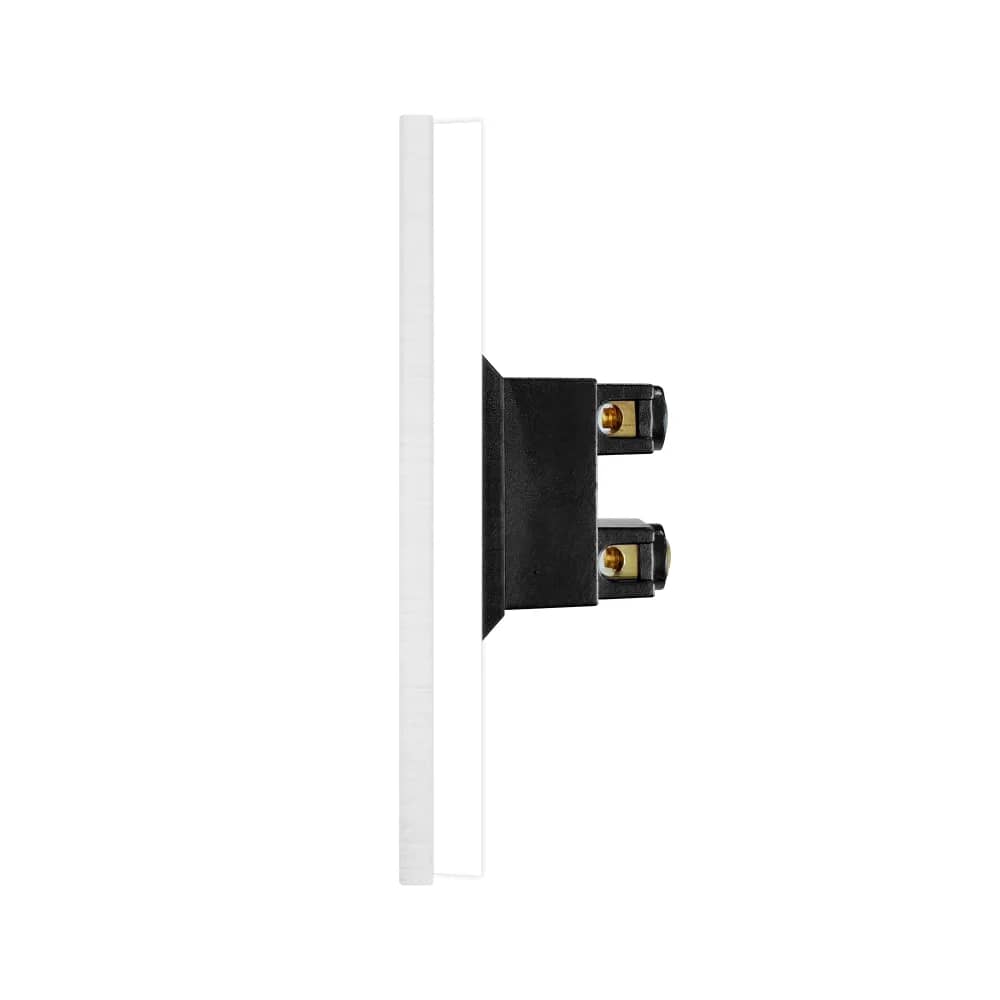

Structure

The socket is made up of three main parts.

Aluminium frame
Socket modules
Metal frame

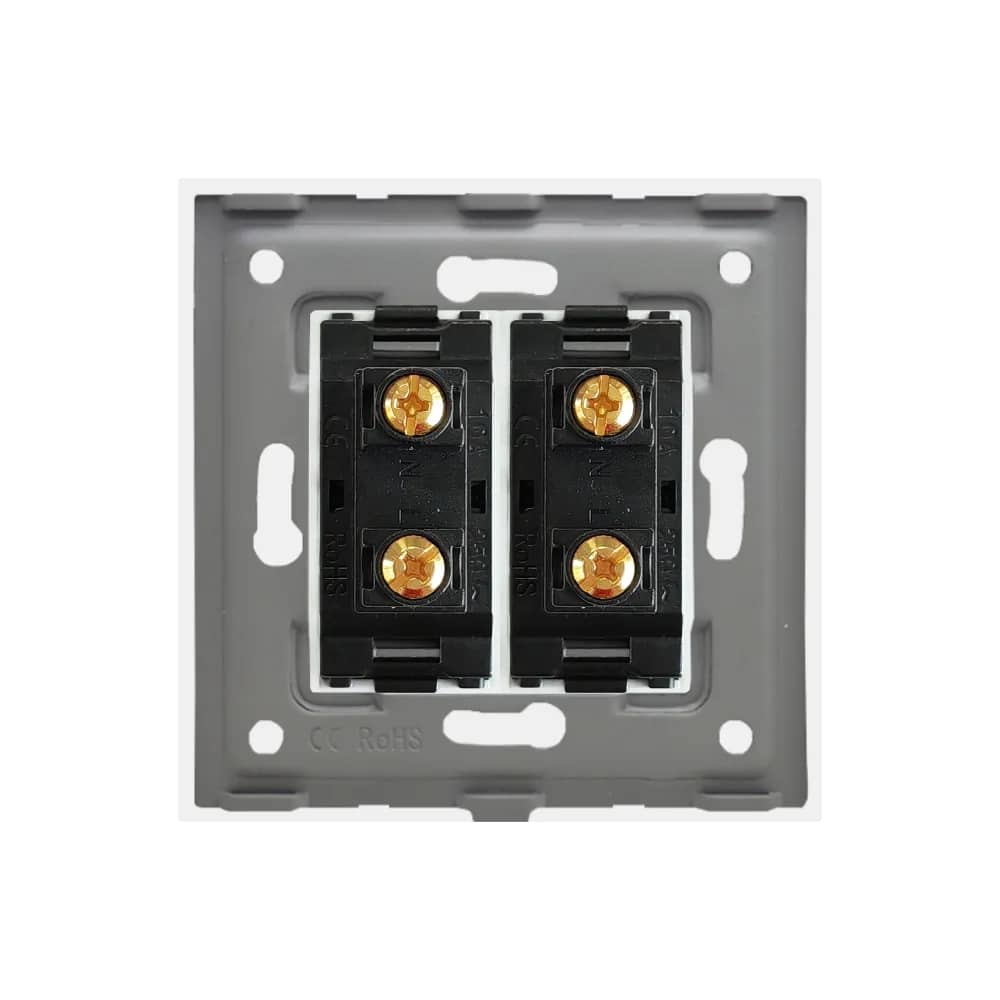

Dimensions

Frame size: 86 mm x 86 mm
Front thickness: 9 mm
Depth behind the frame: 26 mm
Module height at rear: 28 mm
Screw fixing system: 60 mm spacing

Wiring diagram

Connect the neutral and live wires to the terminals of the socket modules as shown in the wiring diagram.

Neutral (N)
Live (L)

Installation steps

1. Open the package.
2. Connect the wires and tighten the screws.
3. Use the 2 screws to fix the frame.
4. Fit the aluminium frame (it clicks into place).
