Luxion 3 Gang Glass Touch Light Switch with Aluminium Frame, 500W – White

1 / 4

Luxion

Luxion 3 Gang Glass Touch Light Switch with Aluminium Frame, 500W

SKU: LX-ST-301A-W

AED 80

In stock

Colour: White

Delivery across all seven emirates. Free on orders over AED 750.
Order now, we confirm availability and delivery with you before you pay.

Compact, minimalist Luxion 3 gang touch light switch with glass panel and aluminium frame, 500W, in White, Gold, Grey or Black.

Product details

Luxion light switches stand out for their compact, elegant and minimalist design. They are versatile, and the touch sensor is highly precise, just like that of a smartphone. The construction is durable and the switches do not discolour over time. It is a practical product, made from quality materials and built to last, bringing convenience and comfort to your home.

Highlights

Compact, Elegant and Minimalist Design

Enjoy the versatility of the new smart switches. The LUXION triple touch switch combines a glass panel with an aluminium frame.

3-gang touch switch
Aluminium frame
Glass front panel

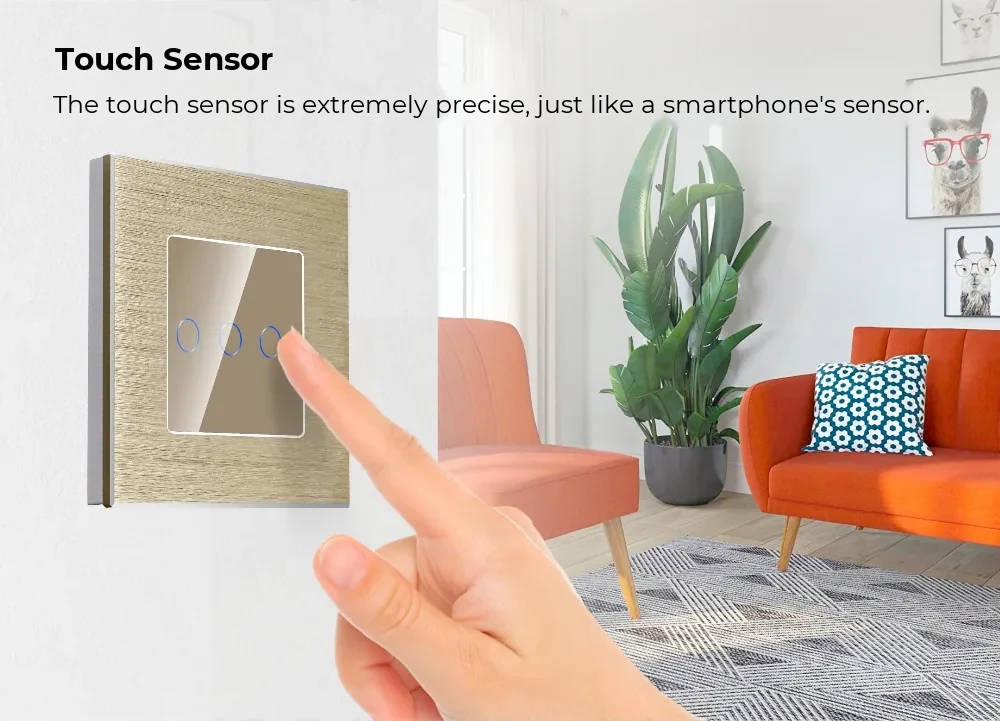

Touch Sensor

The touch sensor is extremely precise, just like the sensor in a smartphone.

Moisture Resistant

Can be used in humid environments.

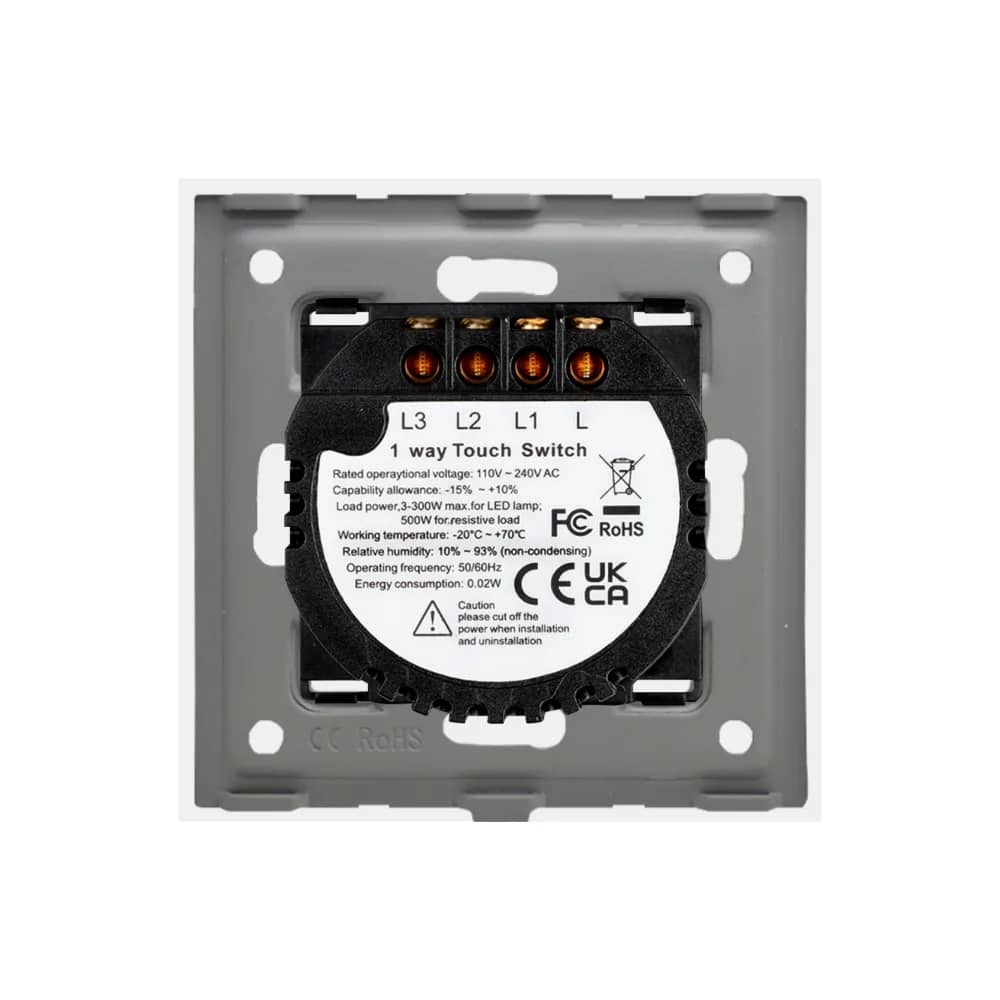

Structure

The switch consists of three main parts.

Elegant glass panel with aluminium frame
Switch module
Metal mounting frame
Screw fixing system with 60 mm spacing

Wiring Diagram

Connect the live wire (L) to terminal L and each light circuit to terminals L1, L2 and L3. The neutral (N) goes to the lamps.

L: Live
N: Neutral
L1, L2, L3: Light outputs

Installation Steps

1. Open the package.
2. Connect the wires and tighten the screws.
3. Use the 2 screws to fix the frame.
4. Fit the front panel (it clicks into place).

Technical Data

Rated operating voltage: 110V ~ 240V AC
Capability allowance: -15% ~ +10%
Load power: 3-300W max. for LED lamps, 500W for resistive load
Working temperature: -20°C ~ +70°C
Relative humidity: 10% ~ 93% (non-condensing)
Operating frequency: 50/60Hz
Energy consumption: 0.02W
Life time: 100,000 times
Dimensions: 86 x 86 mm
Panel thickness: 9 mm
Module depth: 26 mm
Module height: 49 mm
Markings: CE, FC, RoHS, UKCA

Safety Note

Please cut off the power during installation and uninstallation.
