01
Compact, Elegant and Minimalist Design
Enjoy the versatility of the new Luxion switches. This single touch dimmer switch supports 2-way and intermediate wiring and comes with an aluminium frame.
Luxion
Luxion 1 Gang 2-Way / Intermediate Dimmer Touch Light Switch with Aluminium Frame
SKU: LX-MT-D102A-W
AED 107
In stock
1
- Delivery across all seven emirates. Free on orders over AED 750.
- Order now, we confirm availability and delivery with you before you pay.
Luxion 1 gang 2-way/intermediate touch dimmer switch with aluminium frame, smartphone-precise touch sensor, in White, Gold, Grey or Black.
Product details
Luxion light switches stand out for their compact, elegant and minimalist design. They are versatile, and the touch sensor is highly precise, just like that of a smartphone. The structure is durable and the switches do not discolour over time. This is a practical product, made from quality materials and built to last, bringing functionality and comfort to your home.
Compatible only with another 2-way dimmer switch!
A maximum of 3 switches can be connected in the circuit (intermediate switching)
Highlights
02
Important: 2-Way Compatibility
2-way switches only work when installed and synchronised with other Luxion 2-way products. Luxion products DO NOT work with other brands.
03
Key Features
- Touch sensor: extremely precise, identical to a smartphone sensor
- Moisture resistant: can be used in humid environments
- Does not fade: the elegant design stays intact
- Dimmable: a simple touch of the button gradually changes the light intensity
04
Compatible Bulbs
Smart RGB bulbs are not compatible.
- Dimmable LED: 300W max.
- Incandescent: 1000W max.
- Halogen: 1000W max.
- Smart RGB bulbs: not compatible
05

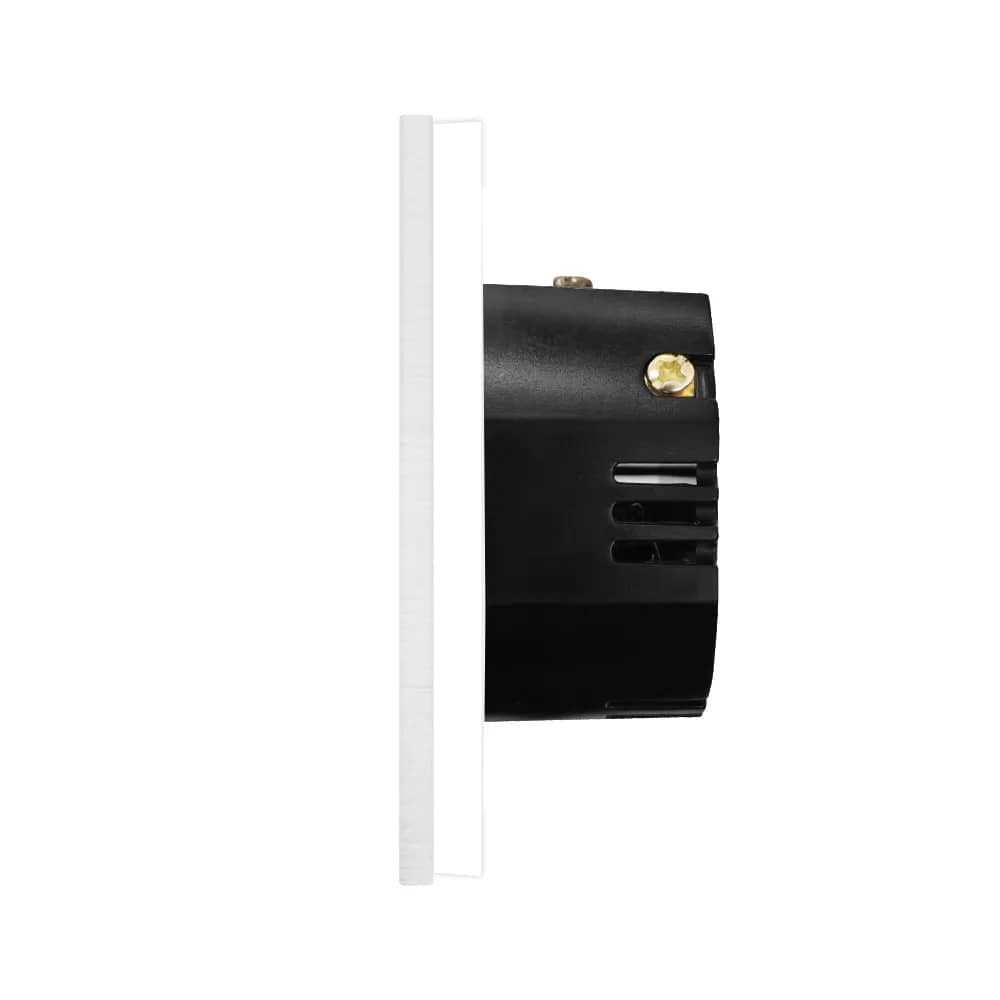

Structure
- Elegant glass panel with aluminium frame
- Switch module
- Metal frame
- Screw fixing system: 60 mm spacing
- ON/OFF button that also increases or decreases light intensity
06
Dimensions
- Width: 86 mm
- Height: 86 mm
- Panel depth: 9 mm
- Module depth: 26 mm
- Module height: 49 mm
07

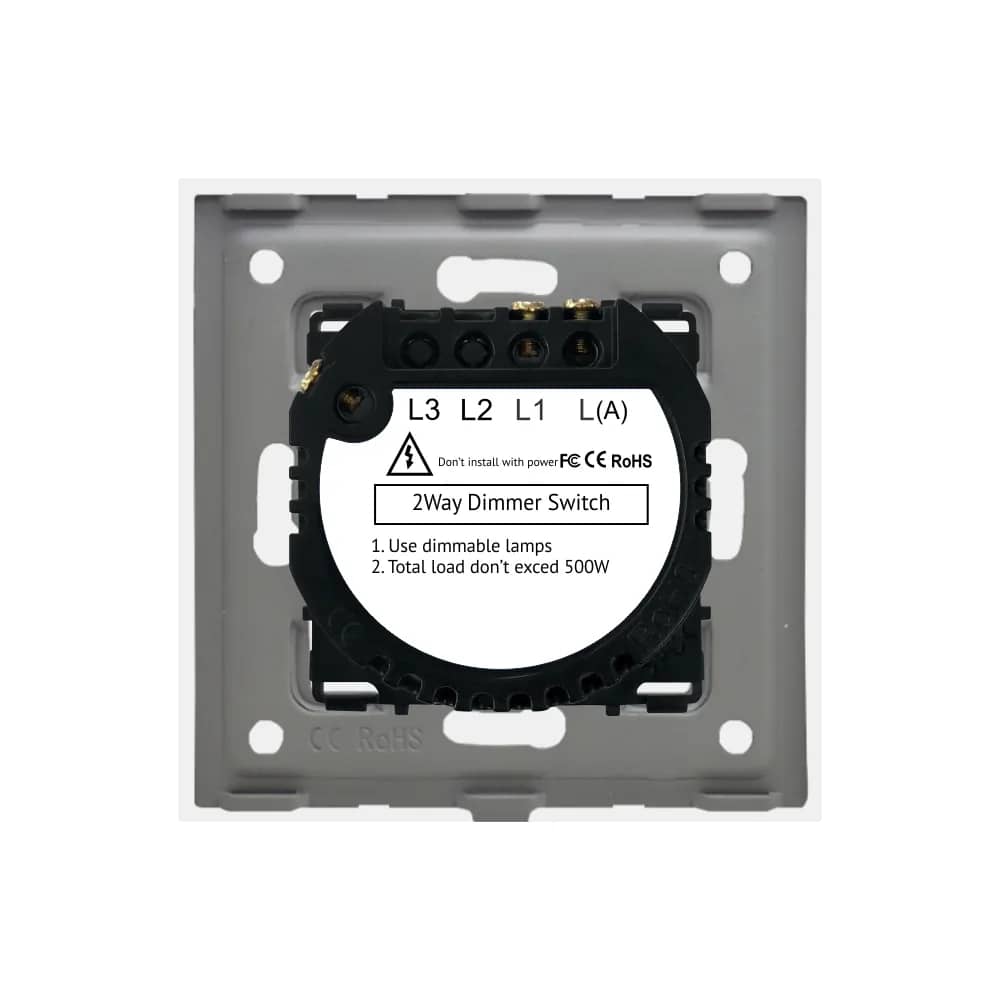

Wiring Diagram
Live (L) and Neutral (N) are connected with a 2-way/intermediate link between the two switches.
- Terminals: L3, L2, L1, L(A)
- Use dimmable lamps
- Total load must not exceed 500W
08
Installation Steps
- 1. Open the package.
- 2. Connect the wires and tighten the screws.
- 3. Use the 2 screws to fix the frame.
- 4. Fit the front panel (click).
