The New Livolo Socket Range – C9 Series
Part of Livolo's new C9 series of sockets, combining a power socket and a USB port in a single glass-framed unit. Easy and convenient – Livolo makes life easier.
Livolo
Livolo Single Socket with USB – Italian Standard, Glass Frame
SKU: VL-C9C1EU1U-11
AED 82
In stock
1
- Delivery across all seven emirates. Free on orders over AED 750.
- Order now, we confirm availability and delivery with you before you pay.
Livolo single wall socket with USB and tempered-look glass frame, Italian standard, for 3-module boxes with 85 mm screw spacing.
Product details
Livolo single socket with USB and glass frame, Italian model for homes, offices, commercial spaces and hotels. Modern, high-quality products. The product is compatible with 3-module modular wall boxes with 85 mm spacing between the screws.
Highlights
02
Exceptional Quality
Both the appearance and the quality of the materials are flawlessly finished.
- Durable glass: hard enough to stand the test of time
- Finely polished glass: the glossy, translucent texture reflects light from the glass surface
- Does not discolour: always as new as on the first day
03

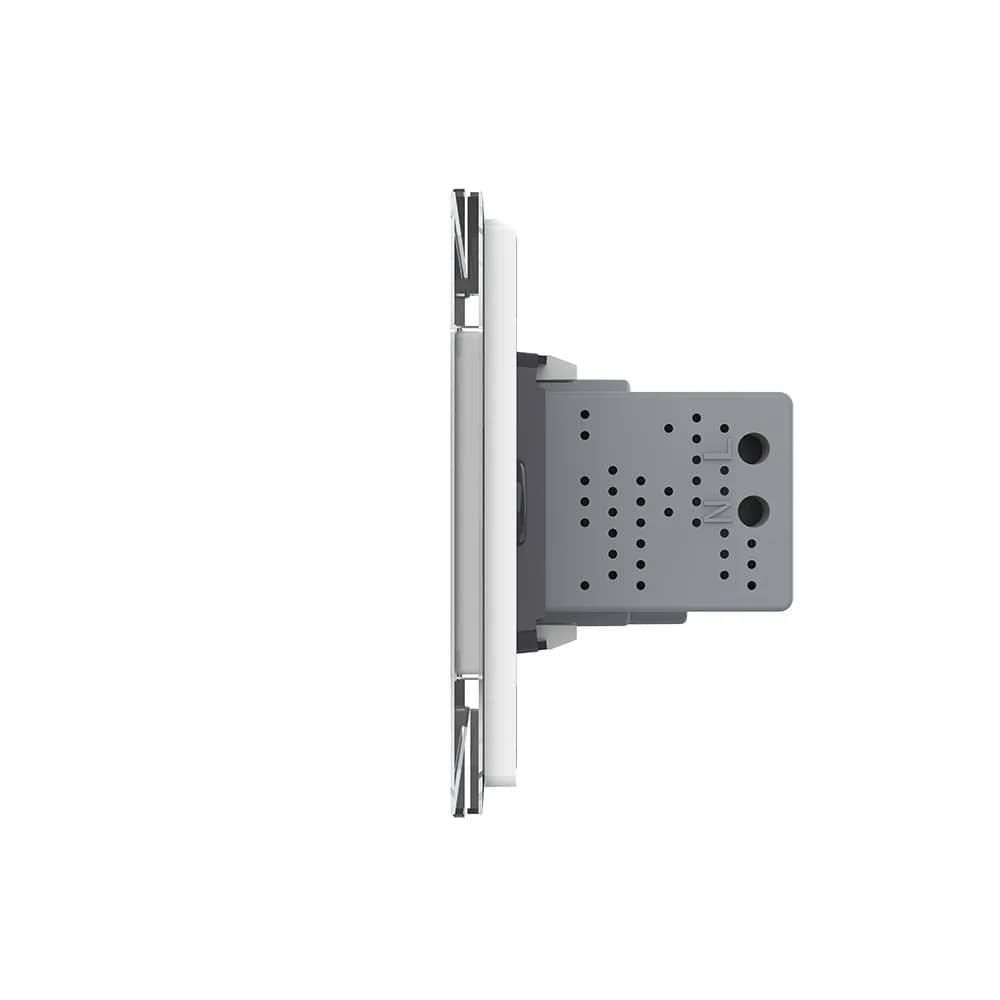

Structure
- Elegant crystal panel
- Integrated safety module
- Metal frame
- Polycarbonate support
- Screw-fixing system (85mm between fixing points)
04
Technical Data
- Rating: 16A 250V~
- Front panel: 119mm x 78mm
- Glass panel thickness: 4mm
- Installation depth: 42mm
- Frame thickness: 8mm
- Fixing screw spacing: 85mm
- Terminals: Live (L), Neutral (N), Earth
05
Wiring Diagram
Connect the supply wires to the corresponding terminals on the back of the socket.
- Live: L terminal
- Neutral: N terminal
- Earth: earth terminal
06
Installation Steps
- 1. Open the package
- 2. Connect the cables and tighten the screws
- 3. Use the 2 screws to fix the frame
- 4. Fit the front panel (it clicks into place)
