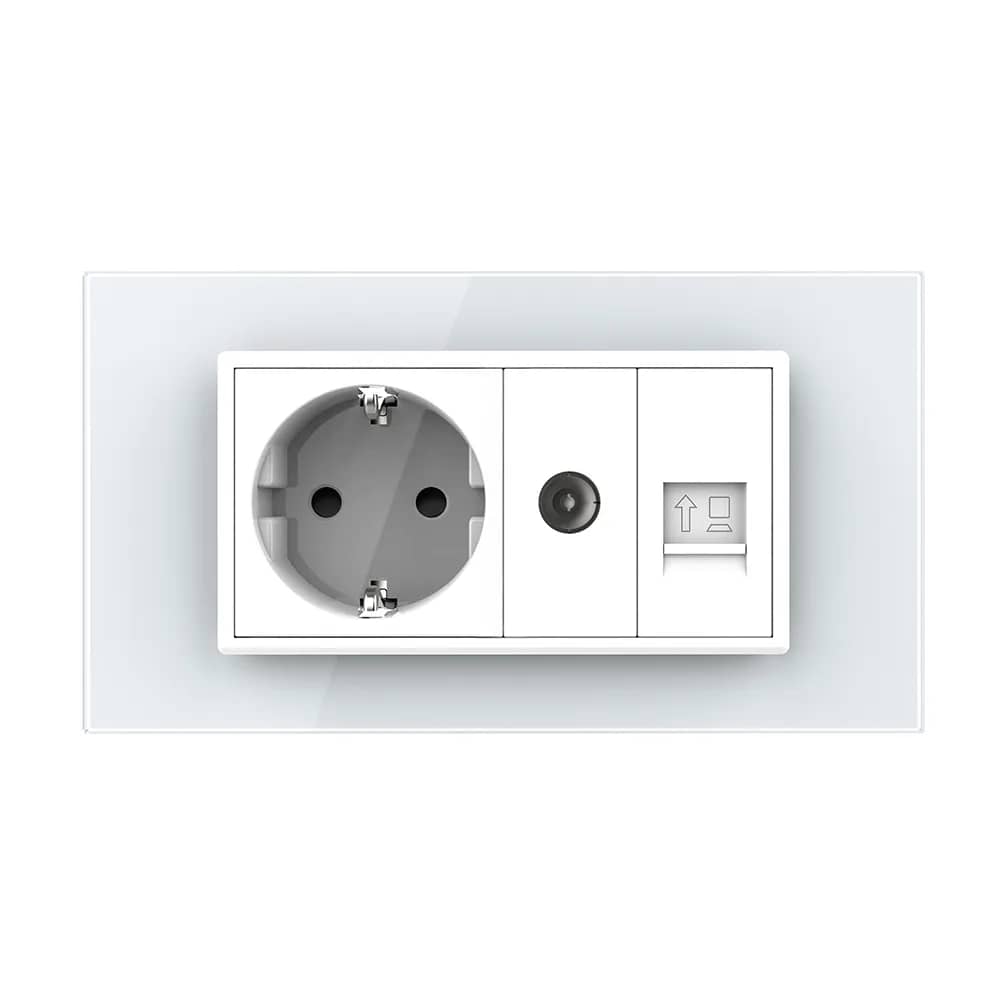

Livolo Glass Frame Double Wall Socket – 1 Schuko Socket + TV/Internet, Italian Standard – New Series – White — image 2

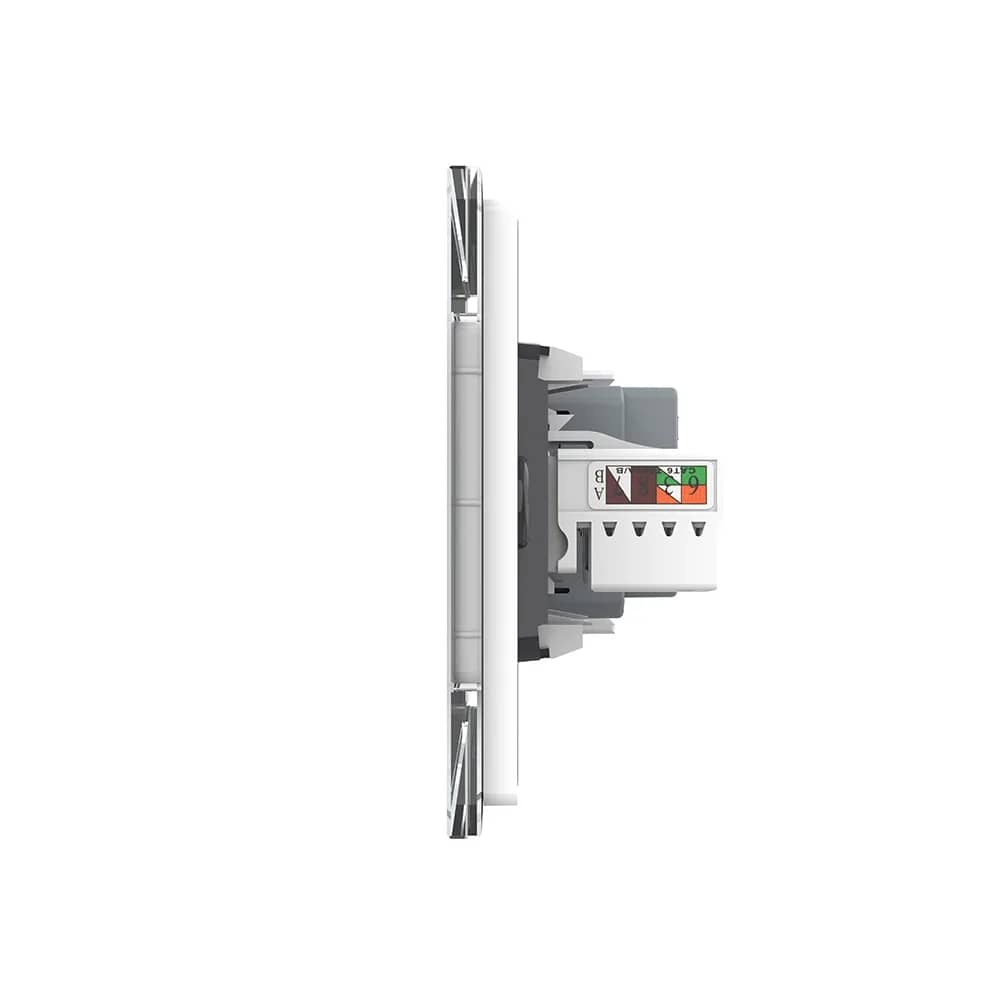

Livolo Glass Frame Double Wall Socket – 1 Schuko Socket + TV/Internet, Italian Standard – New Series – White — image 3
1/3
Livolo

Livolo Glass Frame Double Wall Socket – 1 Schuko Socket + TV/Internet, Italian Standard – New Series

SKU: VL-C9-C2EU/VC-11

AED 84

In stock

Colour: White
1
  • Delivery across all seven emirates. Free on orders over AED 750.
  • Order now, we confirm availability and delivery with you before you pay.

Livolo tempered-glass double frame combining a Schuko wall socket and a TV/internet media socket – new series with a compact design.

Plug type: this socket is the European Schuko type (CEE 7/3). Most UAE homes use BS 1363 (Type G) sockets — please check that it suits your installation and appliances, or ask us before ordering.

Product details

The glass-frame wall socket combines practicality with elegant aesthetics. You can now have Schuko sockets and media sockets on the same frame and mount it directly in the wall, avoiding unsightly cables.

Improvements over the previous series:

  • → More powerful and robust chip – made in Japan
  • → Reduced standby power consumption
  • → Compact design (smaller dimensions than the previous model)

Highlights

Livolo Glass Frame Double Wall Socket – 1 Schuko Socket + TV/Internet, Italian Standard – New Series – Overview
01

Overview

Livolo double wall socket with a glass frame, combining 1 Schuko socket with TV and Internet outlets. Italian standard, 4 modules. Simple design, outstanding mechanism.

  • 1 Schuko socket + TV outlet + Internet outlet
  • Italian standard, 4 modules
  • Part of the new Livolo C9 series
  • Available in several frame colours
Livolo Glass Frame Double Wall Socket – 1 Schuko Socket + TV/Internet, Italian Standard – New Series – Design and Materials
02

Design and Materials

The panel is made from high-quality glass that resists scratches and high temperatures. It does not discolour, so the elegant design stays intact.

  • Scratch-resistant glass panel
  • Resistant to high temperatures
  • Does not discolour
Livolo Glass Frame Double Wall Socket – 1 Schuko Socket + TV/Internet, Italian Standard – New Series – Wiring Diagram
03

Wiring Diagram

Connect the neutral, live and earth lines to the Schuko socket module, and the data and coaxial cables to the Internet and TV terminals.

  • Neutral line
  • Live (supply) line
  • Earth line
  • Internet terminal
  • TV terminal
Livolo Glass Frame Double Wall Socket – 1 Schuko Socket + TV/Internet, Italian Standard – New Series – Wiring the Internet Socket
04

Wiring the Internet Socket

  • 1. Strip 20 mm of the cable insulation.
  • 2. Remove the dust protection.
  • 3. Insert the wires into the matching slots according to wire colour.
  • 4. Fit the protective cap.
Livolo Glass Frame Double Wall Socket – 1 Schuko Socket + TV/Internet, Italian Standard – New Series – Wiring the TV Socket
05

Wiring the TV Socket

  • 1. Strip 15 mm from the outer sheath of the coaxial cable and fold back the wire braid around the cable.
  • 2. Strip 15 mm of the inner insulation and fit the metal ring.
  • 3. Insert the connector between the braid and the insulation, then crimp the metal sleeves with pliers to secure them.
  • 4. Screw the wired connector onto the TV socket.
Livolo Glass Frame Double Wall Socket – 1 Schuko Socket + TV/Internet, Italian Standard – New Series – Installation Steps
06

Installation Steps

  • 1. Open the package.
  • 2. Connect the cables and tighten the screws.
  • 3. Use the 4 screws to fix the frame.
  • 4. Click the front panel into place.

In detail

Livolo Glass Frame Double Wall Socket – 1 Schuko Socket + TV/Internet, Italian Standard – New Series – detail 1
