Livolo Glass Frame Triple Socket with Blank – 2 Schuko Sockets + TV/Internet, Italian Standard – New Series – White

1 / 4

Livolo

Livolo Glass Frame Triple Socket with Blank – 2 Schuko Sockets + TV/Internet, Italian Standard – New Series

SKU: VL-C9-C3EU/VC-11

AED 121

In stock

Colour: White

Delivery across all seven emirates. Free on orders over AED 750.
Order now, we confirm availability and delivery with you before you pay.

Livolo tempered glass frame triple socket with 2 Schuko sockets, a TV/internet media socket and a blank, Italian standard, new series.

Plug type: this socket is the European Schuko type (CEE 7/3). Most UAE homes use BS 1363 (Type G) sockets — please check that it suits your installation and appliances, or ask us before ordering.

Product details

The wall socket with a glass frame combines practicality with aesthetics. You can now have Schuko sockets and media sockets on the same frame and mount it directly in the wall, avoiding unsightly cables.

Improvements over the previous series:

→ More powerful and robust chip – made in Japan
→ Reduced stand-by power consumption
→ Compact design (smaller dimensions than the previous model)

Highlights

A Variety of Products

Simple design, extraordinary mechanism. The Livolo triple socket with blank features a glass frame and combines 2 Schuko sockets with TV and Internet outlets, built to the Italian standard in a 6-7 module format.

2 Schuko sockets
TV socket
Internet socket
Blank module
Italian standard, 6-7 modules
Glass frame

New Series

Part of the new Livolo C9 socket range.

Durable Glass Panel

The panel is made from high-quality glass that resists scratches and high temperatures. It does not fade, so the elegant design stays intact.

Scratch-resistant
Resistant to high temperatures
Does not discolour

Power Socket Wiring

Follow the wiring diagram to connect the power sockets.

Neutral line
Live (supply) line
Earth line

Internet Socket Wiring

1. Strip 20 mm of the cable insulation.
2. Remove the dust protection cover.
3. Insert the wires into the corresponding slots according to the wire colours.
4. Fit the protective cap.

TV Socket Wiring

1. Strip 15 mm from the outer part of the coaxial cable and fold back the wire braid around the cable.
2. Strip 15 mm of the insulation from the middle of the cable and insert the metal ring.
3. Insert the braided wire and insulation joint, then use pliers to crimp the metal sleeves to secure them.
4. Screw the wired connector into the TV socket.

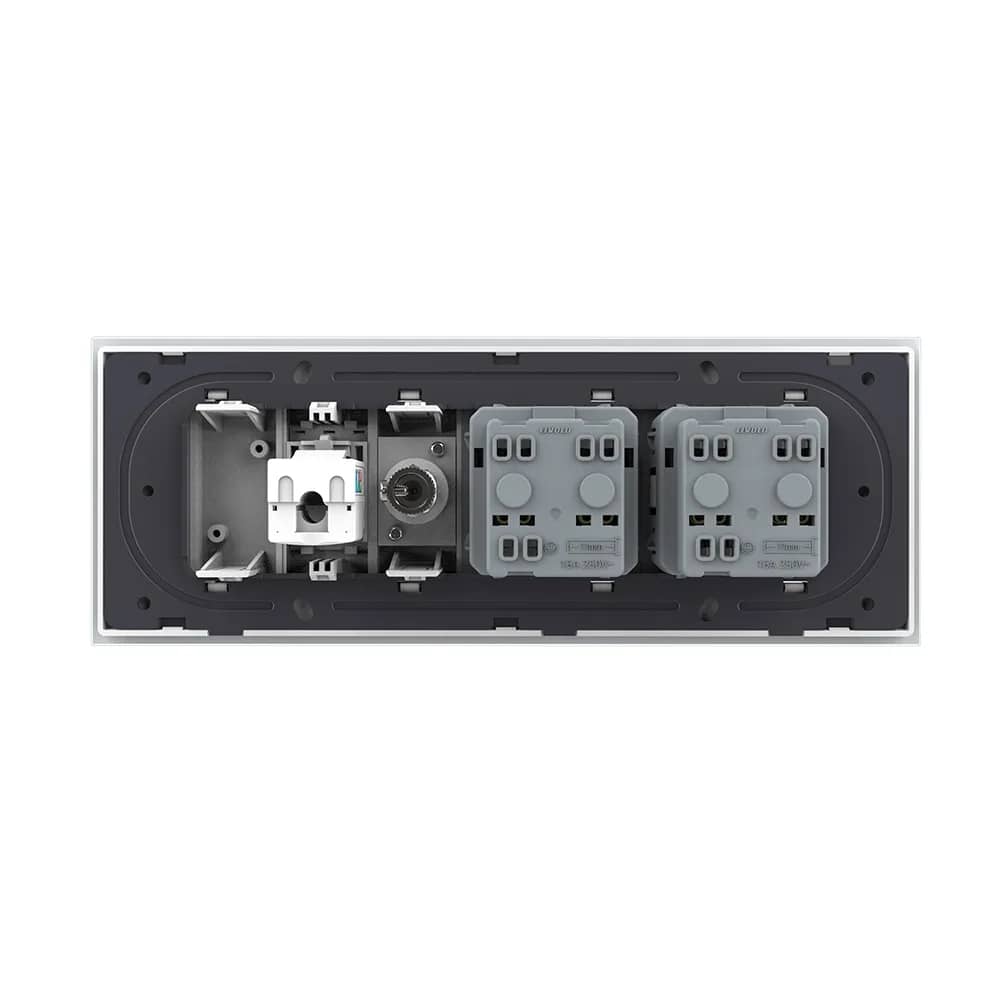

Structure

Elegant crystal panel
Socket modules
Metal frame
Screw fixing system: 102 mm spacing

Dimensions

Width: 210 mm
Height: 78 mm
Glass panel thickness: 4 mm
Depth: 30 mm
Frame: 8 mm

Installation Steps

1. Open the package.
2. Connect the cables and tighten the screws.
3. Use the 4 screws to fix the frame.
4. Fit the front panel – it clicks into place.
