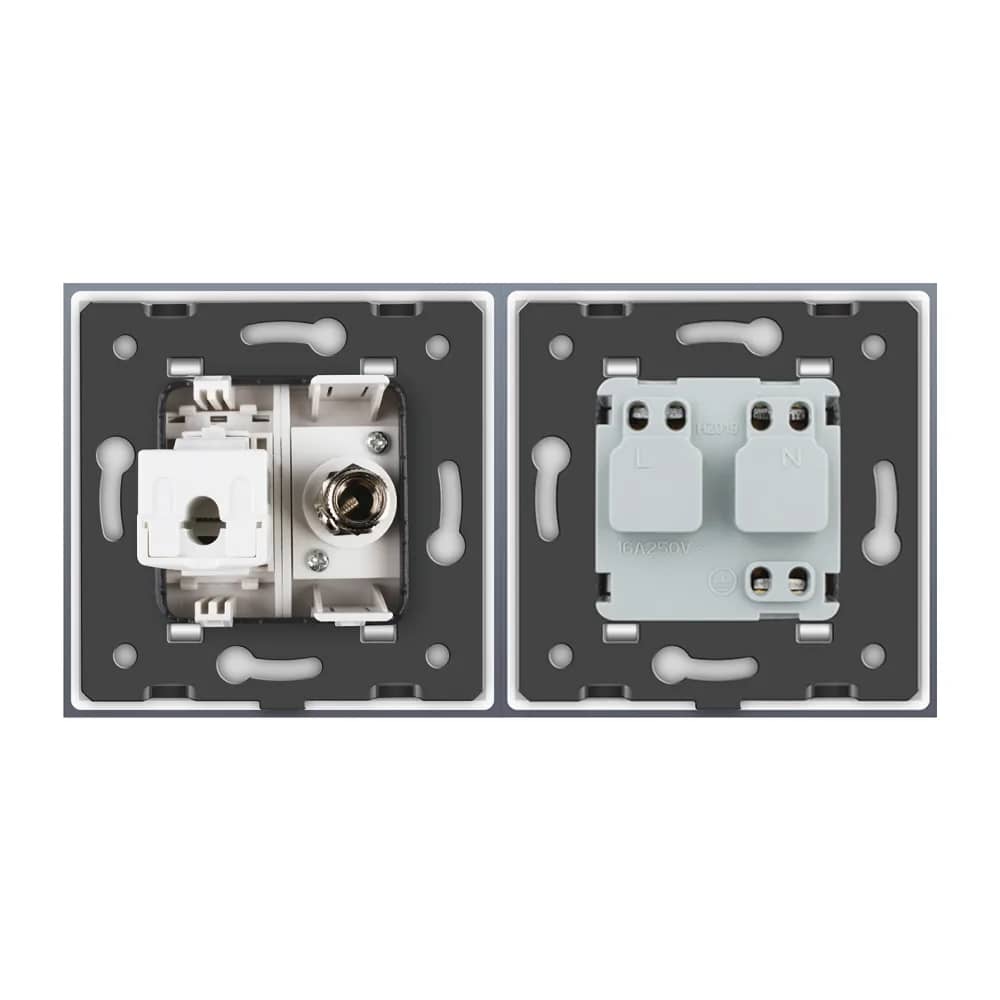

Livolo Glass Frame Double Wall Socket – 1 Schuko Socket + TV/Internet Media Socket – White — image 3

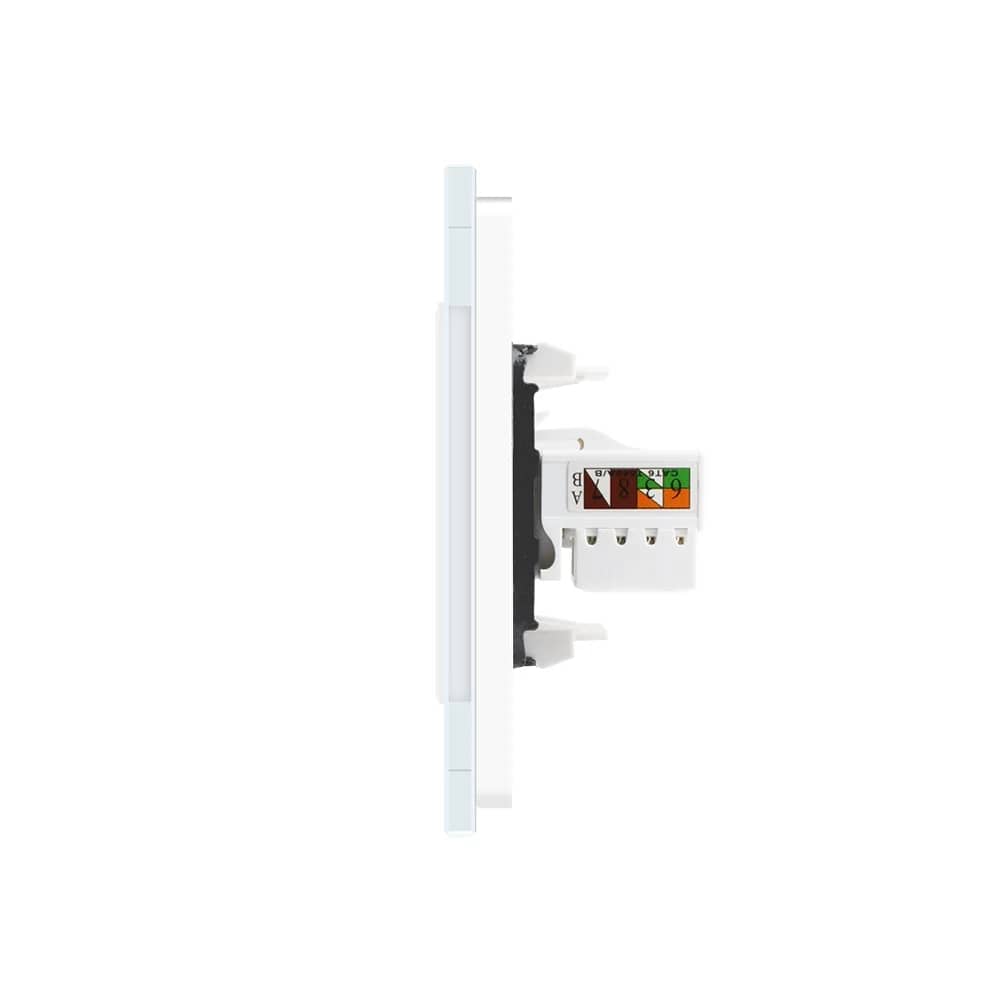

Livolo Glass Frame Double Wall Socket – 1 Schuko Socket + TV/Internet Media Socket – White — image 4
1/4
Livolo

Livolo Glass Frame Double Wall Socket – 1 Schuko Socket + TV/Internet Media Socket

SKU: VL-C7C2EU/VC-11

AED 89

In stock

Colour: White
1
  • Delivery across all seven emirates. Free on orders over AED 750.
  • Order now, we confirm availability and delivery with you before you pay.

Livolo double wall socket with tempered-look glass frame combining a Schuko power socket and a TV/internet media socket.

Plug type: this socket is the European Schuko type (CEE 7/3). Most UAE homes use BS 1363 (Type G) sockets — please check that it suits your installation and appliances, or ask us before ordering.

Product details

The wall socket with a glass frame combines practicality with elegant design. You can now have Schuko sockets and media sockets on the same frame and install it directly into the wall, avoiding unsightly cables.

Highlights

Livolo Glass Frame Double Wall Socket – 1 Schuko Socket + TV/Internet Media Socket – Outstanding Quality
01

Outstanding Quality

Model VL-C7C2EU/VC combines a simple design with an exceptional mechanism. Every detail has been given special attention.

  • Schuko socket plus combined TV and internet media socket on one double frame
  • Available in several glass panel colours
Livolo Glass Frame Double Wall Socket – 1 Schuko Socket + TV/Internet Media Socket – Always Like New
02

Always Like New

The product keeps its distinctive appearance over time.

Livolo Glass Frame Double Wall Socket – 1 Schuko Socket + TV/Internet Media Socket – Durable Glass
03

Durable Glass

The glass is hard enough to stand the test of time.

Livolo Glass Frame Double Wall Socket – 1 Schuko Socket + TV/Internet Media Socket – Structure
04

Structure

  • Crystal glass panel
  • Device function modules
  • Metal frames
Livolo Glass Frame Double Wall Socket – 1 Schuko Socket + TV/Internet Media Socket – Technical Data
05

Technical Data

  • Width: 151 mm
  • Height: 80 mm
  • Panel thickness: 4 mm
  • Depth: 33 mm
  • Module depth: 27 mm
  • Frame depth: 8 mm
  • Socket rating: 16A 250V~
  • Screw fixing spacing: 60 mm
Livolo Glass Frame Double Wall Socket – 1 Schuko Socket + TV/Internet Media Socket – Installation: Power Socket
06

Installation: Power Socket

Connect the neutral line to N, the live (supply) line to L and the earth line to the earth terminal. The module sits in a polycarbonate holder on a metal frame behind the glass panel, secured with a screw fixing system at 60 mm spacing.

07

Installation: TV/Internet Socket

The media module includes an internet terminal and a TV terminal, mounted on a metal frame behind the glass panel with a screw fixing system at 60 mm spacing.

08

Wiring the Internet Socket

  • Strip 20 mm of insulation from the cable
  • Remove the dust cover
  • Insert the wires into the matching slots according to wire colour
  • Fit the protective cap
09

Wiring the TV Socket

  • Strip 15 mm from the outer sheath of the coaxial cable and fold back the wire braid around the cable
  • Strip 15 mm of the inner insulation and fit the metal ring
  • Insert the connector between the braid and the insulation, then crimp the metal parts with pliers to secure them
  • Screw the wired connector onto the TV socket

In detail

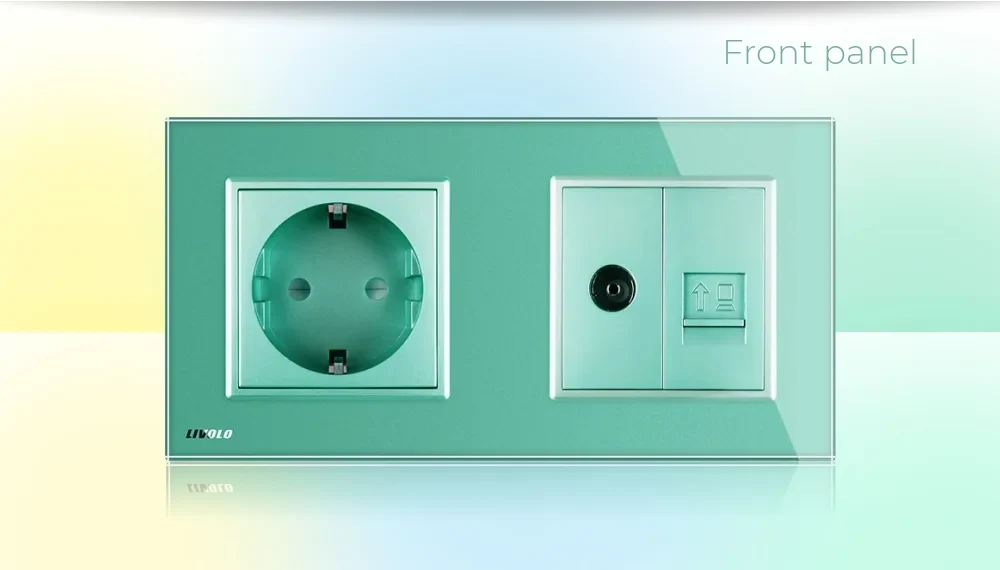

Livolo Glass Frame Double Wall Socket – 1 Schuko Socket + TV/Internet Media Socket – detail 1
