Livolo Quadruple Socket with Glass Frame – 3 Wall Sockets + TV/Internet

Front and Rear Panel

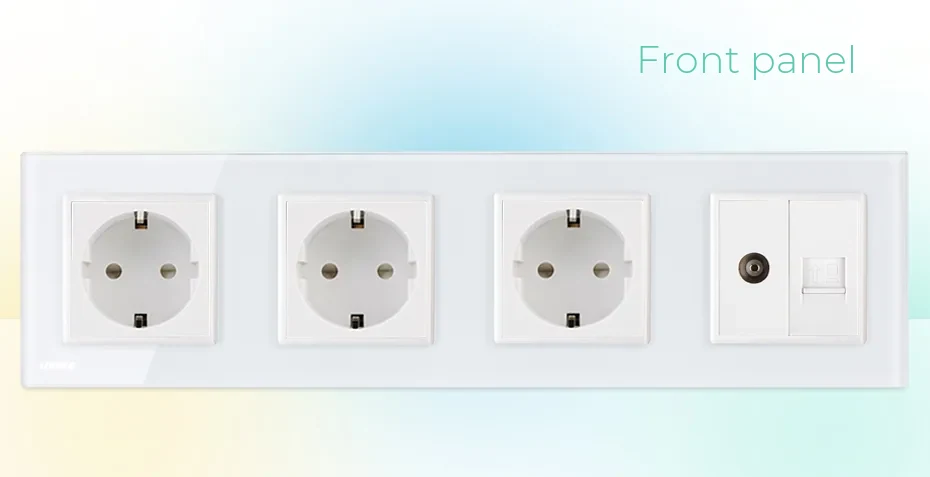

The front panel features three sockets and a TV/internet module behind a glass frame. The rear view shows the socket modules, marked 16A 250V, alongside the TV and internet connectors.

• Socket modules marked 16A 250V

Installation Instructions – Sockets

The wiring diagram shows how the three sockets are connected to the supply lines.

• Neutral line (N)
• Live/supply line (L)
• Earth line

Wiring the Internet Socket

• 1. Strip 20mm of insulation from the cable.
• 2. Remove the dust protection cover.
• 3. Insert the wires into the corresponding slots according to the wire colours (A/B colour codes).
• 4. Fit the protective cap.

Wiring the TV Socket

• 1. Strip 15mm from the outer sheath of the coaxial cable and fold back the wire braid around the cable.
• 2. Strip 12mm of insulation from the centre of the cable and fit the metal ring.
• 3. Insert the connector piece between the braided wire and the insulation, then crimp the metal parts with pliers to secure them.
• 4. Screw the wired connector onto the TV socket.
