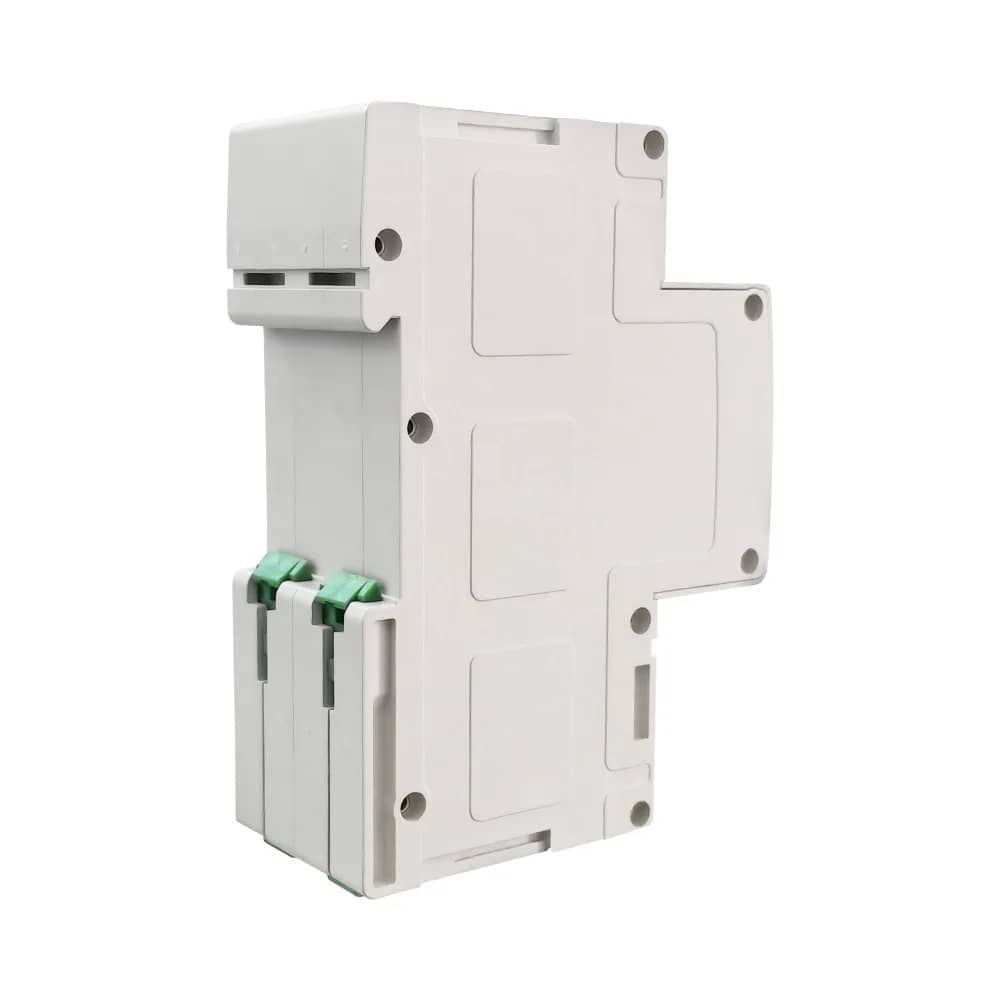

Luxion Wi-Fi Smart Circuit Breaker 63A 2-Pole (1P+N) with Energy Monitoring and App Control – LX-TYRC2P-63SM — image 4

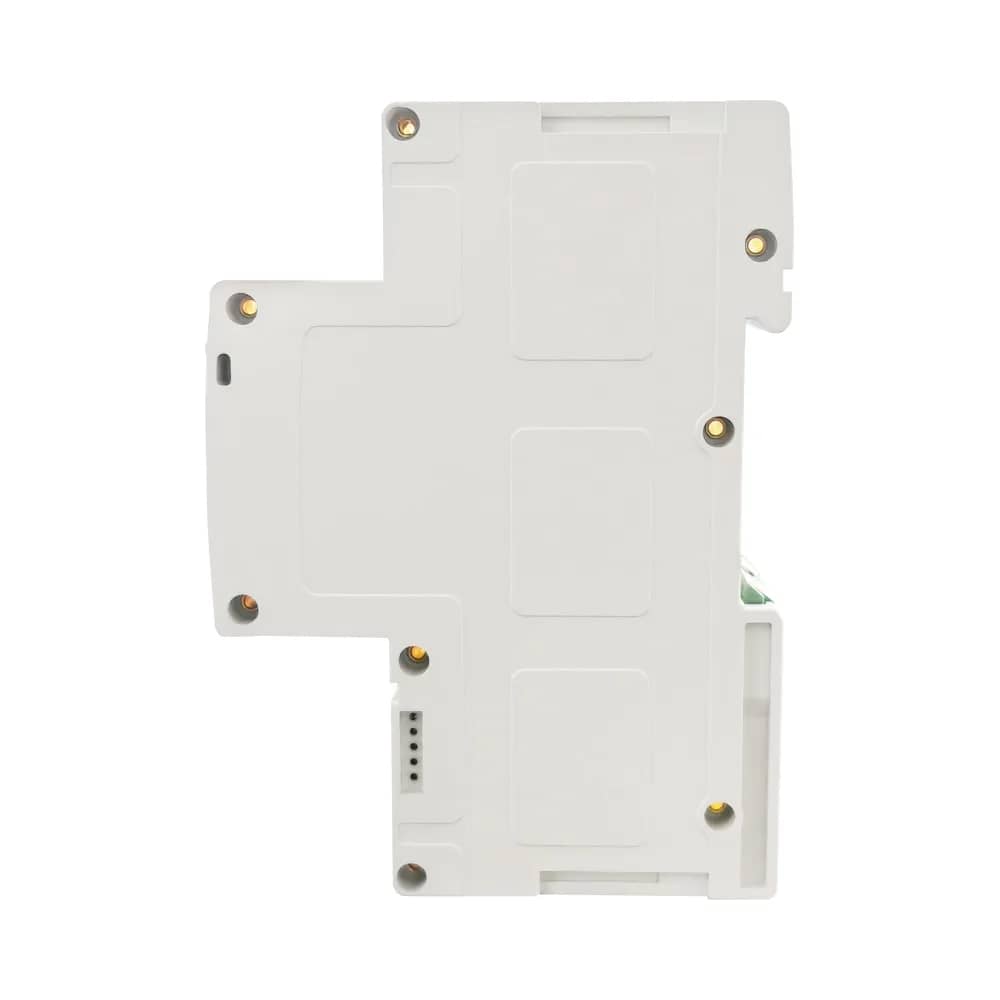

Luxion Wi-Fi Smart Circuit Breaker 63A 2-Pole (1P+N) with Energy Monitoring and App Control – LX-TYRC2P-63SM — image 5
1/5
Luxion

Luxion Wi-Fi Smart Circuit Breaker 63A 2-Pole (1P+N) with Energy Monitoring and App Control – LX-TYRC2P-63SM

SKU: LX-TYRC2P-63SM

AED 202

In stock

1
  • Delivery across all seven emirates. Free on orders over AED 750.
  • Order now, we confirm availability and delivery with you before you pay.

Luxion 63A 2-pole (1P+N) Wi-Fi circuit breaker with energy monitoring, remotely controlled from the Smart Life / Tuya app.

Product details

The Luxion automatic circuit breaker is used to command and control lighting circuits remotely. The product is compatible with Luxion light switches and allows direct control from the Smart Life / Tuya mobile app.

Highlights

Luxion Wi-Fi Smart Circuit Breaker 63A 2-Pole (1P+N) with Energy Monitoring and App Control – LX-TYRC2P-63SM – Wi-Fi Smart Switch with Energy Monitoring
01

Wi-Fi Smart Switch with Energy Monitoring

A DIN-rail Wi-Fi smart switch rated In: 63A, with indicators for energy (kW·h), power (W), current (A) and voltage (V).

  • Rated current In: 63A
  • Rated voltage Ue: 230V, 50/60Hz
  • Wi-Fi signal indicator
  • Green power button on the front
  • Indicator light: always ON when switched on, OFF when switched off
  • CE marking
Luxion Wi-Fi Smart Circuit Breaker 63A 2-Pole (1P+N) with Energy Monitoring and App Control – LX-TYRC2P-63SM – Wiring
02

Wiring

Connect the 230V supply to the top INPUT terminals and the load to the bottom OUTPUT terminals.

  • Input (top): N and L, 230V
  • Output (bottom): N and L, 230V
Luxion Wi-Fi Smart Circuit Breaker 63A 2-Pole (1P+N) with Energy Monitoring and App Control – LX-TYRC2P-63SM – Wi-Fi Pairing
03

Wi-Fi Pairing

  • Quick flash: ready for pairing directly
  • No indicator or slow flash: long press the power button for 10s
  • Pair once the indicator flashes quickly
Luxion Wi-Fi Smart Circuit Breaker 63A 2-Pole (1P+N) with Energy Monitoring and App Control – LX-TYRC2P-63SM – Dimensions
04

Dimensions

  • Height: 100mm
  • Depth: 67mm
  • Width at front section: 50mm
  • DIN rail mounting: 35mm
