Luxion

Luxion 4-Channel Wi-Fi Smart Relay with Timer and App Control – LX-R4CH

SKU: LX-R4CH

AED 126

In stock

1
  • Delivery across all seven emirates. Free on orders over AED 750.
  • Order now, we confirm availability and delivery with you before you pay.

Compact Luxion 4-channel Wi-Fi relay to control lights and appliances by voice, app or remotely, with on/off timer scheduling.

Product details

The Luxion smart relay offers a compact, modern solution for easily controlling the lighting and electrical appliances in your home. It can be managed by voice, via the mobile app or remotely, giving you greater flexibility and comfort. Its discreet design allows quick installation, while features such as scheduling on/off times add extra efficiency and convenience to everyday use.

Highlights

Luxion 4-Channel Wi-Fi Smart Relay with Timer and App Control – LX-R4CH – Wiring Diagram – Luxion 4-Channel Relay
01

Wiring Diagram – Luxion 4-Channel Relay

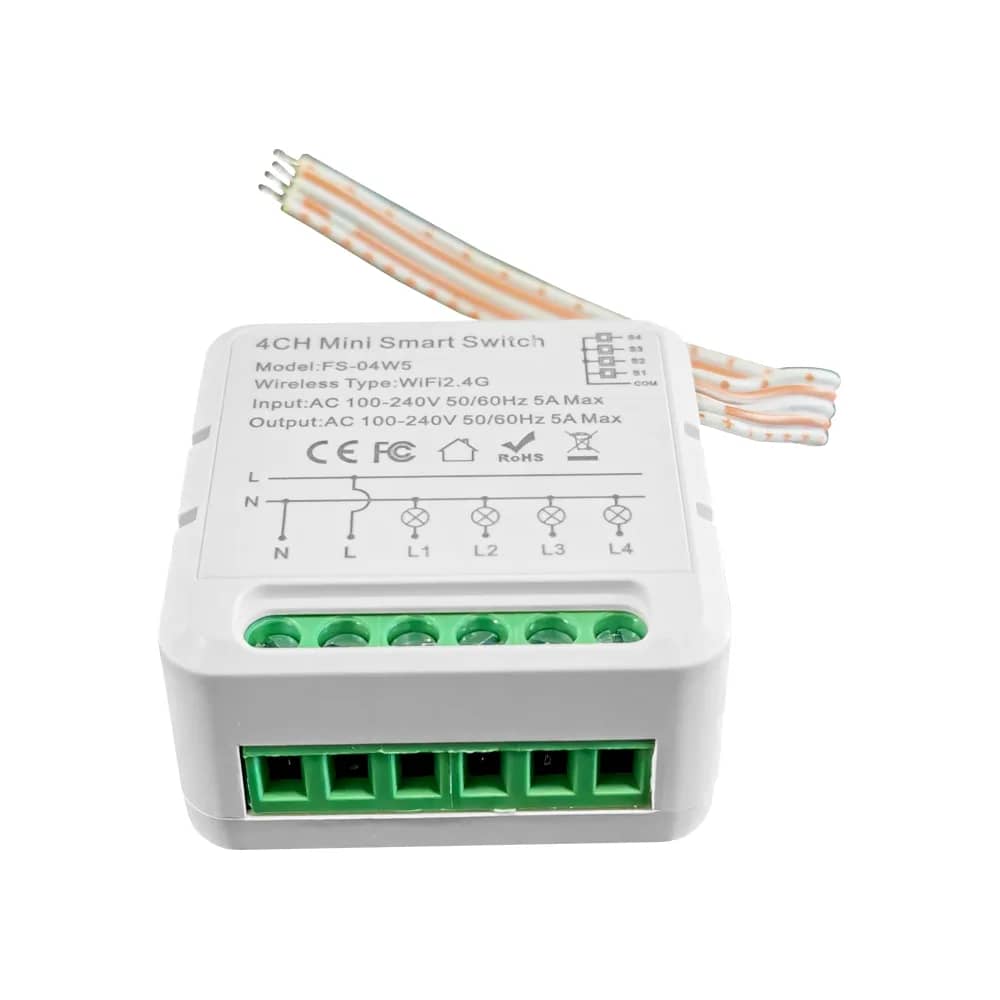

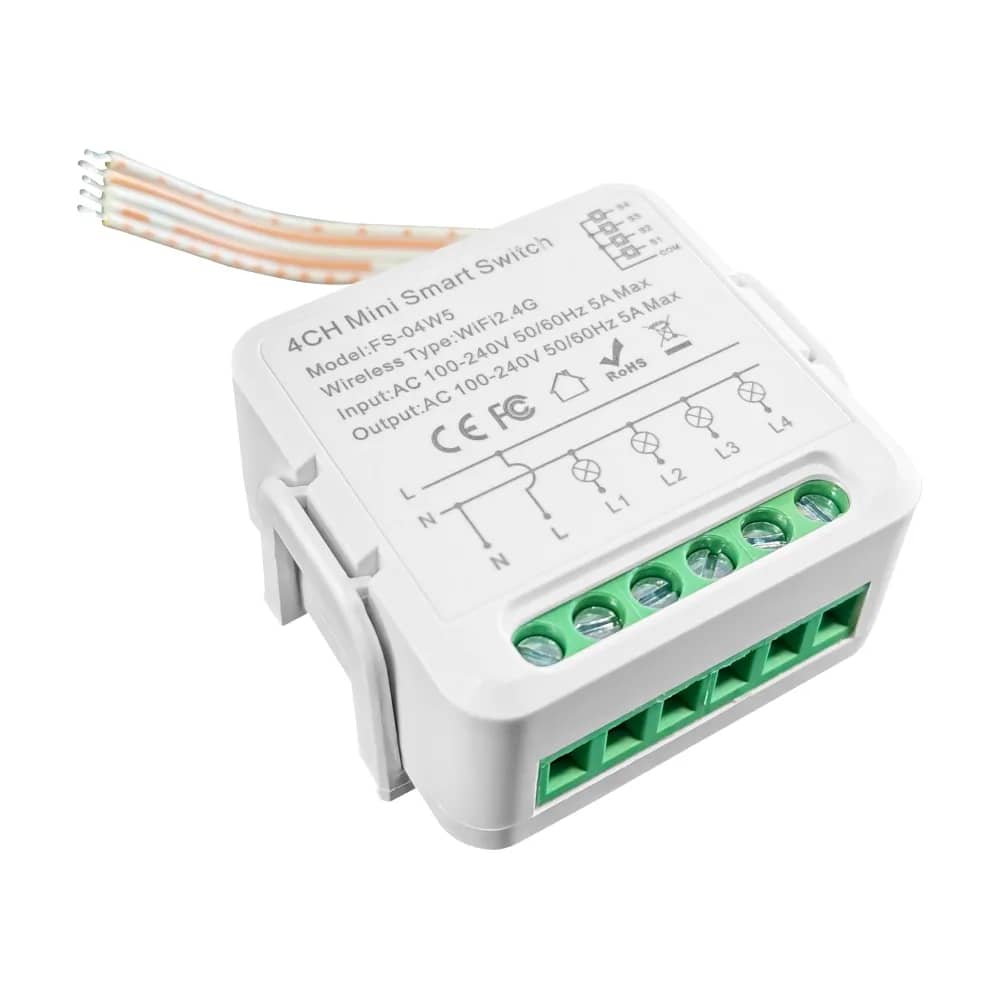

The relay connects to a ~220V supply via the N (neutral) and L (live) terminals and switches up to four separate loads through outputs L1, L2, L3 and L4.

  • Power input: ~220V, terminals N and L
  • Outputs: L1, L2, L3, L4 – one per channel
  • Each load connects between its output terminal and neutral (N)
Luxion 4-Channel Wi-Fi Smart Relay with Timer and App Control – LX-R4CH – External Switch Control
02

External Switch Control

Optional external switches can be connected to the relay's control wires for manual operation of each channel.

  • Control inputs: S1, S2, S3, S4 – one per channel
  • Common wire: Com
