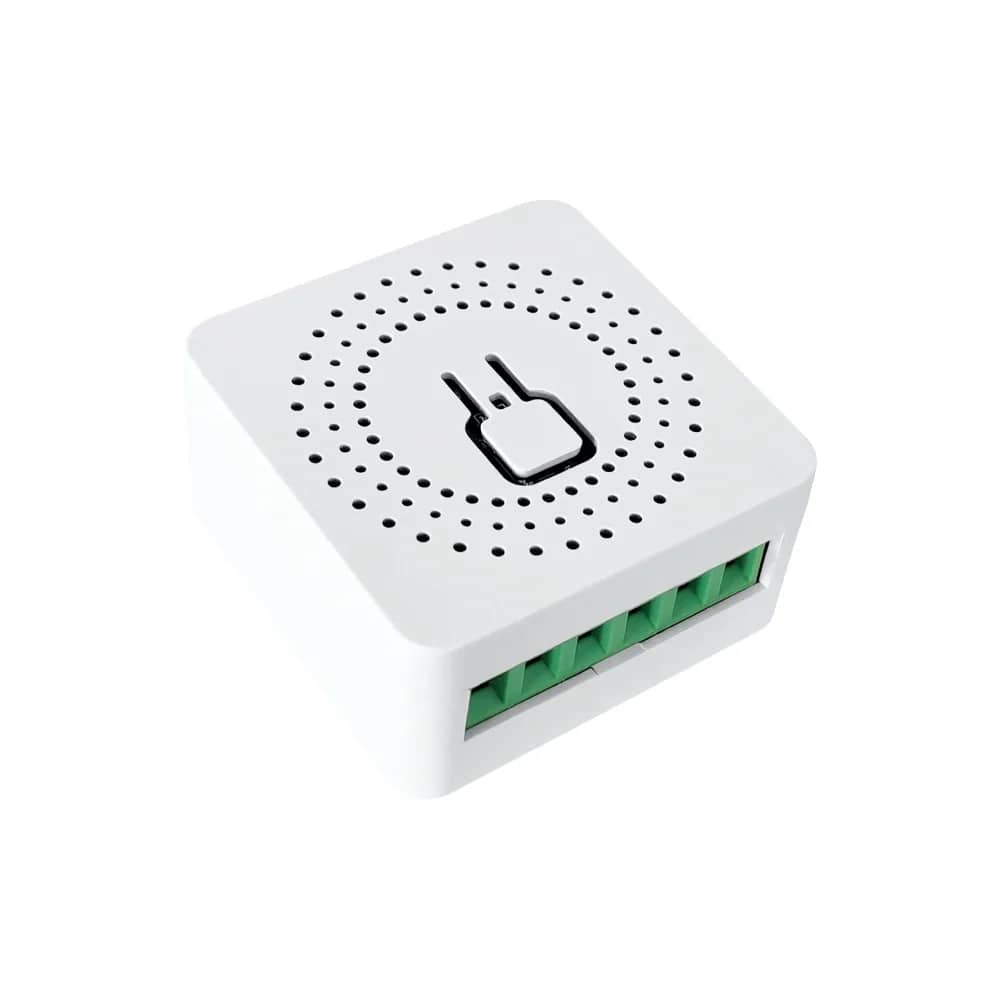

Luxion Mini Smart Double Relay – LX-WF-TDQ-AY2G — image 3
Luxion Mini Smart Double Relay – LX-WF-TDQ-AY2G — image 4
Luxion Mini Smart Double Relay – LX-WF-TDQ-AY2G — image 5
Luxion Mini Smart Double Relay – LX-WF-TDQ-AY2G — image 6
1/6
Luxion

Luxion Mini Smart Double Relay – LX-WF-TDQ-AY2G

SKU: LX-WF-TDQ-AY2G

AED 40

In stock

1
  • Delivery across all seven emirates. Free on orders over AED 750.
  • Order now, we confirm availability and delivery with you before you pay.

Luxion Mini Smart Wi-Fi double relay for 2 standard 1 gang switches, with timer, last-status memory and normal or pulse relay modes.

Product details

Two standard 1 gang light switches can be connected to the relay. It features a timer function, last-status memory setting and relay mode setting (normal, pulse).

Highlights

Luxion Mini Smart Double Relay – LX-WF-TDQ-AY2G – Luxion Mini Smart Double Relay
01

Luxion Mini Smart Double Relay

A compact two-channel smart relay that lets you control two separate circuits, such as lights or fans, from your phone or by voice.

  • Control via mobile app
  • Wi-Fi connection
  • Scheduling
  • Voice control
Luxion Mini Smart Double Relay – LX-WF-TDQ-AY2G – App and Voice Assistant Compatibility
02

App and Voice Assistant Compatibility

Works with the Smart Life app and is compatible with Amazon Alexa, Google Assistant and IFTTT.

  • Smart Life app control
  • Amazon Alexa
  • Google Assistant
  • IFTTT
Luxion Mini Smart Double Relay – LX-WF-TDQ-AY2G – Wiring Diagram
03

Wiring Diagram

The relay connects to live and neutral inputs and provides two switched outputs. Existing wall switches can be connected to the K1 and K2 terminals. It can be used to control lights or fans.

  • L-in: live input
  • N-in: neutral input
  • L1: output 1 (L1 out)
  • L2: output 2 (L2 out)
  • K1, K2: wall switch inputs
Luxion Mini Smart Double Relay – LX-WF-TDQ-AY2G – Technical Data
04

Technical Data

  • Wi-Fi: IEEE802.11 b/g/n 2.4GHz
  • Input: AC 100-240V 50/60Hz 16A Max
  • Output: AC 100-240V 50/60Hz 16A Max
  • Channels: 2
  • Dimensions: 40 mm x 40 mm x 20 mm
