Luxion Mini Kinetic Relay – 10A, 110-250V (LX-QR01)

SKU: LX-QR01

AED 41

In stock

1
  • Delivery across all seven emirates. Free on orders over AED 750.
  • Order now, we confirm availability and delivery with you before you pay.

Compact Luxion Mini Kinetic relay rated 10A, 250V AC, fits a 45 mm deep back box and works with Luxion kinetic remote controls.

Product details

The Mini Kinetic smart relay has a maximum current of 10A, 250V AC, resistive load. The product is compatible with Luxion panels and can be installed in a back box with a depth of 45 mm.

Compatible only with Luxion kinetic (self-powered) remote controls.

Highlights

Luxion Mini Kinetic Relay – 10A, 110-250V (LX-QR01) – Self-Generating Wireless Kinetic Energy Switch
01

Self-Generating Wireless Kinetic Energy Switch

A compact mini smart switch receiver that works with self-generating wireless kinetic energy switches to control your lighting.

  • Model: 305JS
  • Rated: AC 110-250V, 10A, 50/60Hz
  • CE and RoHS marked
Luxion Mini Kinetic Relay – 10A, 110-250V (LX-QR01) – Wiring Diagram
02

Wiring Diagram

Connect the mains supply to the INPUT terminals and the light fitting to the OUTPUT terminals.

  • INPUT L: live wire
  • INPUT N: neutral wire
  • OUTPUT L: to the lamp's live connection
  • OUTPUT N: to the lamp's neutral connection
Luxion Mini Kinetic Relay – 10A, 110-250V (LX-QR01) – Installation
03

Installation

Small enough to fit inside a standard wall back box behind your existing switch or fitting.

  • Required back box depth: ≥ 45mm

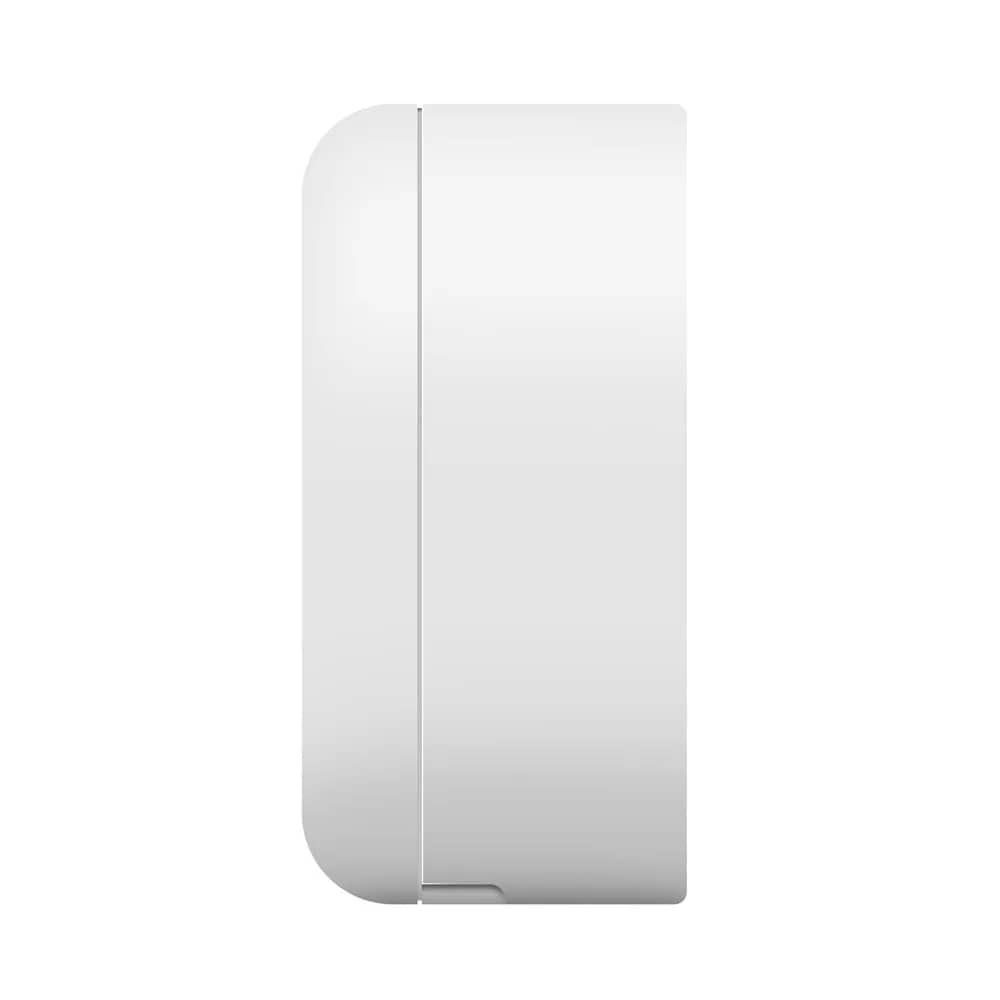

Luxion Mini Kinetic Relay – 10A, 110-250V (LX-QR01) – Technical Data
04

Technical Data

  • Model: 305JS
  • Input: AC 100-240V 50/60Hz
  • Output: AC 100-240V 50/60Hz
  • Rated current: 10A
  • Dimensions: 49mm x 48mm x 23mm
  • Terminals: L in, L out, N in, N out
