01
Touch Sensor
The touch sensor is extremely precise, just like the sensor on a smartphone.
Luxion
Luxion Series A 2 Gang 2-Way / Intermediate Light Switch + Socket with Glass Frame
SKU: LX-MT-A202/MP010-W
AED 112
In stock
1
- Delivery across all seven emirates. Free on orders over AED 750.
- Order now, we confirm availability and delivery with you before you pay.
Luxion Series A 2 gang 2-way/intermediate light switch with wall socket in a sleek glass frame, available in White, Black, Grey and Gold.
Product details
Luxion Series A 2 gang 2-way (staircase) / intermediate light switch + socket with glass frame, featuring a compact, elegant and minimalist design. The structure is durable and the products do not fade over time. It is a practical product, made from quality, long-lasting materials, bringing functionality and comfort to your home.
Highlights
02

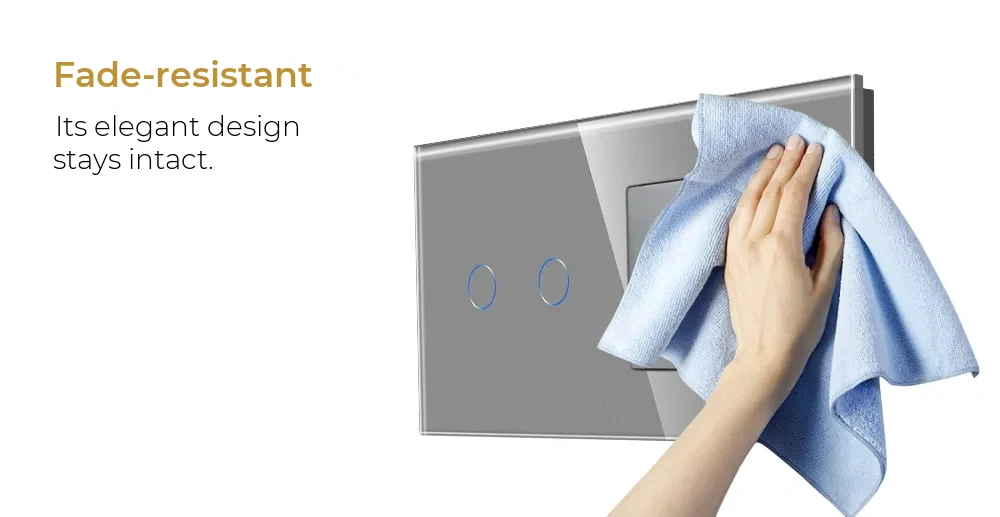

Colour-Fast Design
The panel does not discolour, so its elegant design stays intact.
03
Installation Steps
- 1. Open the package.
- 2. Connect the wires and tighten the screws.
- 3. Use the screws to secure the frame.
- 4. Fit the front panel (it clicks into place).
04
Wiring Diagrams
The banners show wiring diagrams for 2-way (two-switch) and intermediate (three-switch) configurations on a ~220V supply, using terminals L, L1, L2 and the 'Cap Scara' (2-way) terminal L4. Always switch off the power supply during installation or removal.
05
Technical Data (2-Way Switch Module)
- Power supply: 90V ~ 250V
- Load: 600W / channel – resistive
- Operating temperature: -20°C ~ +70°C
- Frequency: 50/60Hz
- Standby consumption: 0.02W
- Humidity: 10% ~ 93%
- Markings: UKCA, CE, RoHS
In detail
