Compact, Elegant and Minimalist Design
Luxion double touch switch and socket with a glass frame. Enjoy the versatility of the new Luxion switches.
Luxion
Luxion 2 Gang Light Switch + Socket with Glass Frame
SKU: LX-ST-201/MP010-W
AED 80
In stock
1
- Delivery across all seven emirates. Free on orders over AED 750.
- Order now, we confirm availability and delivery with you before you pay.
Luxion 2 gang light switch and wall socket with a glass frame – compact, elegant, minimalist design in White, Gold, Grey or Black.
Product details
Luxion 2 gang light switch + socket with glass frame, featuring a compact, elegant and minimalist design. The structure is durable and the products do not fade over time. It is a practical product, made from quality, long-lasting materials, bringing functionality and comfort to your home.
Highlights
02
Touch Sensor
The touch sensor is extremely precise, just like the sensor on a smartphone.
03
Does Not Discolour
The elegant design stays intact.
04
Structure
- Glass panel
- Switch + socket module
- Metal frame
05
Wiring Diagram
The socket connects to live (L), earth and neutral (N). The switch module connects to live (L) and supplies the two lights via outputs L1 and L2; the lights connect back to neutral (N).
- Neutral (N)
- Earth line
- Live (L)
- Switch terminals: L3, L2, L1, L
06
Installation Steps
- 1. Open the package.
- 2. Connect the wires and tighten the screws.
- 3. Use the screws to fix the frame.
- 4. Fit the front panel (click into place).
07

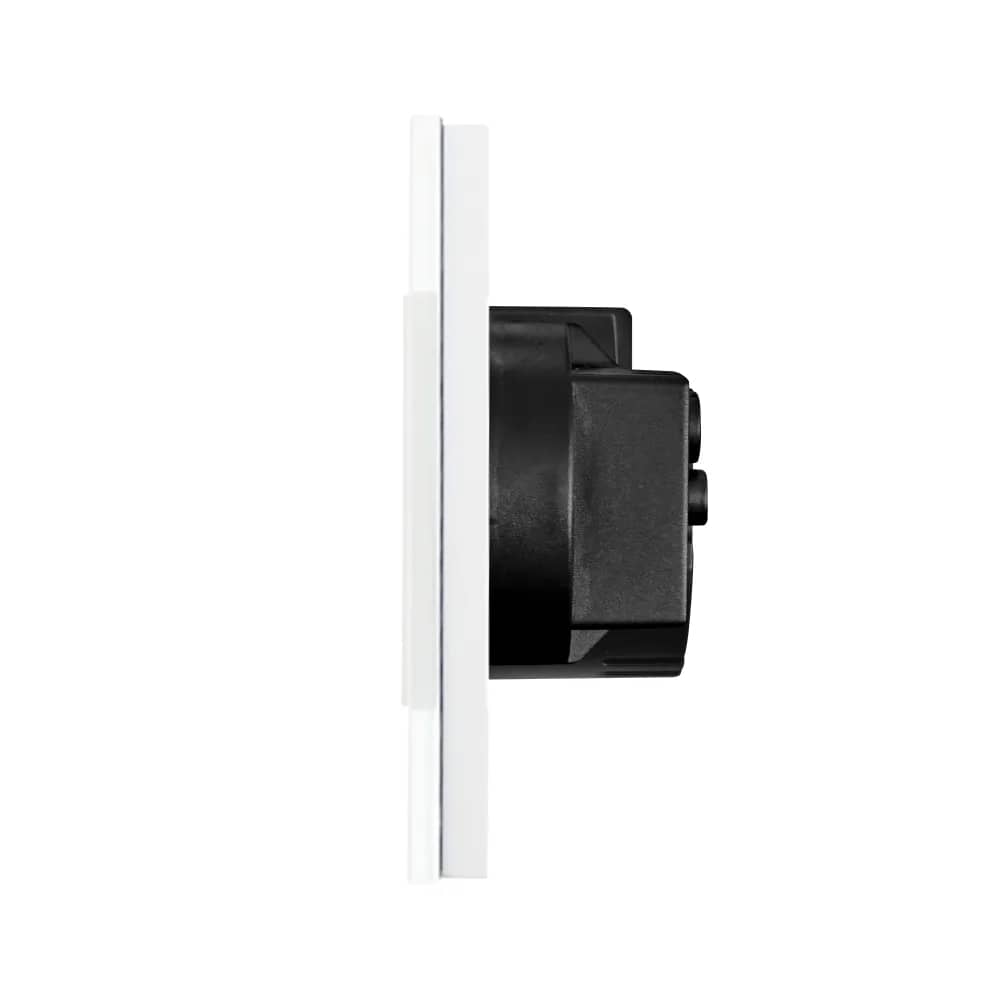

Dimensions
- Width: 157 mm
- Height: 86 mm
- Panel thickness: 9 mm
- Module depth: 26 mm
- Module height: 49 mm
- Screw mounting spacing: 130 mm and 60 mm
08
Technical Data (Switch Module Label)
- Type: 1 way Touch Switch
- Rated operational voltage: 110V ~ 240V AC
- Capability allowance: -15% ~ +10%
- Load power: 3-300W max for LED lamp; 500W for resistive load
- Working temperature: -20°C ~ +70°C
- Relative humidity: 10% ~ 93% (non-condensing)
- Operating frequency: 50/60Hz
- Energy consumption: 0.02W
- Socket rating: 16A 250V~
