Compact, Elegant and Minimalist Design
Luxion single switch + socket with glass frame. Enjoy the versatility of the new Luxion switches.
Luxion
Luxion Glass Frame 1 Gang Light Switch + Socket
SKU: LX-ST-101/MP010-W
AED 74
In stock
1
- Delivery across all seven emirates. Free on orders over AED 750.
- Order now, we confirm availability and delivery with you before you pay.
Compact, elegant Luxion 1 gang light switch and socket combination with a glass frame, available in White, Black, Grey and Gold.
Product details
The Luxion 1 gang light switch + socket with glass frame stands out for its compact, elegant and minimalist design. The structure is durable and the products do not fade over time. It is a practical product, made from quality, long-lasting materials, bringing functionality and comfort to your home.
Highlights
02
Touch Sensor
The touch sensor is extremely precise, identical to the sensor of a smartphone.
03
Does Not Discolour
The elegant design stays intact.
04
Wiring Diagram
The socket connects to phase (L), earth and neutral (N). The 1-way touch switch connects to phase (L) at terminal L, with the lamp connected to terminal L1 and to neutral (N).
- Phase (L)
- Neutral (N)
- Earth line
05

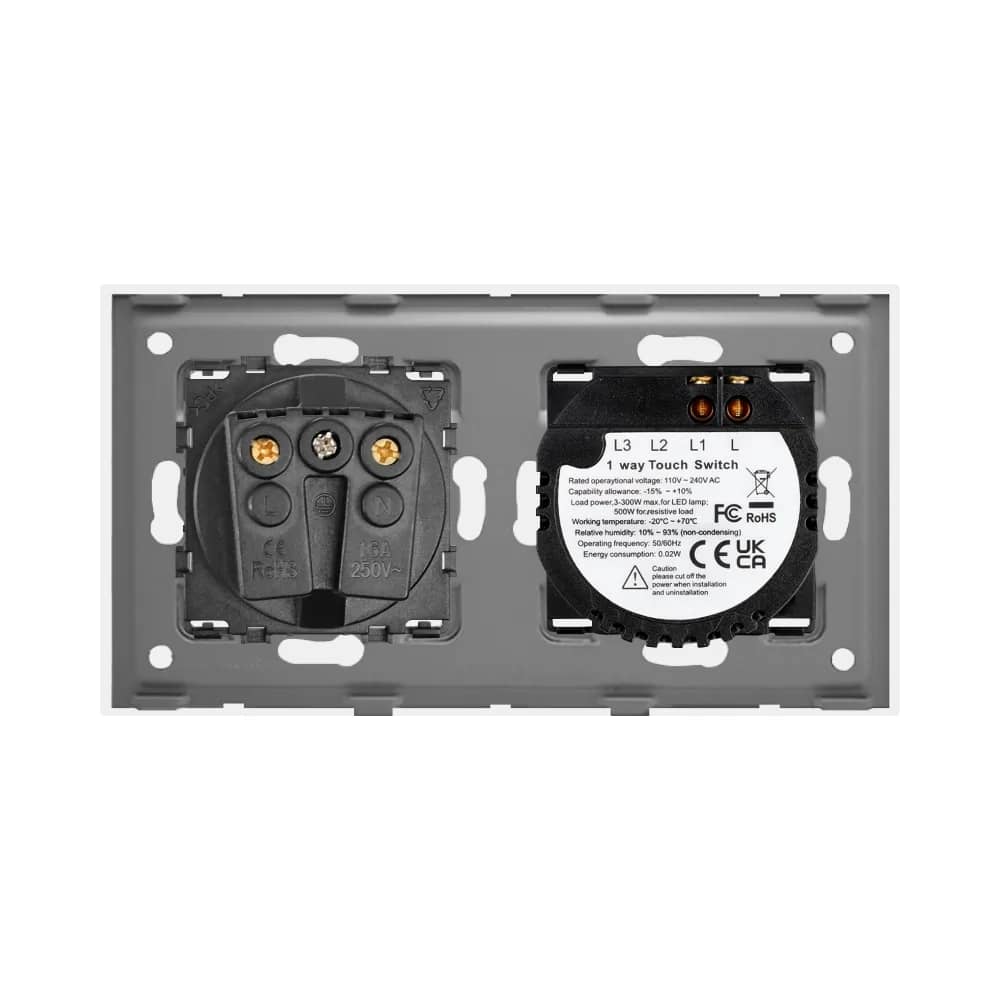

Technical Data (Switch Module Label)
- Type: 1 way Touch Switch
- Rated operational voltage: 110V ~ 240V AC
- Capability allowance: -15% ~ +10%
- Load power: 3-300W max. for LED lamp; 500W for resistive load
- Working temperature: -20°C ~ +70°C
- Relative humidity: 10% ~ 93% (non-condensing)
- Operating frequency: 50/60Hz
- Energy consumption: 0.02W
- Socket rating: 16A 250V~
- Markings: FC, CE, UKCA, RoHS
06

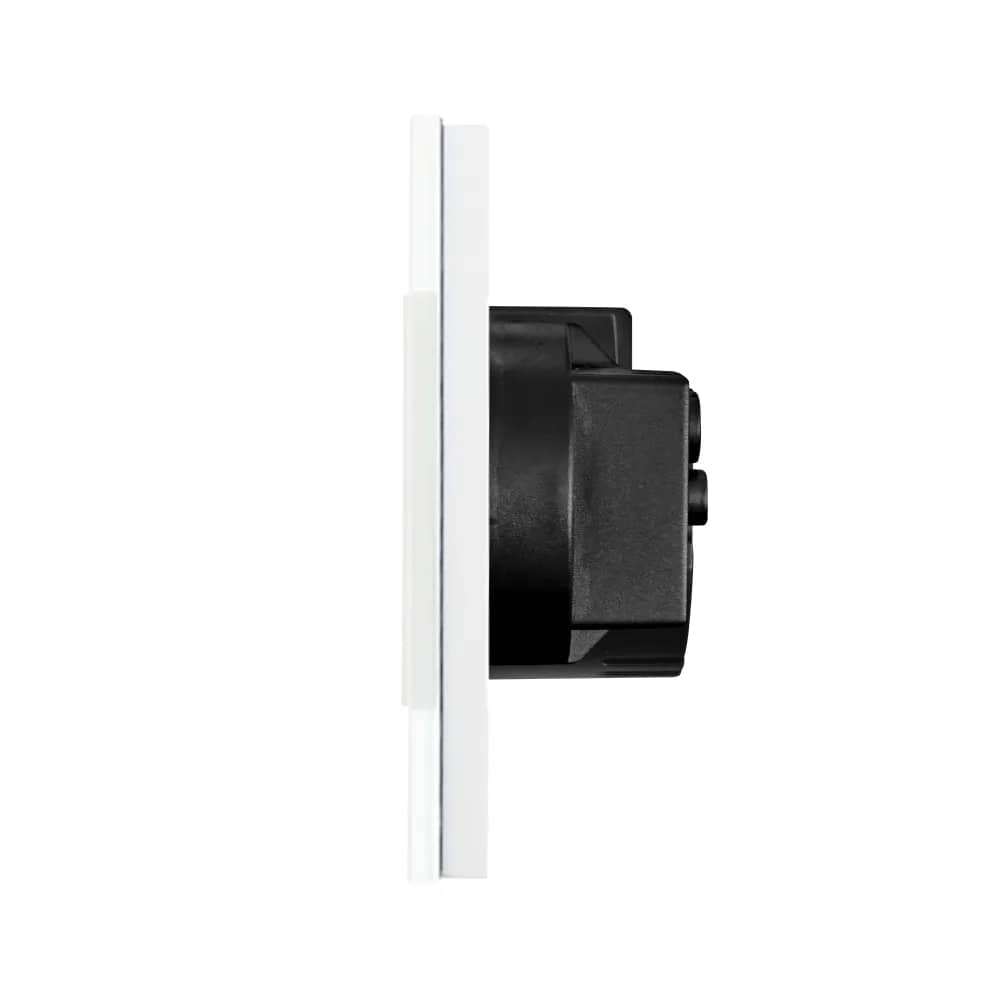

Structure
The unit consists of three parts.
- Glass panel
- Switch + socket module
- Metal frame
07
Dimensions
- Panel: 157 mm x 86 mm
- Glass panel thickness: 9 mm
- Module depth: 26 mm
- Module height: 49 mm
- Screw fixing distance: 60 mm and 130 mm
08
Installation Steps
- 1. Open the package.
- 2. Connect the wires and tighten the screws.
- 3. Use the screws to fix the frame.
- 4. Fit the front panel (it clicks into place).
