Compact, Elegant and Minimalist Design
Triple light switch and socket combined in a single glass frame. Enjoy the versatility of the new Luxion switches.
Luxion
Luxion Glass Frame 3 Gang Light Switch + Socket
SKU: LX-ST-301/MP010-W
AED 86
In stock
1
- Delivery across all seven emirates. Free on orders over AED 750.
- Order now, we confirm availability and delivery with you before you pay.
Compact, elegant Luxion 3 gang light switch with wall socket in a glass frame, available in White, Black, Grey and Gold.
Product details
The Luxion 3 gang light switch + socket with glass frame stands out for its compact, elegant and minimalist design. The structure is durable and the products do not fade over time. It is a practical product, made from quality, long-lasting materials, bringing functionality and comfort to your home.
Highlights
02
Touch Sensor
The touch sensor is extremely precise, just like the sensor on a smartphone.
03
Does Not Discolour
The elegant design stays intact.
04
Structure
- Glass panel
- Switch + socket module
- Metal frame
05
Wiring Diagram
Connect neutral (N), earth and live (L) to the socket. Connect live (L) to the switch terminal L, and the three light circuits to terminals L1, L2 and L3.
- Neutral (N)
- Earth
- Live (L)
- Switch terminals: L3, L2, L1, L
06
Installation Steps
- 1. Open the package.
- 2. Connect the wires and tighten the screws.
- 3. Use the screws to fix the frame.
- 4. Fit the front panel (click).
07
Dimensions
Screw fixing system.
- Width: 157 mm
- Height: 86 mm
- Panel thickness: 9 mm
- Depth behind panel: 26 mm
- Module height: 49 mm
- Fixing hole spacing: 130 mm
- Spacing between modules: 60 mm
08

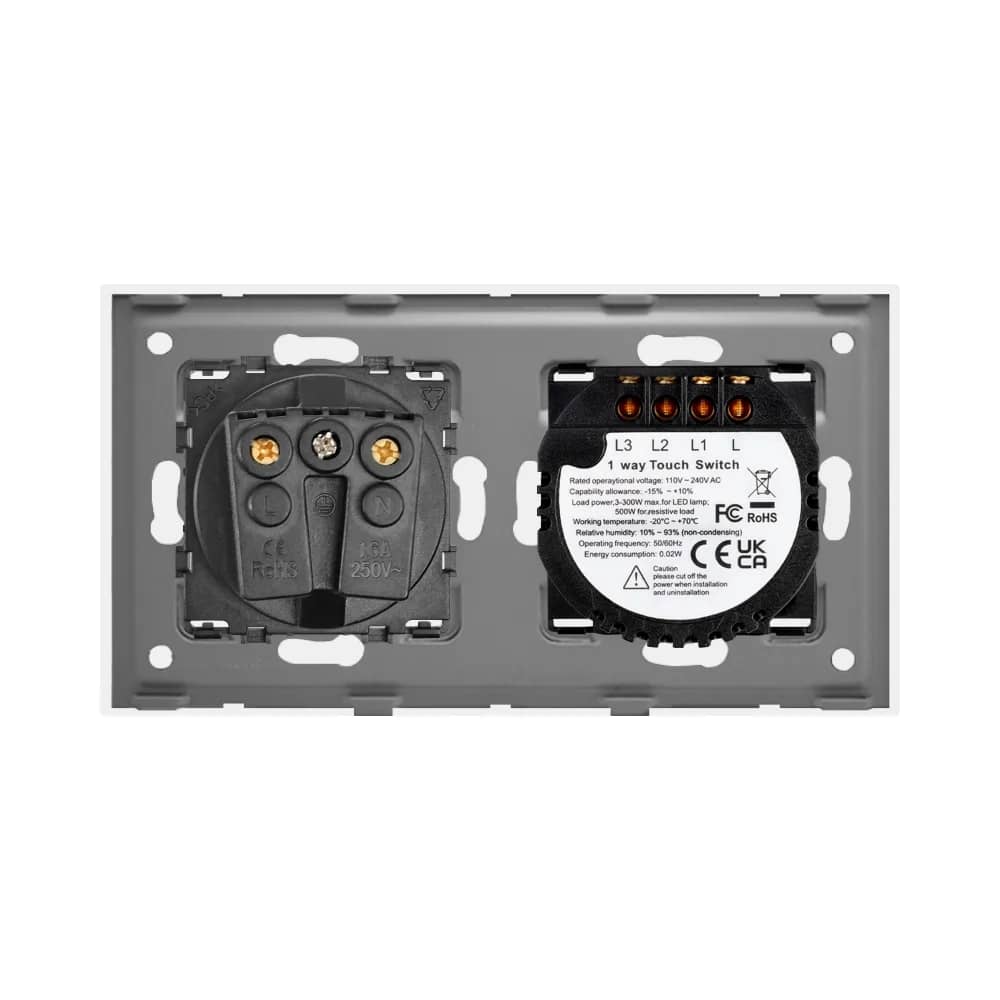

Technical Data (Switch Label)
- Type: 1 way Touch Switch
- Rated operational voltage: 110V ~ 240V AC
- Capability allowance: -15% ~ +10%
- Load power: 3-300W max for LED lamp; 500W for resistive load
- Working temperature: -20°C ~ +70°C
- Relative humidity: 10% ~ 93% (non-condensing)
- Operating frequency: 50/60Hz
- Energy consumption: 0.02W
- Socket rating: 16A 250V~
- Markings: FC, CE, UKCA, RoHS
