01
Touch Sensor
The touch sensor is extremely precise, identical to the sensor found in a smartphone.
Livolo
Livolo Zigbee EC Touch Light Switch Module – 1 Gang 2-Way / Intermediate, New Series
SKU: C7-VL-FC1SZ2-2WP
AED 58
In stock
1
- Delivery across all seven emirates. Free on orders over AED 750.
- Order now, we confirm availability and delivery with you before you pay.
Livolo 1 gang 2-way/intermediate touch switch module with Zigbee EC – control by touch, app via Livolo hub, or voice with Alexa and Google Home.
Product details
The Livolo 1 gang 2-way (staircase) / intermediate module, using the Zigbee EC protocol, is resistant to moisture and dust. It brings extra refinement and comfort to your home.
It can be operated:
– Directly from the switch, on/off by touch;
– From your smartphone via the Livolo app, using the Livolo Zigbee EC Hub (hub sold separately);
– By voice with Google Home or Amazon Alexa. The Livolo Zigbee EC Hub is required as the intermediary between the switch and Google Home or Amazon Alexa.
Highlights
02

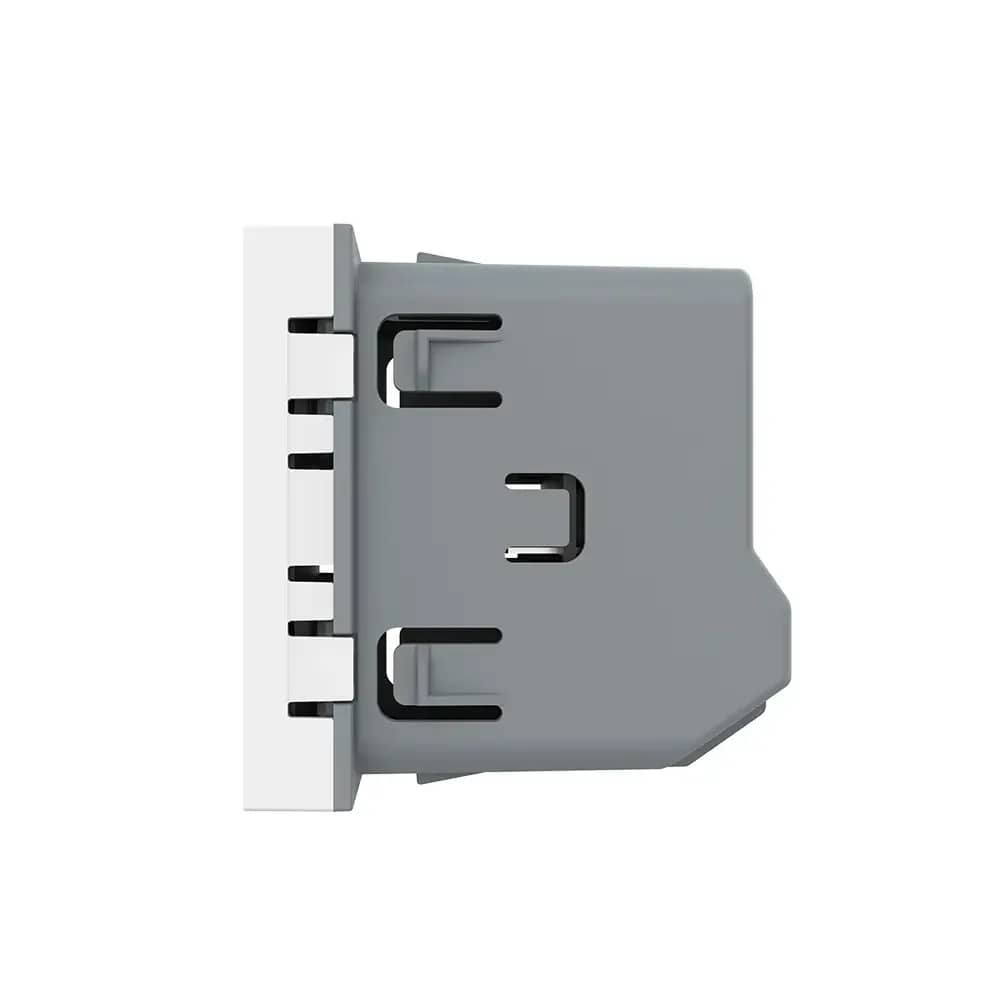

What's in the Box
The glass frame is not included in the package and must be purchased separately.
03

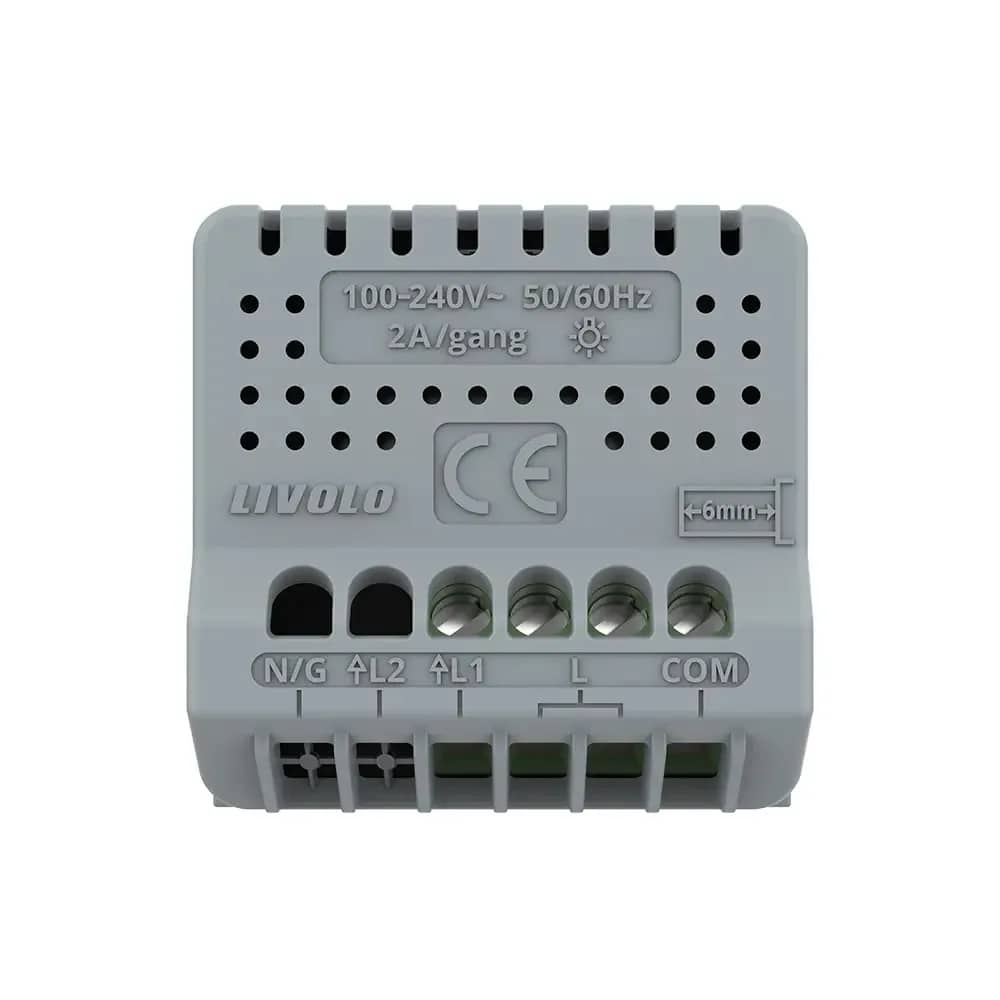

Wiring Diagram
Connect the neutral (N) and live (L) wires to the switch module as shown in the wiring diagram.
- Neutral (N)
- Live (L)
- Terminals: N/G, L2, L1, L, COM
- 100-240V~ 50/60Hz
- 5A/gang, 10A total
04
Installation Steps
- 1. Open the package.
- 2. Connect the wires and tighten the screws.
- 3. Use the 2 screws to fix the frame.
- 4. Fit the front panel until it clicks into place.
