01
A Variety of Products
Simple design, extraordinary mechanism. The glass panel is shown in white, black, grey and gold finishes.
Livolo
Livolo Glass Touch Light Switch – 1 Gang, Italian Standard – New Series (VL-FC1-3WP-11)
SKU: VL-FC1-3WP-11
AED 54
In stock
1
- Delivery across all seven emirates. Free on orders over AED 750.
- Order now, we confirm availability and delivery with you before you pay.
Livolo 1 gang touch light switch with crystal-textured tempered glass frame, Italian standard, LED indicator and 100 ms touch response.
Product details
Livolo 1 gang touch light switch with a glass frame, Italian standard, featuring a crystal texture, light indicator, moisture and scratch resistance, and refinement at its finest.
Livolo switches use a touch sensor with a 100 ms response time, similar to the technology used in smartphones. The switch's glass panel is made of fire-resistant tempered glass. The red/blue LED indicates the on/off status of the switch.
Highlights
02
Touch Sensor
The touch sensor is extremely precise, just like the sensor on a smartphone.
03
No Unnecessary Wiring
The new Livolo switches ensure quick and easy installation.
- Live (L)
- Neutral (N)
04

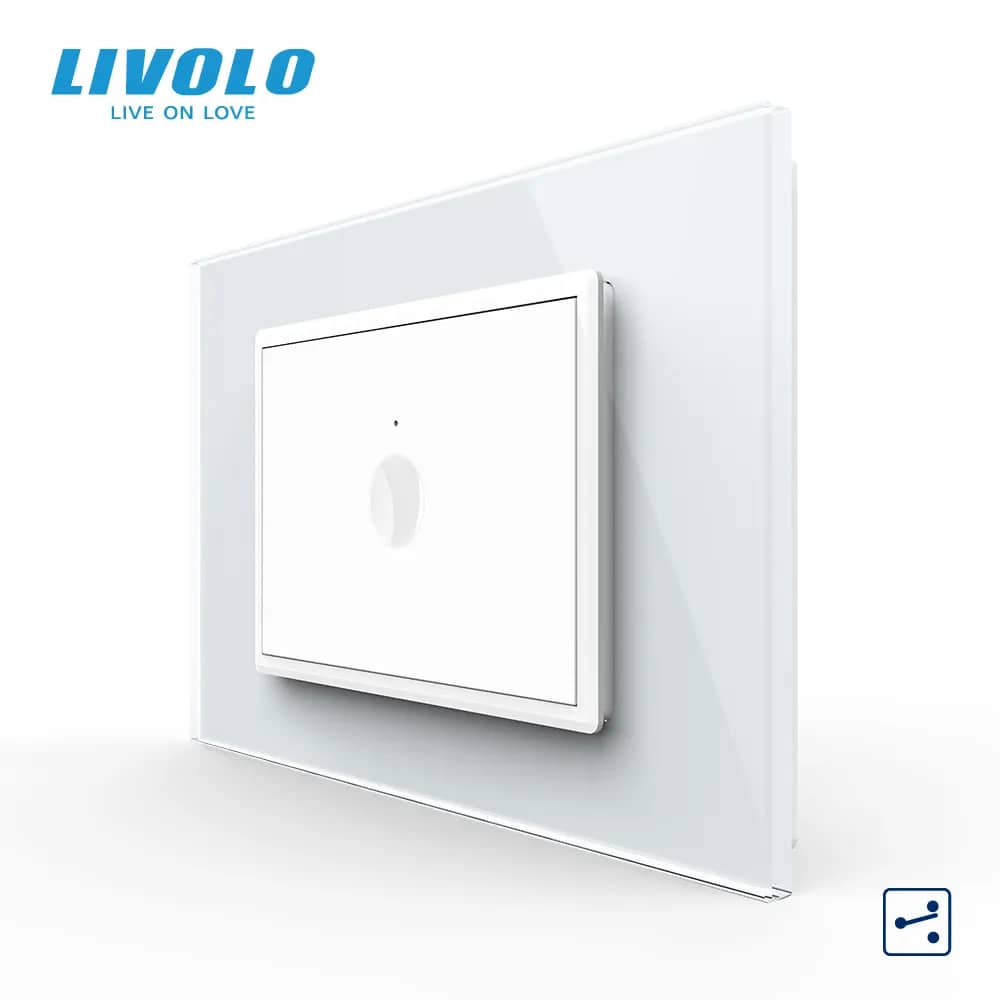

Fade-Resistant Design
The panel does not discolour, so its elegant design stays intact.
05

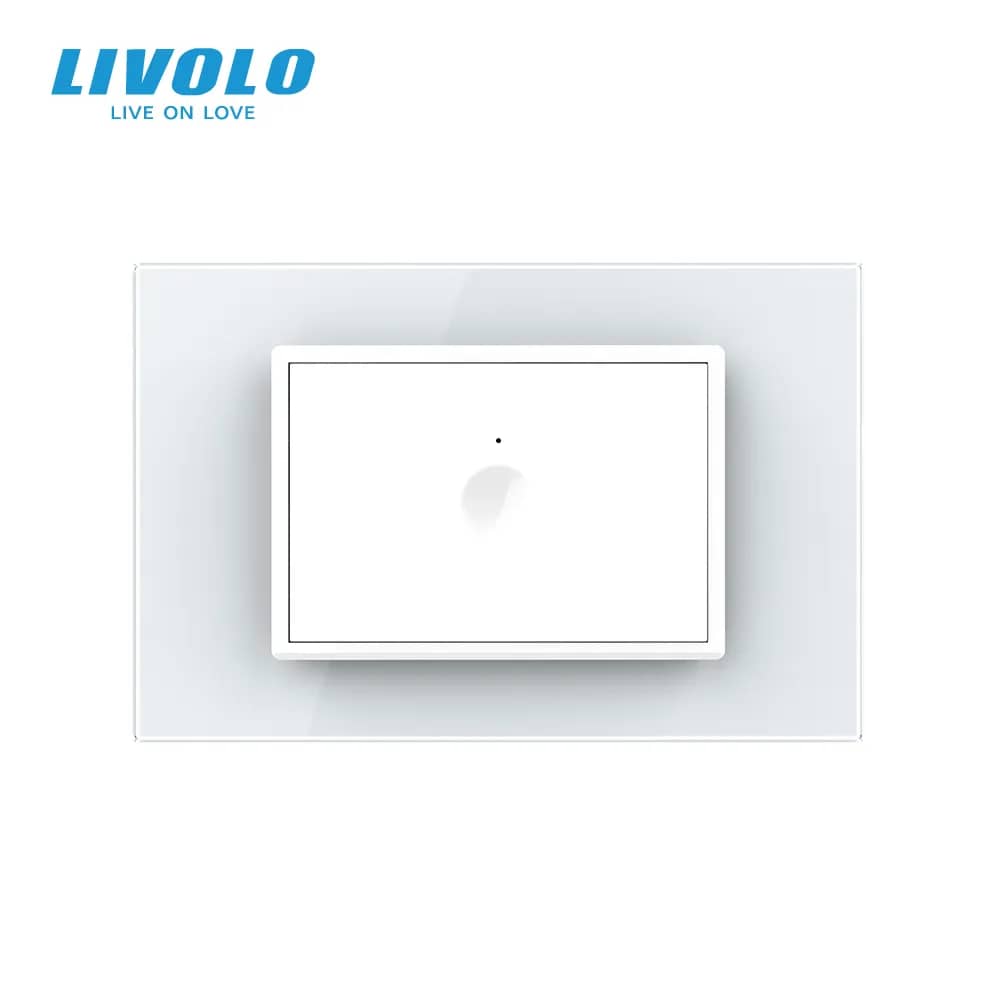

High-Quality Glass Panel
The panel is made of high-quality glass that resists scratches and high temperatures.
06
Structure
The switch is made up of three main parts and is fixed with a screw mounting system.
- Elegant crystal glass panel
- Switch module
- Metal frame
07
Technical Data
- Voltage: 100-240V~, 50/60Hz
- Load: 5A/gang, 10A total
- Panel dimensions: 119 mm x 78 mm
- Screw mounting distance: 85 mm

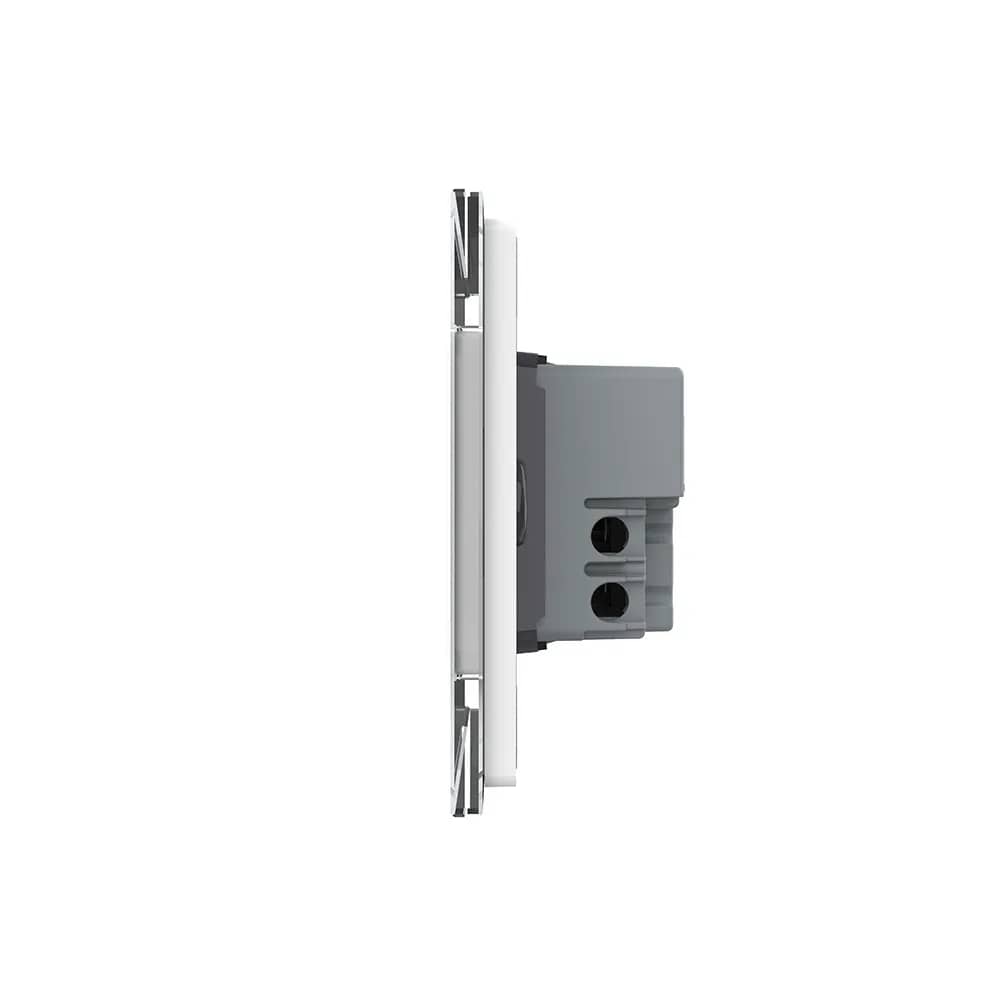

- Depth (as shown in diagram): 4 mm, 8 mm, 24 mm

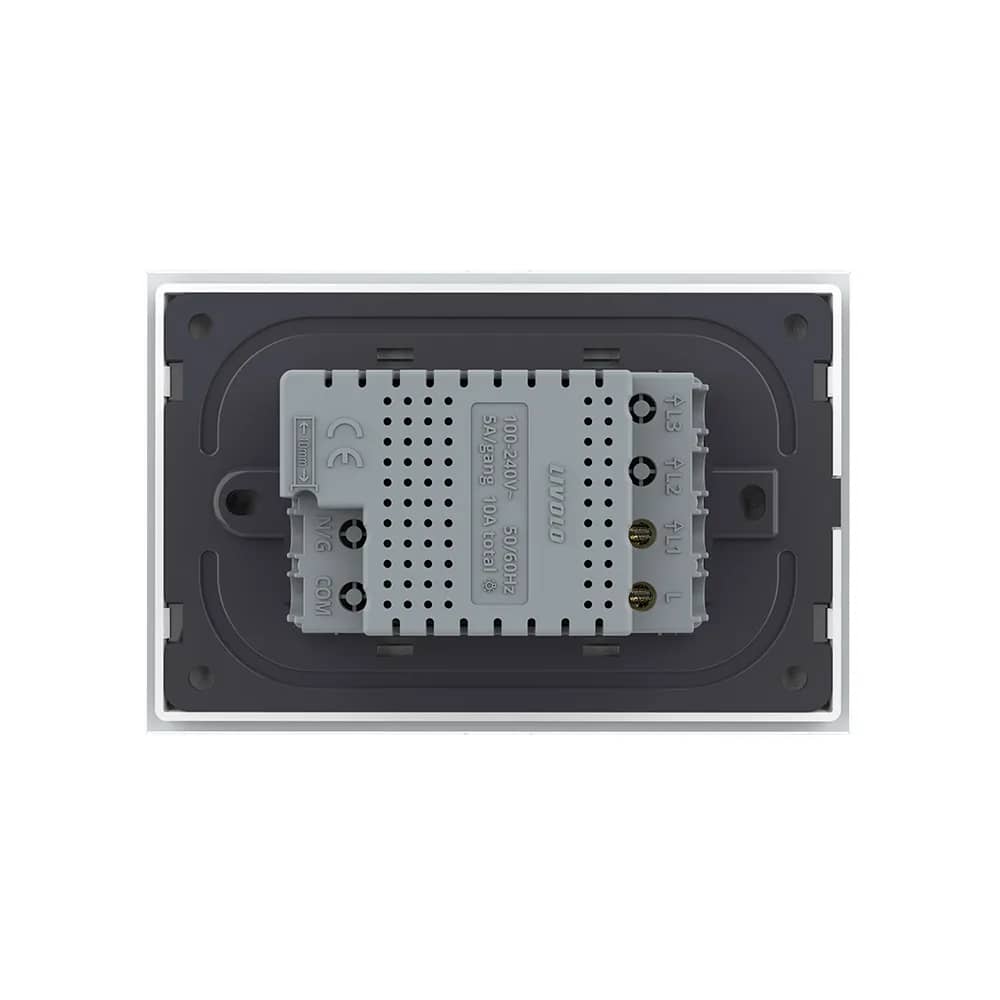

- Terminals: L, L1, L2, L3, N/G, COM
08
Wiring Diagram
Connect the live wire to the L terminal and the lamp to the L1 terminal. The neutral wire goes directly to the lamp.
09
Installation Steps
- 1. Open the package.
- 2. Connect the wires and tighten the screws.
- 3. Use the 2 screws to fix the frame.
- 4. Fit the front panel (click into place).
