A Range of Finishes
Simple design, extraordinary mechanism. The switch is available with glass panels in several colours.
Livolo
Livolo Glass Touch Light Switch – 2 Gang, Italian Standard, New Series
SKU: VL-FC2-3WP-11
AED 60
In stock
1
- Delivery across all seven emirates. Free on orders over AED 750.
- Order now, we confirm availability and delivery with you before you pay.
Livolo 2 gang touch light switch with tempered glass frame, Italian standard, crystal texture and LED status indicator.
Product details
Livolo 2 gang touch light switch with glass frame, Italian standard, featuring a crystal texture and light indicator. Moisture- and scratch-resistant, it offers refinement at its finest.
Livolo switches use a touch sensor with a 100 ms response time, similar to the technology used in smartphones. The switch's glass panel is made of fire-resistant tempered glass. The red/blue LED indicates the on/off status of the switch.
Highlights
02

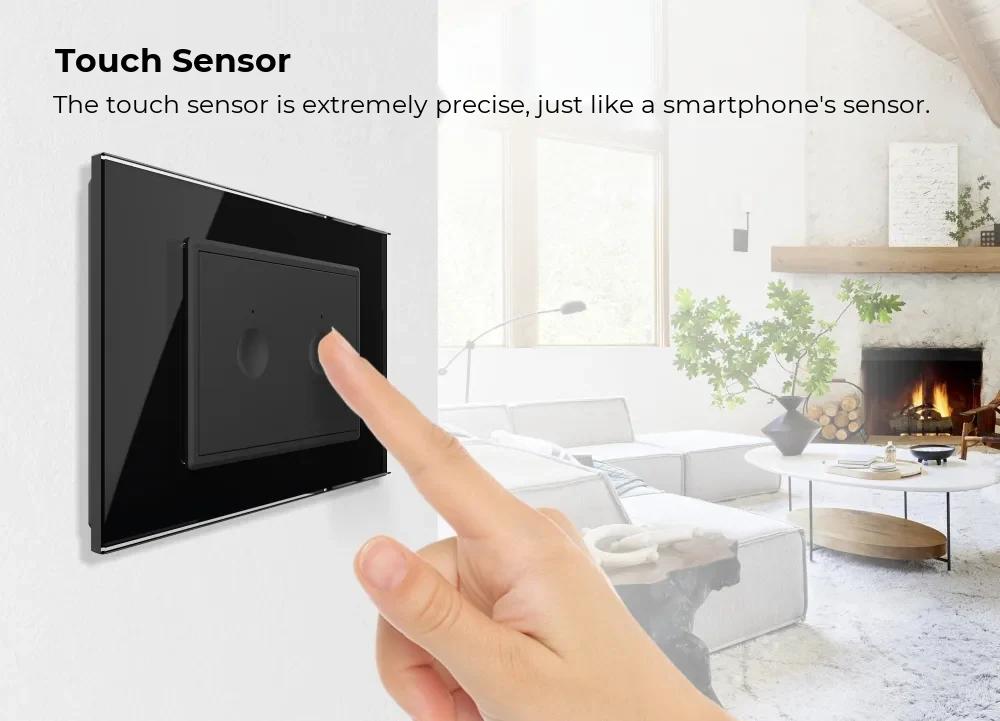

Precise Touch Sensor
The touch sensor is extremely precise, just like the sensor in a smartphone.
03

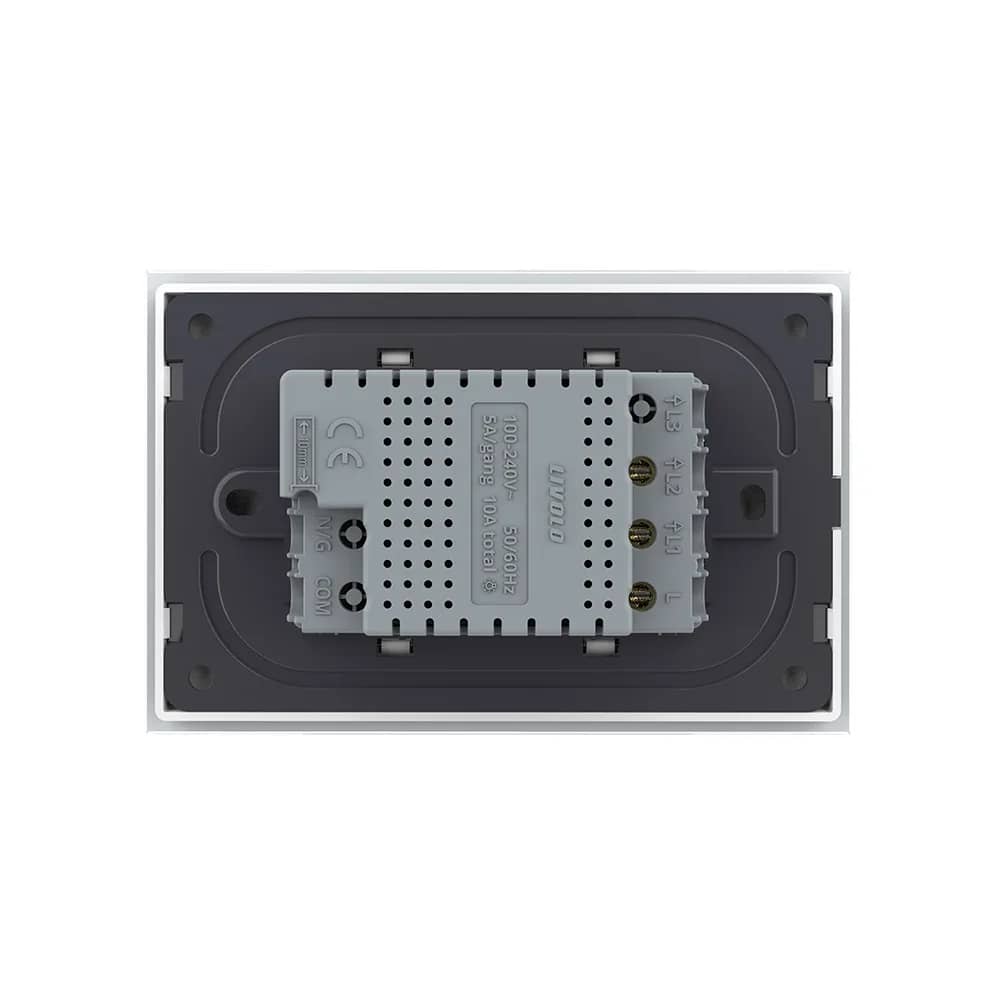

No Unnecessary Wiring
The new Livolo switches are quick and easy to install, connecting to the live (L) and neutral (N) wires.
- Live (L)
- Neutral (N)
04

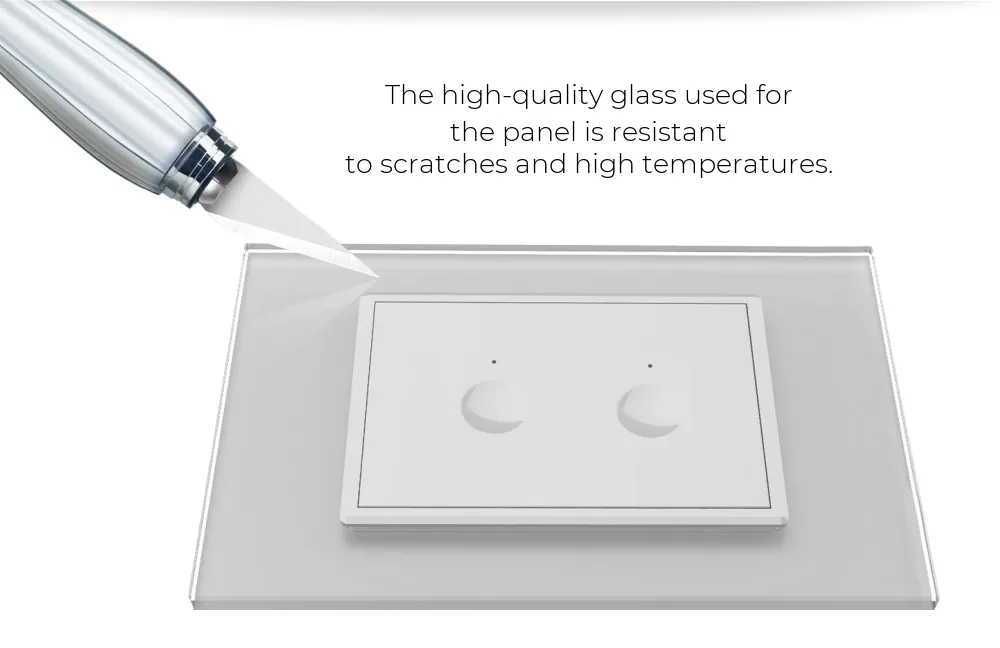

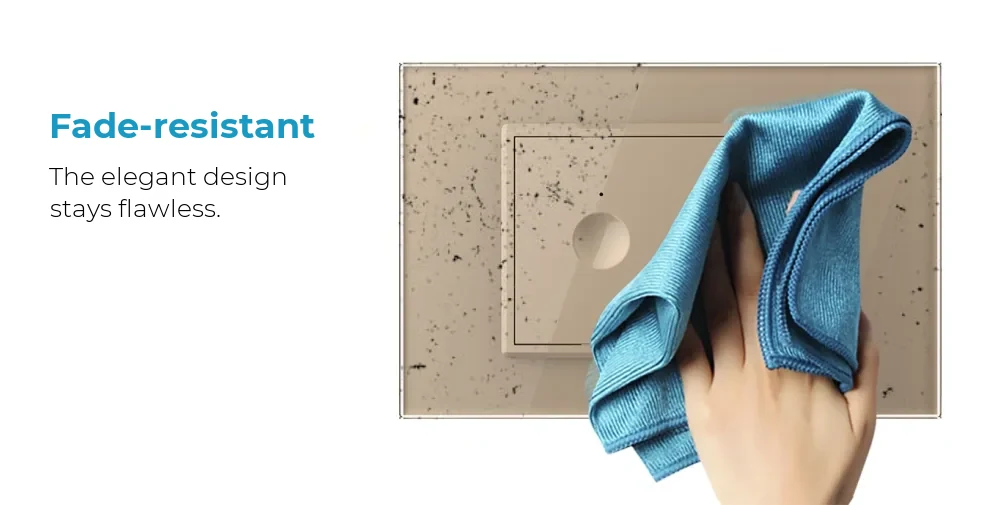

Durable, Fade-Resistant Glass
The panel will not discolour, so its elegant design stays intact. It is made from high-quality glass that resists scratches and high temperatures.
05

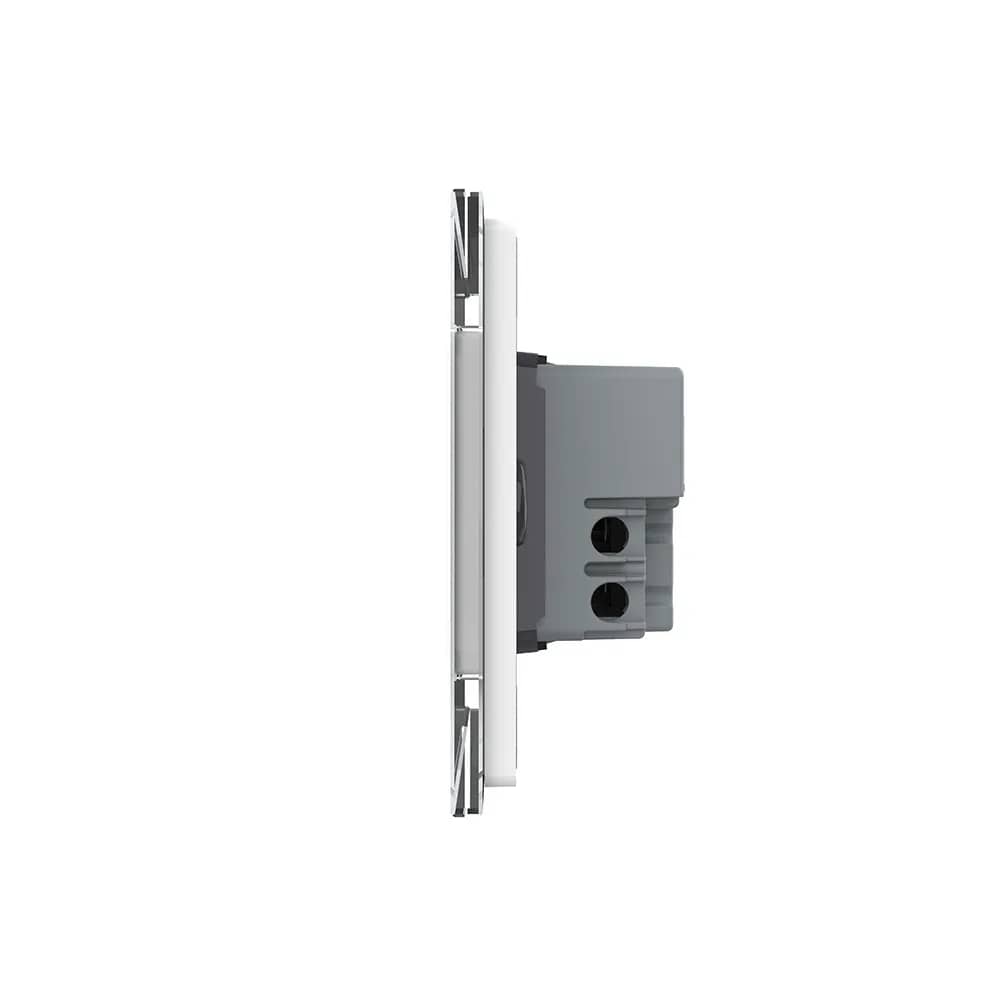

Structure
The switch is built from three main parts and is fixed with a screw mounting system.
- Elegant crystal glass panel
- Switch module
- Metal frame
06
Technical Data
- Voltage: 100-240V~, 50/60Hz
- Load: 5A/gang, 10A total
- Panel dimensions: 119 mm x 78 mm
- Screw mounting distance: 85 mm
- Depth: 4 mm / 24 mm / 8 mm (per dimension drawing)
- Terminals: L, L1, L2, L3, N/G, COM
07
Wiring Diagram
Connect the live wire to terminal L and each light to terminals L1 and L2; the neutral wire runs to the lights.
08
Installation Steps
- 1. Open the package.
- 2. Connect the wires and tighten the screws.
- 3. Use the 2 screws to fix the frame.
- 4. Fit the front panel (it clicks into place).
