01
A Wide Range of Products
Simple design, extraordinary mechanism. The switch panel is shown in several finishes: white, black, grey and gold.
Livolo
Livolo Glass Touch Light Switch – 3 Gang, Italian Standard (New Series)
SKU: VL-FC3-3WP-11
AED 66
In stock
1
- Delivery across all seven emirates. Free on orders over AED 750.
- Order now, we confirm availability and delivery with you before you pay.
Livolo 3 gang touch light switch with tempered glass frame, Italian standard, crystal texture and LED status indicator.
Product details
Livolo 3 gang touch light switch with glass frame, Italian standard, featuring a crystal texture, light indicator, resistance to moisture and scratches, and superlative refinement.
Livolo switches use a touch sensor with a 100 ms response time, similar to the technology used in smartphones. The switch panel is made of tempered, fire-resistant glass. The red/blue LED indicates the on/off status of the switch.
Highlights
02
Touch Sensor
The touch sensor is extremely precise, just like the sensor on a smartphone.
03
No Unnecessary Cables
The new Livolo switches allow quick and easy installation.
- Live (L)
- Neutral (N)
04
Fade-Resistant Finish
The panel does not discolour, so its elegant design stays intact.
05
High-Quality Glass Panel
The panel is made from high-quality glass that resists scratches and high temperatures.
06

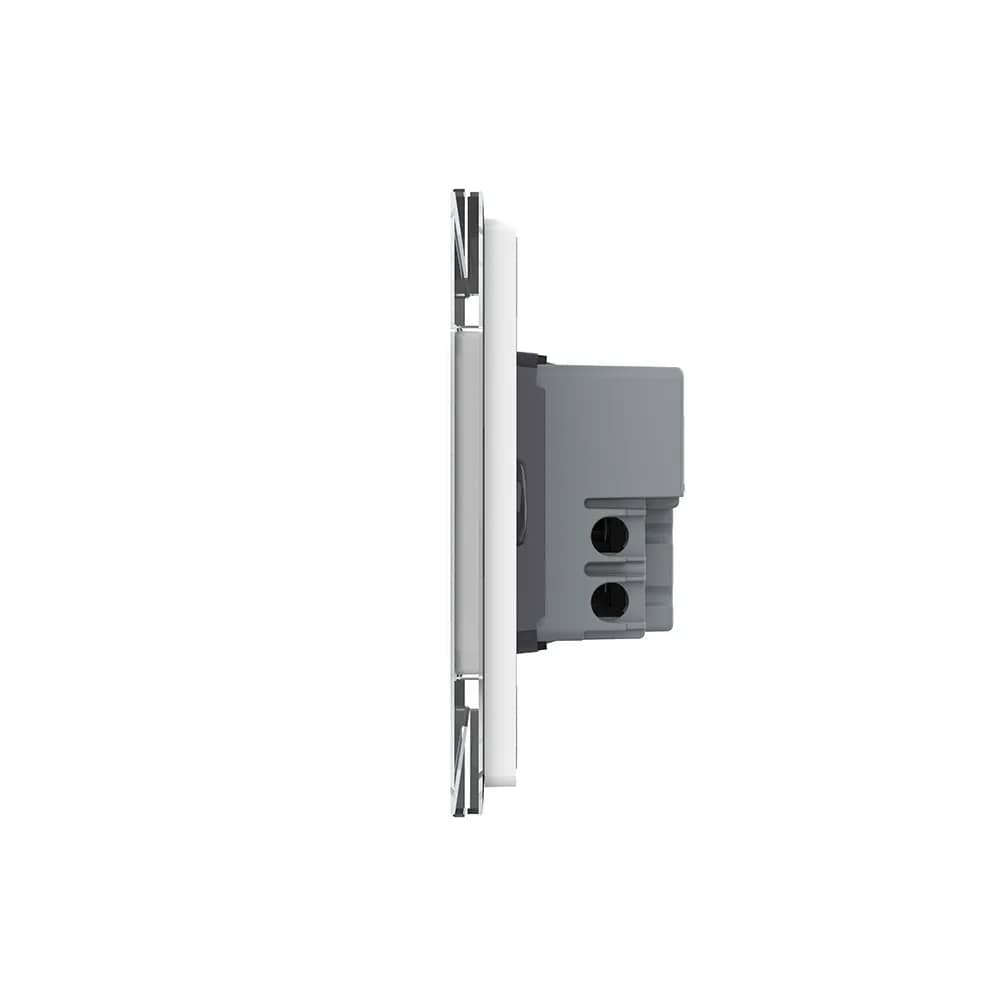

Structure
The switch is made up of three main parts and is fixed with screws.
- Elegant crystal glass panel
- Switch module
- Metal frame
- Screw fixing system: 85 mm between fixing points
07
Dimensions
- Width: 119 mm
- Height: 78 mm
- Panel thickness: 4 mm
- Module depth: 24 mm
- Front profile: 8 mm
08

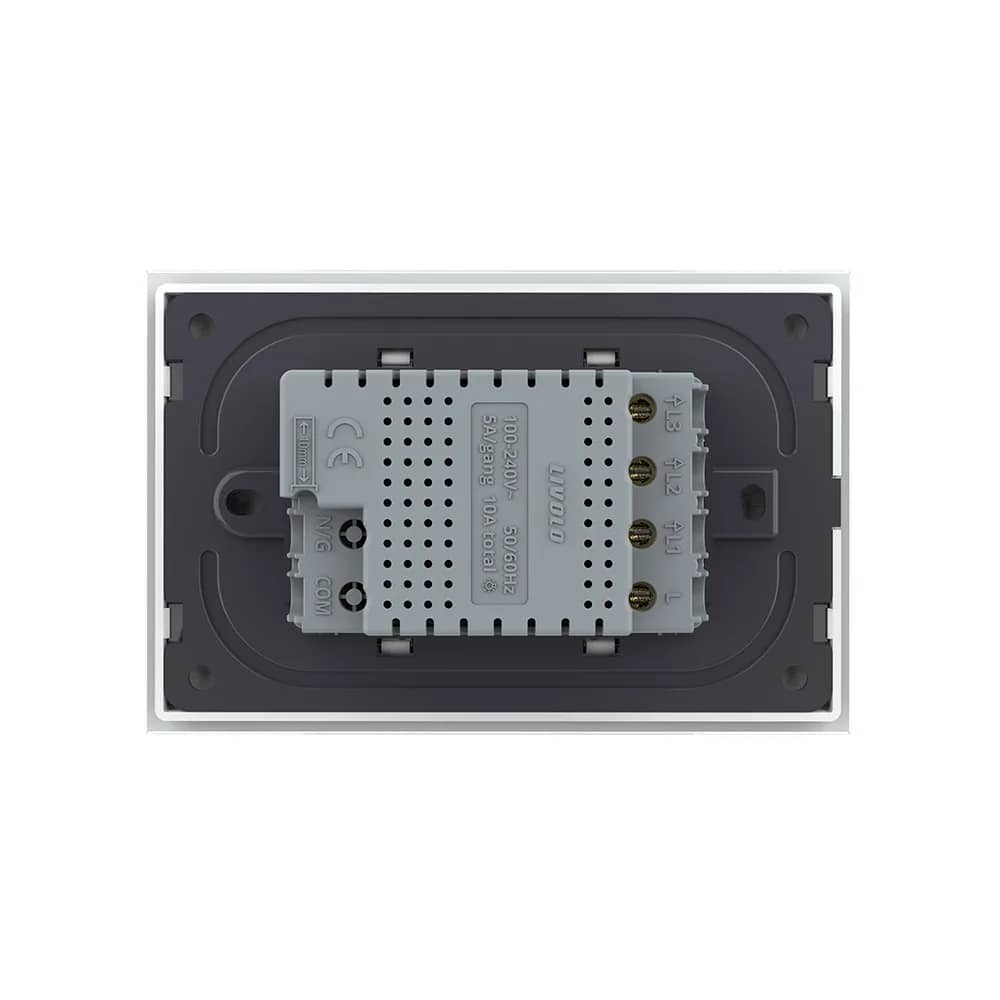

Technical Data
As printed on the switch module.
- Voltage: 100-240V~
- Frequency: 50/60Hz
- Load: 5A/gang, 10A total
- Terminals: L, L1, L2, L3
09
Wiring Diagram
The live wire connects to the L terminal, and each of the three lights is connected to L1, L2 and L3 respectively, with the lights' other side connected to neutral.
10
Installation Steps
- 1. Open the package.
- 2. Connect the wires and tighten the screws.
- 3. Use the 2 screws to fix the frame.
- 4. Fit the front panel (it clicks into place).
