01
Precise Touch Sensor
The touch sensor is extremely precise, just like the sensor on a smartphone. Please note: the glass frame is not included in the package and must be purchased separately.
Livolo
Livolo Zigbee EC Touch Light Switch Module – 2 Gang
SKU: C7-VL-FC2Z2-2WP
AED 58
In stock
1
- Delivery across all seven emirates. Free on orders over AED 750.
- Order now, we confirm availability and delivery with you before you pay.
Livolo 2 gang touch switch module with Zigbee EC protocol – app and voice control via the Livolo hub, 5A per circuit, fits round or square boxes.
Product details
The Livolo 2 gang touch light switch module with Zigbee EC protocol, from the new series, is an improved and innovative product resulting from technology developed through years of study and research. It is a practical product, made from quality materials and built to last, bringing convenience and comfort to your home. It fits a round or square wall box with 60mm screw spacing.
Improvements over the previous series:
- → Compatible with more types of bulbs
- → Faster response time when the touch panel is pressed
- → More powerful and robust chip – made in Japan
- → Lower standby power consumption
- → Compact design (smaller dimensions than the previous model)
- → Maximum supported load of 5A per circuit
It can be operated:
– Directly from the switch, on/off by touch;
– From your smartphone via the Livolo Zigbee EC Hub using the Livolo app (hub sold separately);
– By voice with Google Home or Amazon Alexa. The Livolo Zigbee EC Hub is required as the link between the switch and Google Home or Amazon Alexa.
Highlights
02
Voice Control with Amazon Alexa
With a simple voice command you can control the Livolo switch with ZigBee protocol to turn your lights on or off.
- Compatible with Amazon Alexa
- ZigBee protocol
- Example command: "Alexa, turn on the light!"
03
Fade-Resistant Design
The surface does not discolour, so the elegant design stays intact.
04

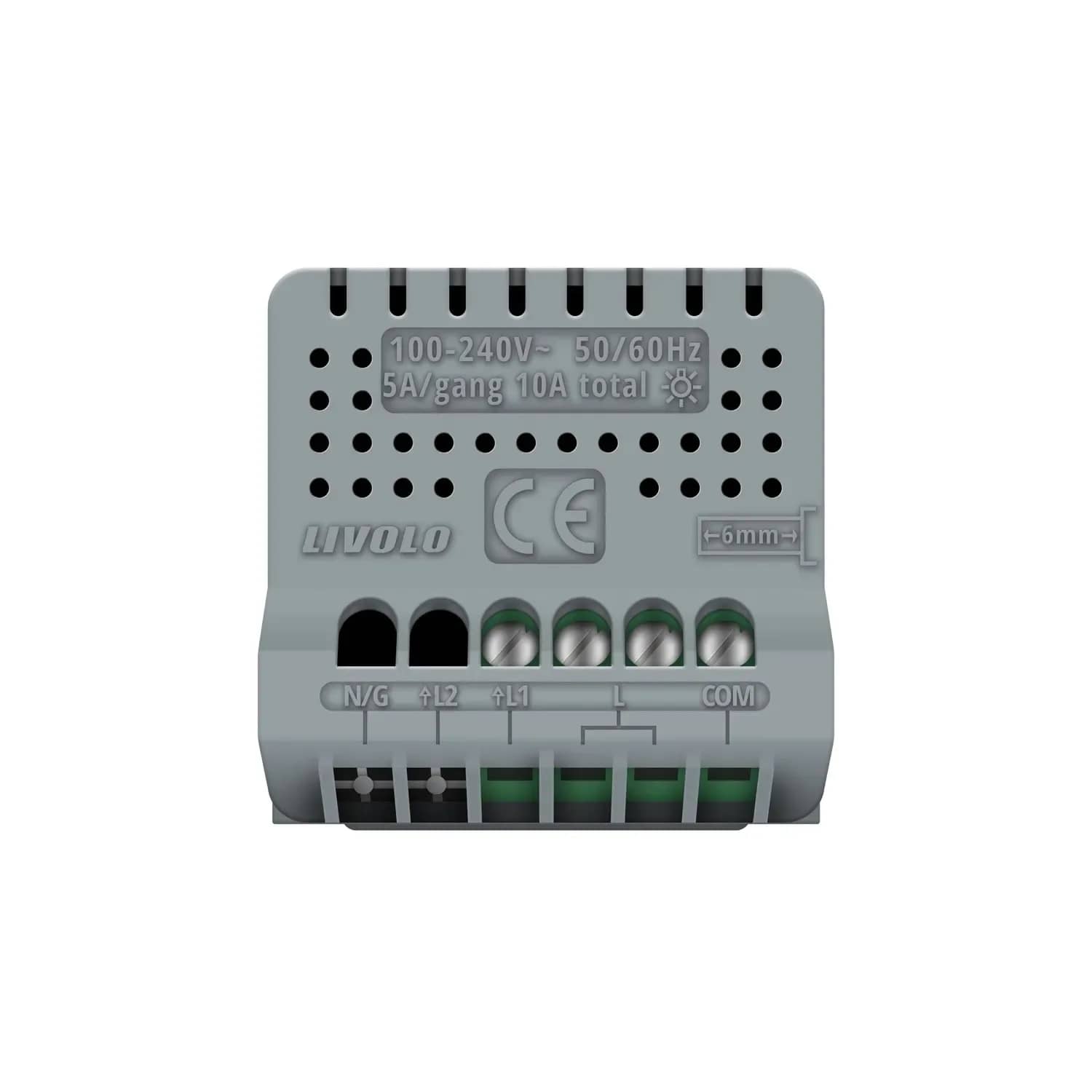

Wiring: Double Switch
The double switch module connects to neutral (N) and live (L), with each output controlling a separate light.
- Terminals: N/G, L2, L1, L, COM
- Neutral (N) and Live (L) connections
- L1 and L2 each connect to one light
05
Technical Data
- Voltage: 100-240V~ 50/60Hz
- Load: 5A/gang, 10A total
- Wire strip length: 8mm
- Marking: CE
06
Installation
- 1. Open the package.
- 2. Connect the wires and tighten the screws.
- 3. Use the 2 screws to fix the frame.
- 4. Fit the front panel (click into place).
