Livolo Wireless Touch Light Switch Module – 4 Gang, Italian Standard, New Series

Wireless 4-Gang Touch Switch Module

A wireless quadruple touch switch module built to the Livolo Italian standard. Simple design, outstanding mechanism, available to pair with panels in a variety of colours.

• Important: the Livolo glass panel is NOT included and must be purchased separately
• The metal frame is not included and must be purchased separately

Touch Sensor

The touch sensor is extremely precise, identical to the sensor in a smartphone.

Wireless Remote Control

Wireless switches can be operated from any room. The switch can be controlled with the Livolo VL-RMT-02 key fob remote and with the VL-RMT-04 remote.

• Remote controls are not included and must be purchased separately

Structure

The complete switch consists of three parts: an elegant crystal panel, the switch module and a metal frame.

• Elegant crystal glass panel (not included)
• Switch module (included)
• Metal frame (not included)
• Screw fixing system: 85 mm spacing

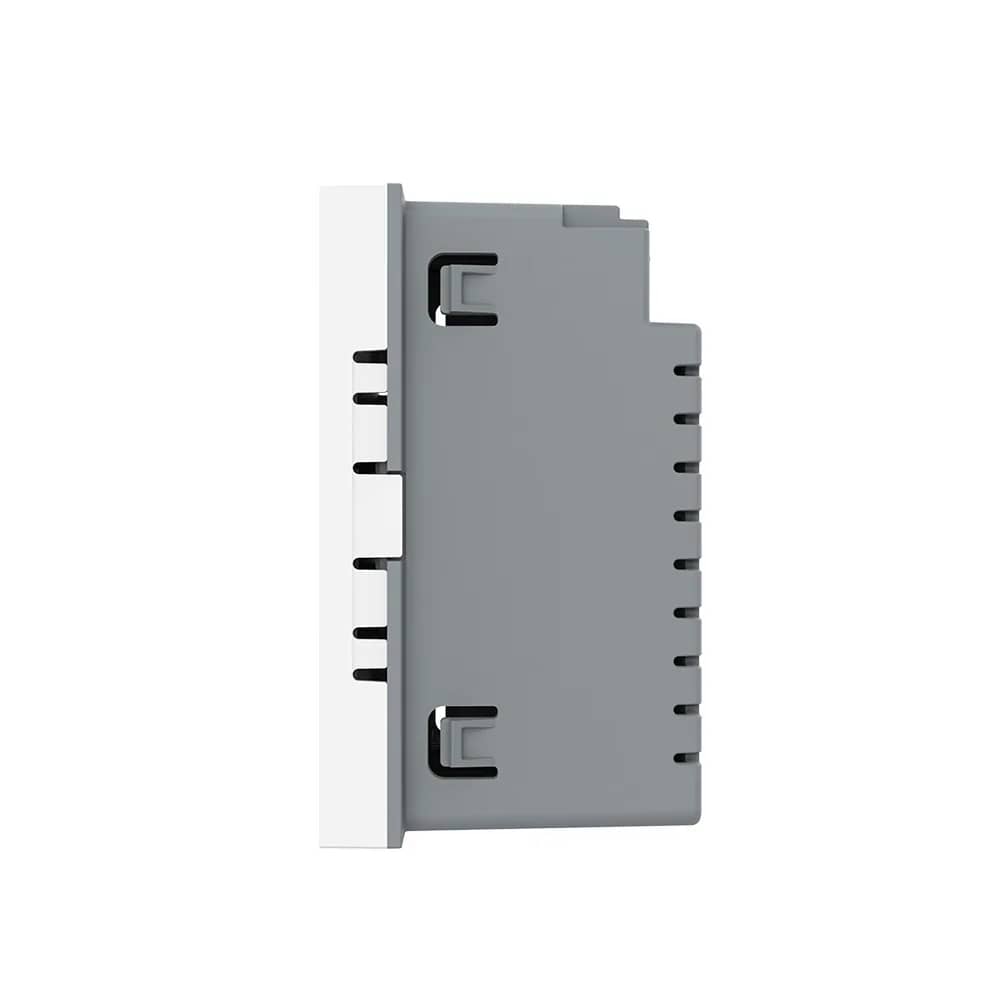

Dimensions

• Width: 119 mm
• Height: 78 mm
• Panel thickness: 4 mm
• Module depth: 34 mm
• Frame depth: 8 mm

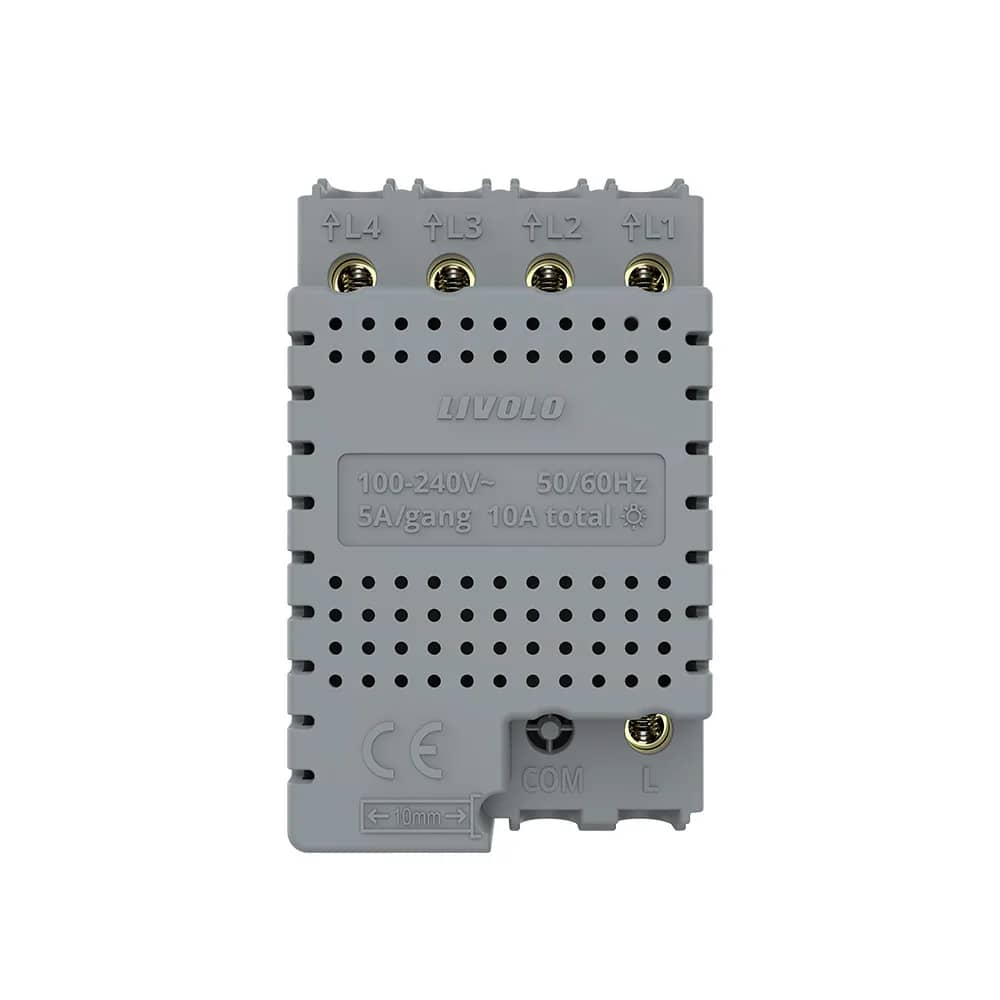

Technical Data

• Voltage: 100-240V~
• Frequency: 50/60Hz
• Load: 5A/gang, 10A total
