Livolo Wireless Touch Light Switch Module – 3 Gang, Italian Standard, New Series

Wireless Triple Touch Switch Module – Italian Standard

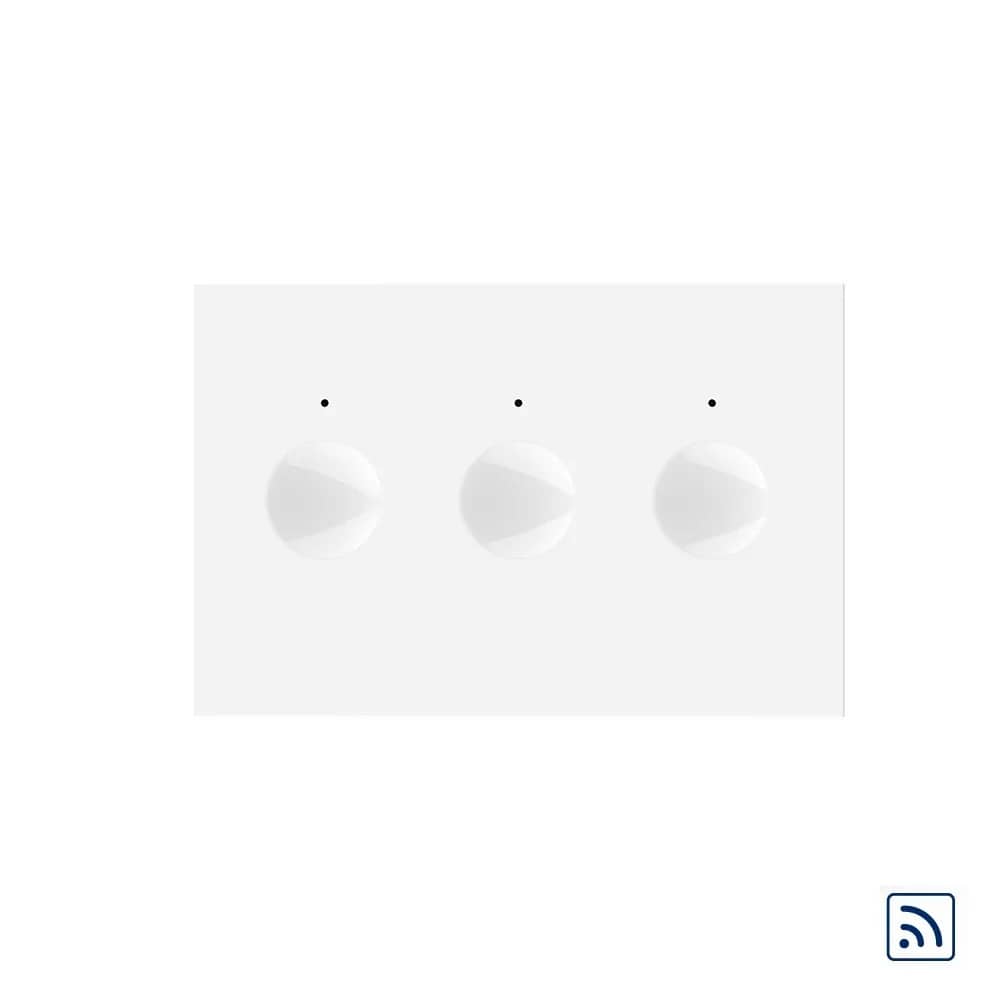

A Livolo 3-gang wireless touch switch module built to the Italian standard, combining a simple design with an outstanding mechanism. Please note: the glass panel shown in the images is for presentation only and is not included; it must be purchased separately.

• 3-gang wireless touch switch module
• Italian standard format
• Glass frame/panel not included – sold separately
• Metal mounting frame not included – sold separately

Touch Sensor

The touch sensor is extremely precise, identical to the sensor in a smartphone.

Wireless Remote Control

The wireless switch can be operated from any room using a remote control. Remote controls are not included in the package and must be purchased separately.

• Compatible with the Livolo VL-RMT-02 key fob remote
• Compatible with the Livolo VL-RMT-04 remote

Structure

The complete switch consists of an elegant crystal glass panel, the switch module and a metal frame. Only the switch module is included.

• Elegant crystal panel (not included)
• Switch module (included)
• Metal frame (not included)
• Screw fixing system with 85 mm spacing

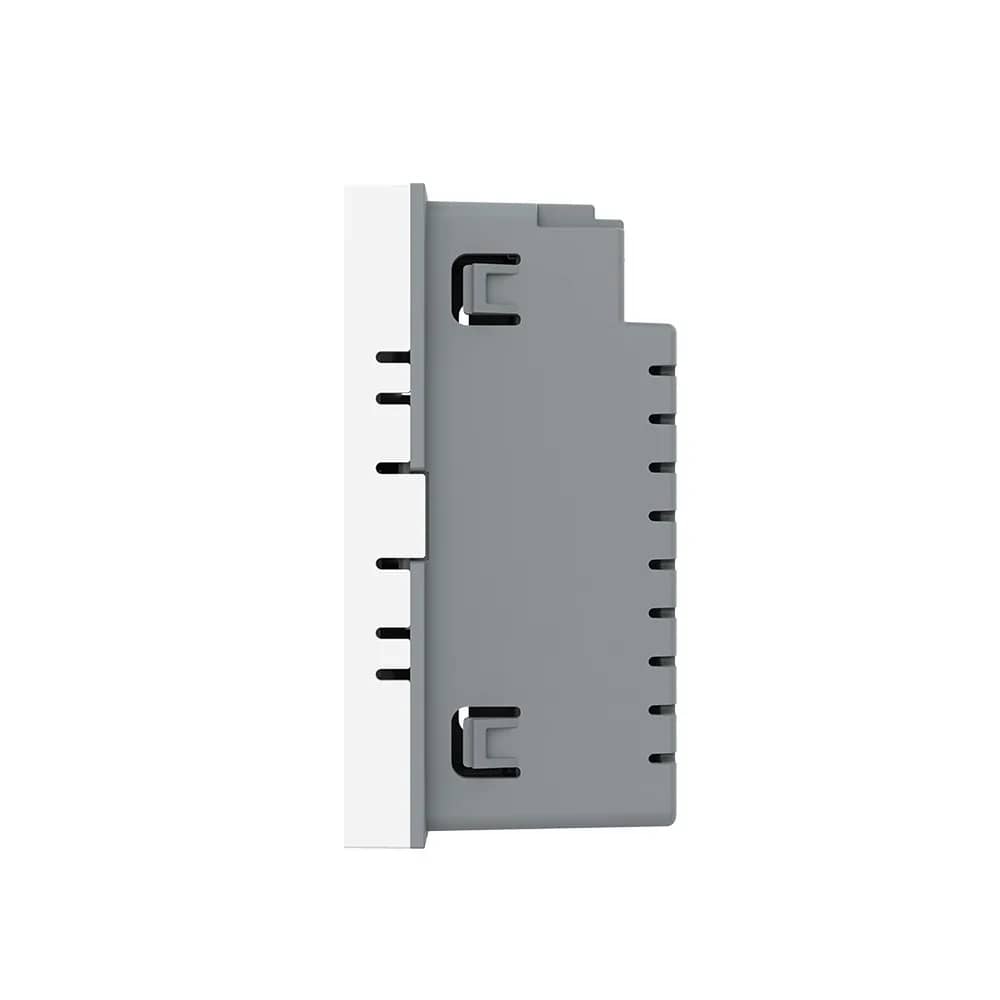

Dimensions

• Width: 119 mm
• Height: 78 mm
• Front depth: 4 mm
• Rear depth: 24 mm
• Side detail: 8 mm
• Screw fixing spacing: 85 mm

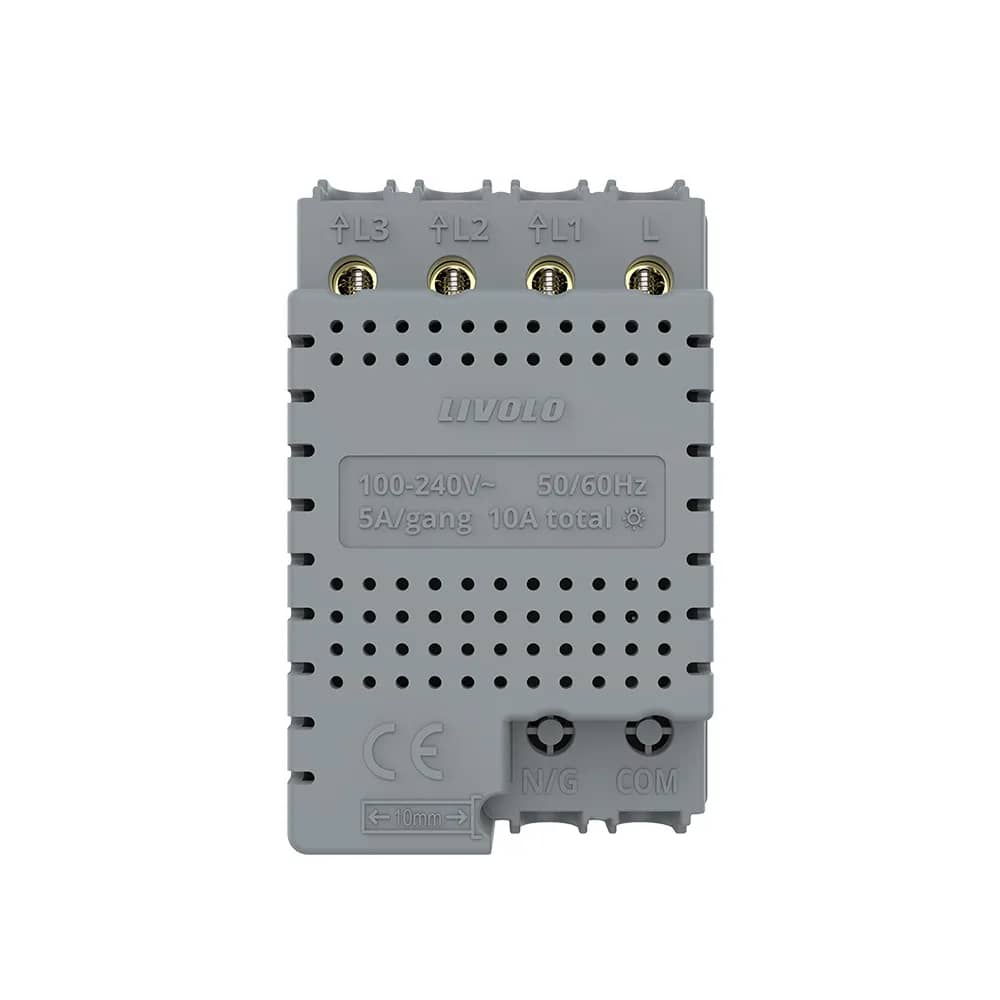

Technical Data

As printed on the module.

• Voltage: 100–240V~
• Frequency: 50/60Hz
• Load: 5A/gang, 10A total
• Terminals: L, L1, L2, L3, N/G, COM
