Livolo

Livolo Wireless Touch Light Switch Module – 2 Gang, Italian Standard, New Series

SKU: C9-VL-FC2R-3WP

AED 38

In stock

Colour: White
1
  • Delivery across all seven emirates. Free on orders over AED 750.
  • Order now, we confirm availability and delivery with you before you pay.

Livolo 2 gang wireless touch switch module, Italian standard, new series – scratch, moisture and dust resistant, in White, Grey or Black.

Product details

Livolo 2 gang wireless touch light switch module, Italian standard, new series, resistant to scratches, moisture and dust. Give your home an extra touch of refinement and comfort.

Highlights

Livolo Wireless Touch Light Switch Module – 2 Gang, Italian Standard, New Series – Wireless Double Touch Switch Module
01

Wireless Double Touch Switch Module

A 2-gang wireless touch switch module to the Livolo Italian standard, part of a varied range with simple design and an outstanding mechanism. Please note: the glass panel is shown for presentation only and is NOT included; it must be purchased separately.

  • 2-gang touch switch module
  • Livolo Italian standard
  • Wireless control
  • Glass frame/panel sold separately
Livolo Wireless Touch Light Switch Module – 2 Gang, Italian Standard, New Series – Touch Sensor
02

Touch Sensor

The touch sensor is extremely precise, identical to the sensor of a smartphone.

Livolo Wireless Touch Light Switch Module – 2 Gang, Italian Standard, New Series – Wireless Remote Control
03

Wireless Remote Control

The switch can be controlled with the Livolo VL-RMT-02 key fob remote, and wireless switches can be operated from any room using the VL-RMT-04 remote. Remotes are not included and must be purchased separately.

  • Compatible with Livolo VL-RMT-02 key fob remote
  • Compatible with VL-RMT-04 remote
  • Remote control not included
Livolo Wireless Touch Light Switch Module – 2 Gang, Italian Standard, New Series – Structure
04

Structure

The complete switch consists of an elegant crystal panel, the switch module and a metal frame. Only the switch module is included.

  • Elegant crystal panel (not included)
  • Switch module (included)
  • Metal frame (not included)
  • Screw fixing system: 85 mm spacing

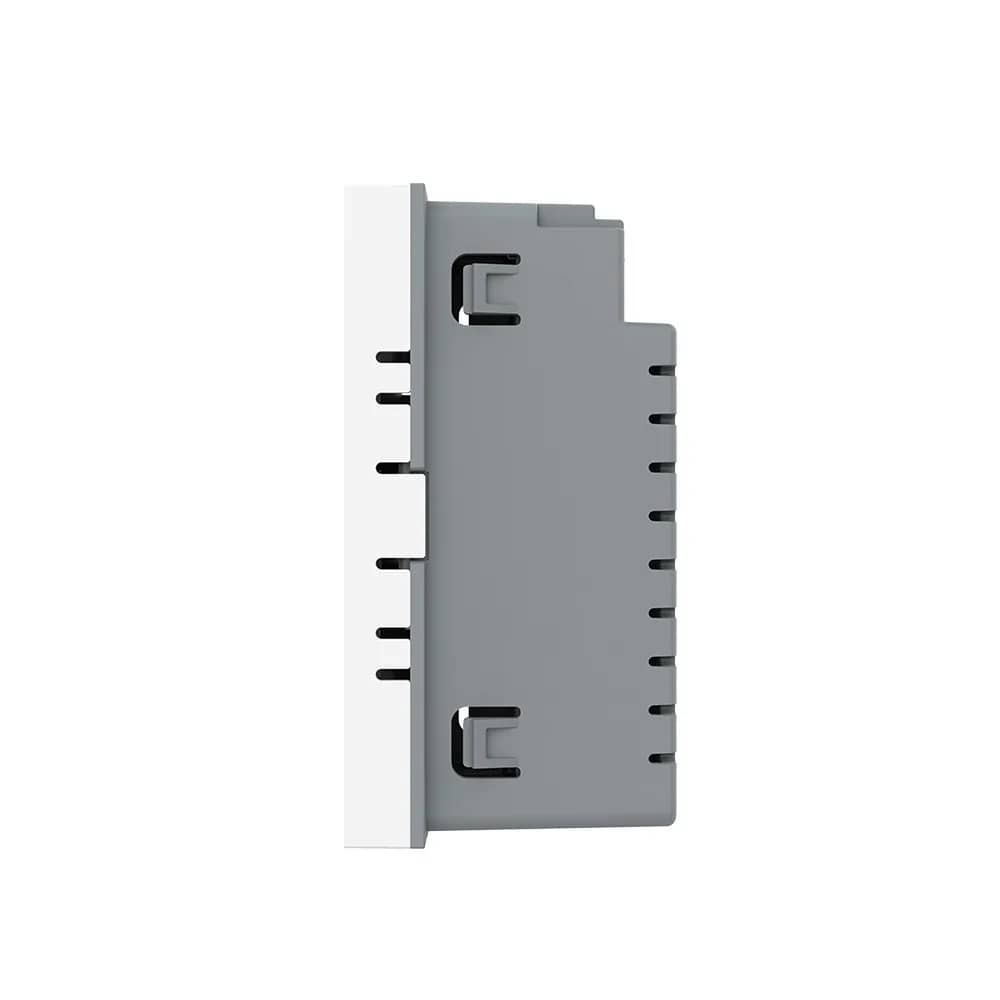

Livolo Wireless Touch Light Switch Module – 2 Gang, Italian Standard, New Series – Dimensions
05

Dimensions

  • Width: 119 mm
  • Height: 78 mm
  • Panel thickness: 4 mm
  • Depth behind panel: 24 mm
  • Front projection: 8 mm

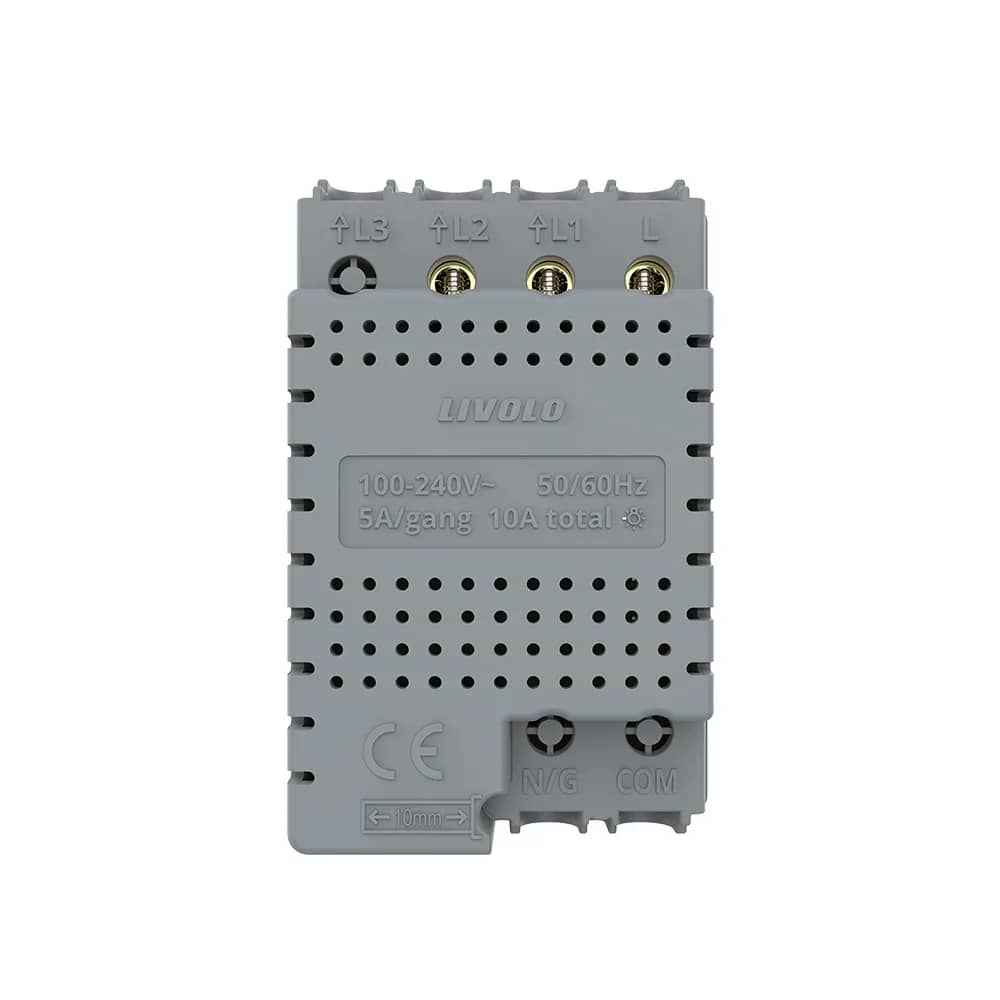

Livolo Wireless Touch Light Switch Module – 2 Gang, Italian Standard, New Series – Technical Data
06

Technical Data

  • Voltage: 100-240V~
  • Frequency: 50/60Hz
  • Load: 5A/gang, 10A total
  • Terminals: L1, L2, COM
07

Wiring

Connect the live (phase) wire to the COM terminal and each light to the L1 and L2 outputs; the neutral goes to the lights.

08

Installation Steps

  • 1. Open the package.
  • 2. Connect the wires and tighten the screws.
  • 3. Use the 2 screws to fix the frame.
  • 4. Fit the front panel (click into place).
