Livolo Touch Light Switch Module – 4 Gang 2-Way / Intermediate, Italian Standard, New Series

Quadruple 2-Way / Intermediate Touch Switch Module

A Livolo 4-gang 2-way / intermediate touch switch module to Italian standard. Simple design, outstanding mechanism.

• 4 touch-controlled gangs
• 2-way / intermediate switching
• Italian standard format

Important Compatibility Notice

2-way switches only work when installed and synchronised with other Livolo 2-way products. Livolo products do not work with other brands. The panel shown is for illustration only and is not included; it must be purchased separately.

• Glass frame not included
• Metal frame not included

Touch Sensor

The touch sensor is extremely precise, identical to the sensor in a smartphone.

Structure

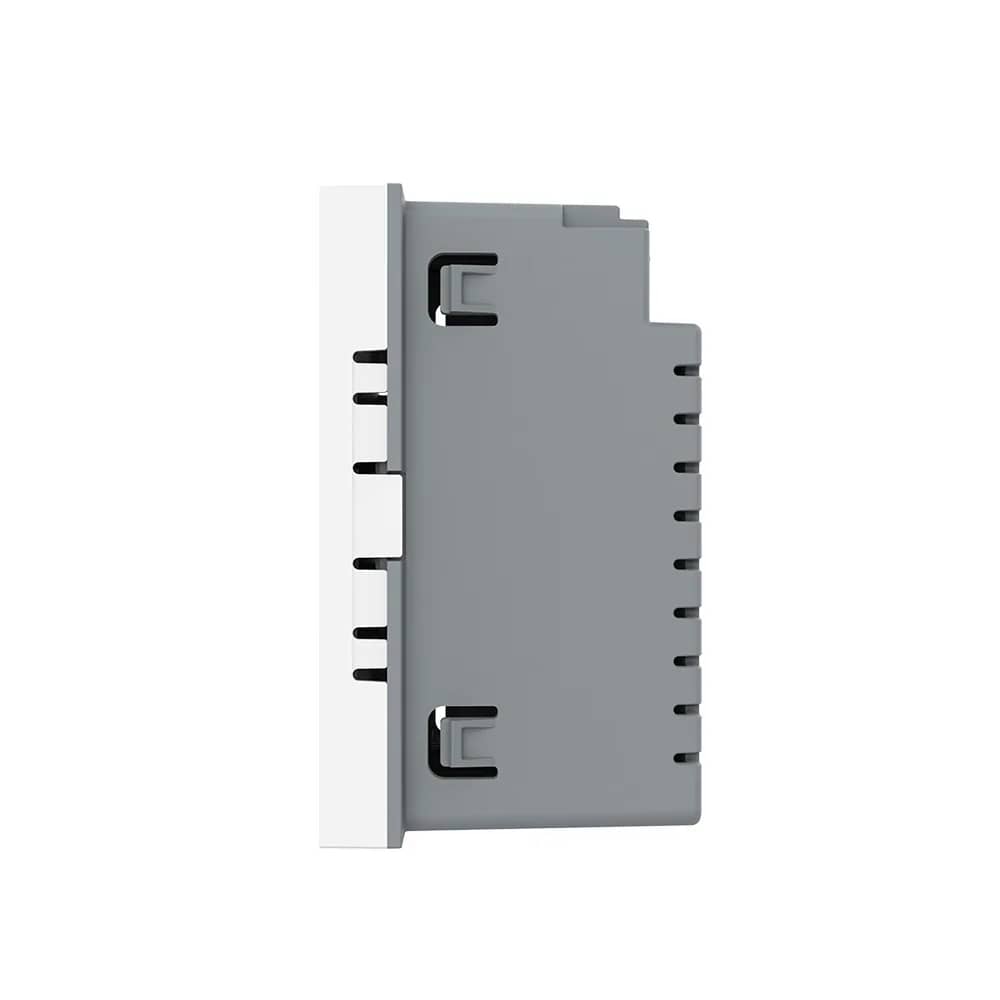

The complete switch consists of an elegant crystal glass panel, the switch module and a metal frame. Only the switch module is supplied.

• Elegant crystal panel (not included)
• Switch module (included)
• Metal frame (not included)
• Screw fixing system: 85 mm

Dimensions

• Width: 119 mm
• Height: 78 mm
• Panel depth: 4 mm
• Module depth: 34 mm
• Frame thickness: 8 mm
• Screw fixing spacing: 85 mm

Wiring Diagram

The four lights connect to outputs L1–L4 of the first switch, with the neutral line shared by all lights. The live (L) and 2-way link wires connect the two switches.

• Neutral (N) to the lights
• Live (L) to both switches
• 2-way link between the two switches
