Livolo Touch Light Switch Module – 3 Gang 2-Way / Intermediate (Cross), Italian Standard, New Series

Triple 2-Way / Intermediate Touch Switch Module

A triple 2-way (staircase) and intermediate (cross) touch switch module to the Livolo Italian standard. Simple design, outstanding mechanism, available to pair with a range of panel colours.

• 3 gang touch module
• 2-way / intermediate (cross) operation
• Livolo Italian standard

Important Compatibility Notes

2-way switches only work when installed and synchronised with other Livolo 2-way products. Livolo products do not work with other brands.

• The glass panel is NOT included and must be purchased separately
• The metal frame is not included
• Images are for presentation purposes only

Touch Sensor

The touch sensor is extremely precise, identical to the sensor in a smartphone.

Structure

The complete switch consists of an elegant crystal glass panel, the switch module and a metal frame. Only the switch module is supplied.

• Elegant crystal panel (not included)
• Switch module (included)
• Metal frame (not included)
• Screw fixing system: 85 mm between fixing points

Dimensions

• Width: 119 mm
• Height: 78 mm

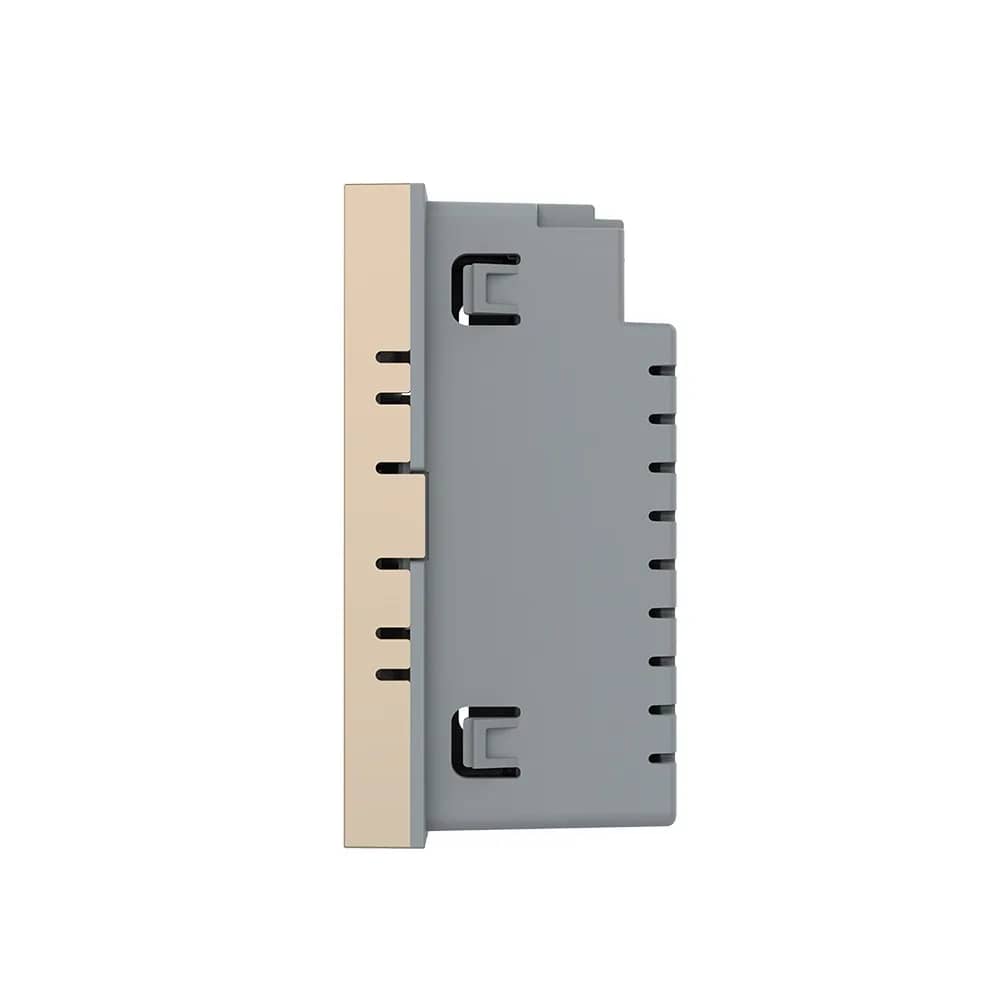

• Depth details: 4 mm, 8 mm and 24 mm as shown in the side view

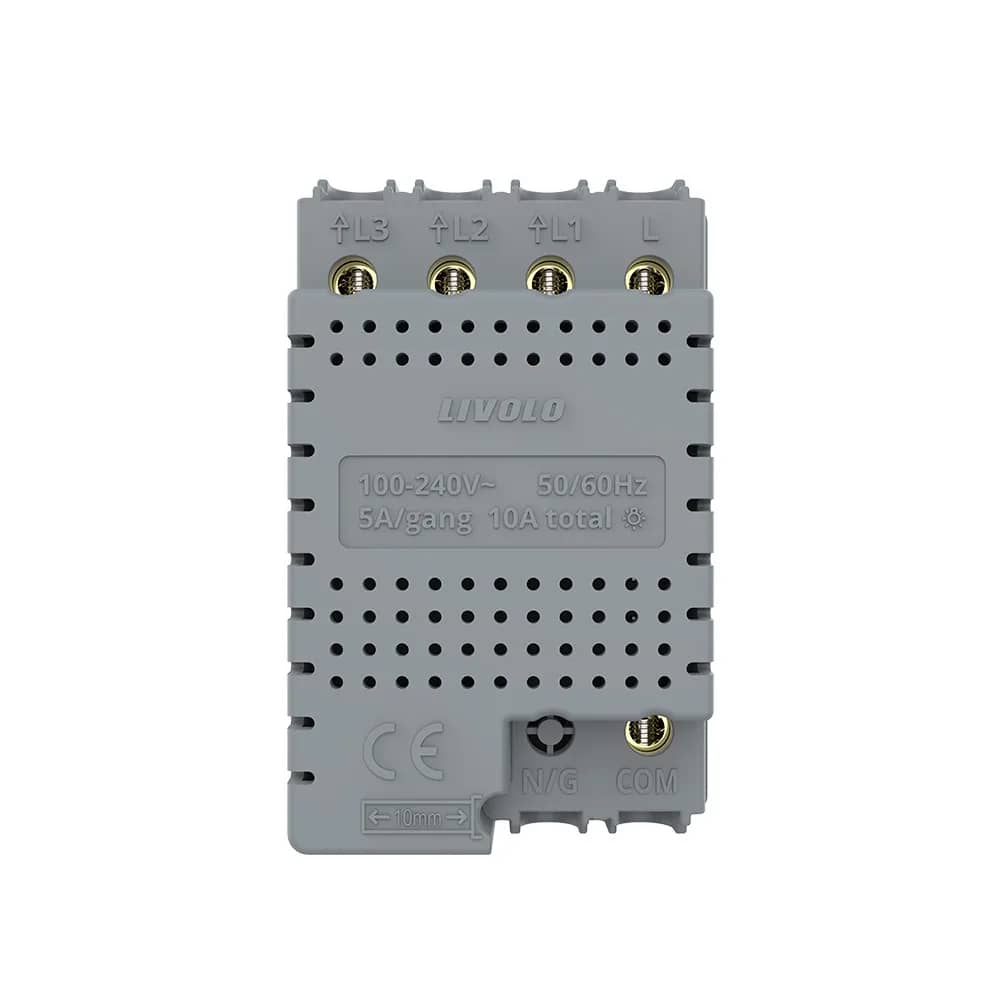

Wiring Diagram

Connect neutral (N) to the lamps and live (L) to the switches, with the two switch modules linked by the 2-way (staircase) connection for each of the three lights.

• Neutral (N)
• Live (L)
• 2-way link between switches
