Livolo Touch 2-Way / Intermediate Light Switch Module – 2 Gang, Zigbee EC Protocol

A Variety of Products

Simple design, extraordinary mechanism. A Livolo touch switch module for two-way/intermediate (staircase/cross) wiring, using the ZigBee protocol.

• Switch module for two-way/intermediate wiring
• ZigBee protocol
• Livolo touch control
• Please note: the image is for illustration only and the Livolo glass frame is NOT included. It must be purchased separately.

Touch Sensor

The touch sensor is extremely precise, just like the sensor in a smartphone.

Wiring Diagram

The wiring diagram shows two modules connected for two-way/intermediate switching.

• Neutral (N)
• Live (L)
• Two-way - intermediate connection between the COM terminals

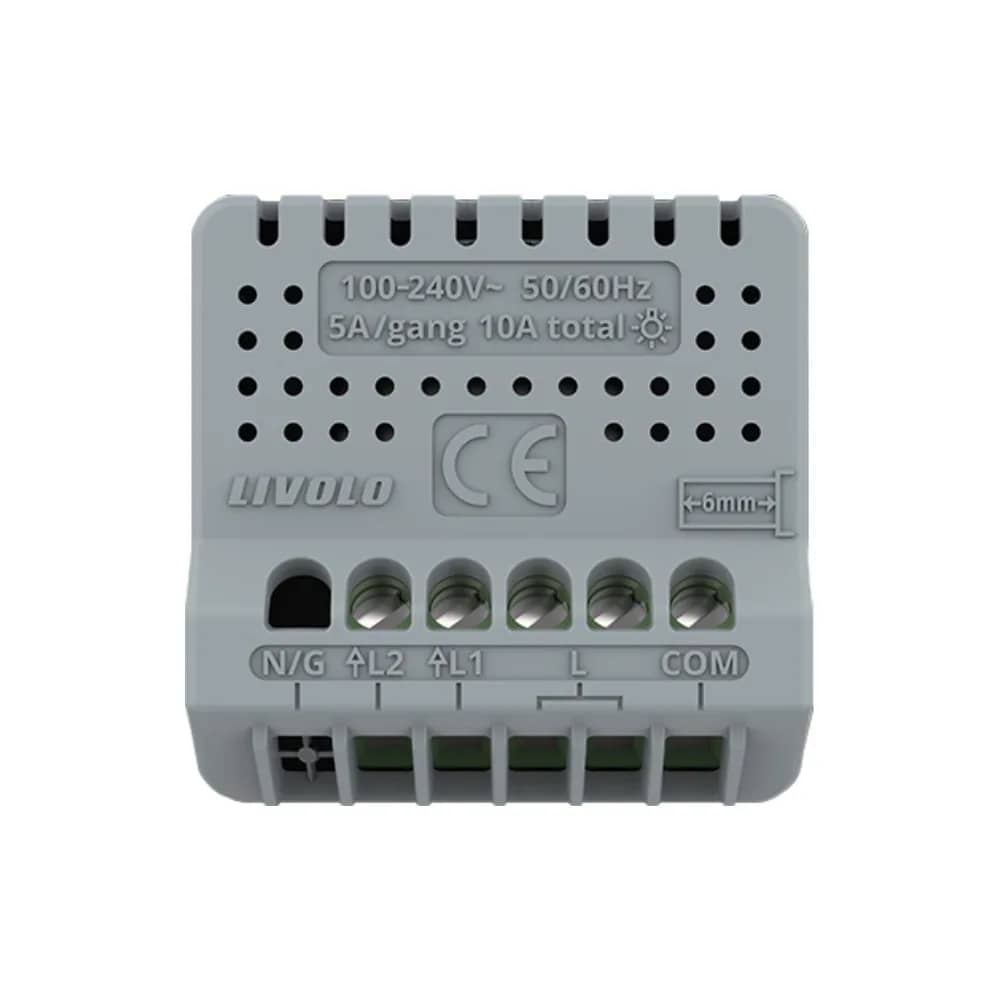

• Terminals: N/G, L2, L1, L, COM
• Rating printed on module: 100~240V~ 50/60Hz, 5A/gang, 10A total

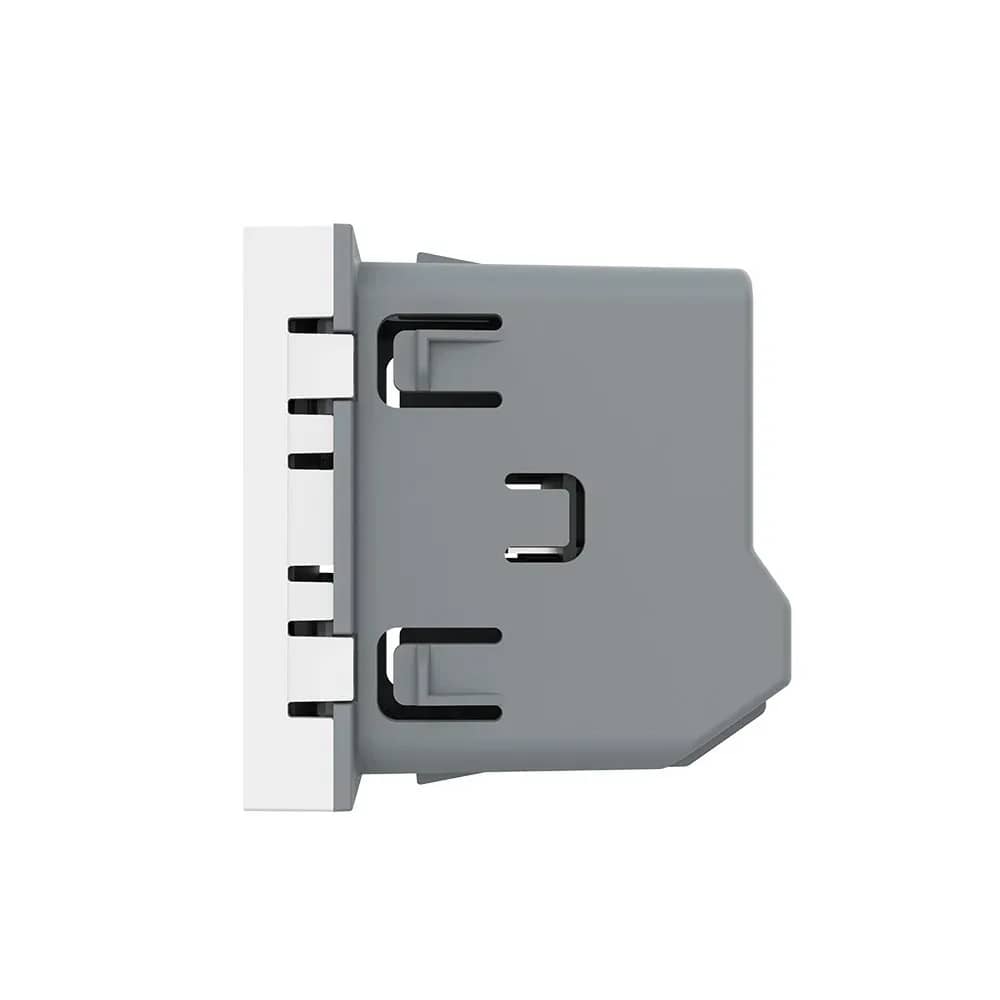

Structure

The switch module is supplied without the glass frame and the metal frame.

• Glass frame (not included)
• Switch module
• Metal frame (not included)
• Screw fixing system: 60 mm
• Dimensions: 80 mm x 80 mm
• Depth: 4 mm, 8 mm, 33 mm

Installation Steps

• 1. Open the package.
• 2. Connect the wires and tighten the screws.
• 3. Use the 2 screws to fix the frame.
• 4. Fit the front panel (click into place).
