Livolo Touch 2-Way / Intermediate Light Switch Module – 1 Gang, 1M Italian Standard, Zigbee EC – White

1 / 3

Livolo

Livolo Touch 2-Way / Intermediate Light Switch Module – 1 Gang, 1M Italian Standard, Zigbee EC

SKU: C9-VL-FC1SZ2-1WP

AED 63

In stock

Colour: White

Delivery across all seven emirates. Free on orders over AED 750.
Order now, we confirm availability and delivery with you before you pay.

Livolo 1 gang 2-way / intermediate touch switch module, 1M Italian standard, Zigbee EC – control by touch, app via hub, or Alexa and Google Home.

Product details

Livolo 1 gang 2-way (staircase) / intermediate touch light switch module, 1M, Italian standard, Zigbee EC protocol, new series, resistant to scratches, moisture and dust. Give your home an extra touch of refinement and comfort.

It can be operated:

– Directly at the switch, on/off by touch;

– From your smartphone via the Livolo Zigbee EC Hub using the Livolo app (hub sold separately);

– By voice with Google Home or Amazon Alexa. To connect the switch to Google Home or Amazon Alexa, you need the Livolo Zigbee Hub.

Highlights

Precise Touch Sensor

The touch sensor is extremely precise, identical to the sensor used in a smartphone.

Note: the glass frame is not included in the package and must be purchased separately.

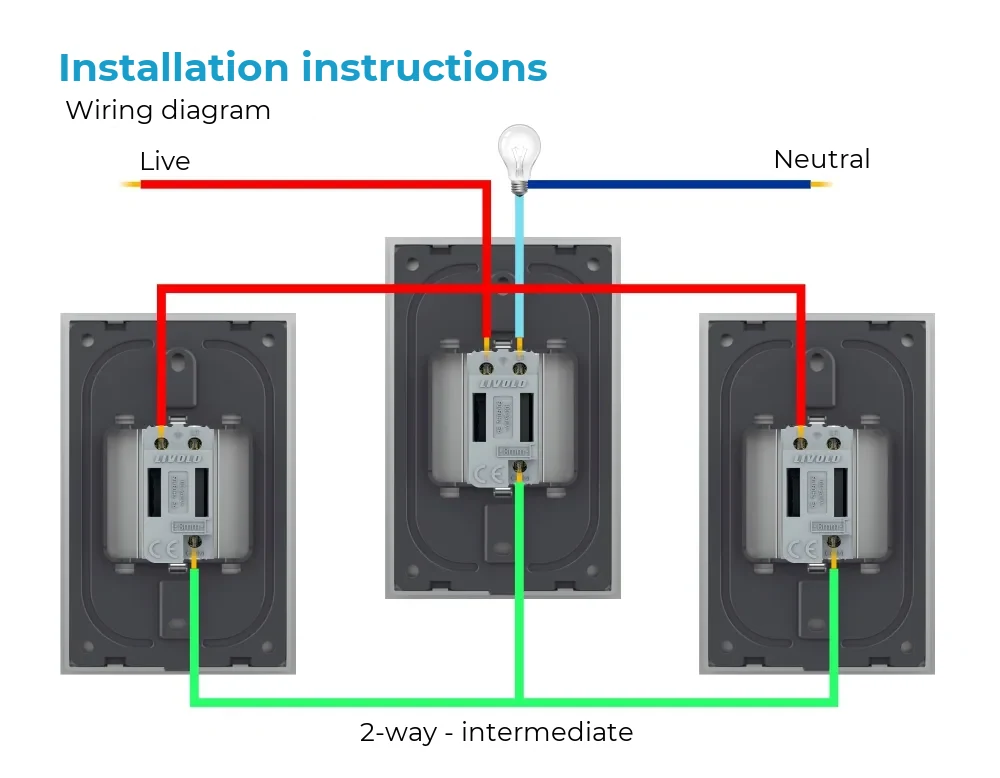

Wiring Diagram

The module supports 2-way and intermediate (cross) switching, allowing one light to be controlled from multiple locations.

Live (phase) and neutral connections to the light
Traveller wiring between 2-way (end) and intermediate (cross) switches

Compatible Bulbs

Suitable for loads from 1W to 1000W.

Incandescent
Fluorescent
Compact fluorescent
Spot
LED

Installation Steps

1. Open the package.
2. Connect the wires and tighten the screws.
3. Use the 2 screws to fix the frame.
4. Fit the front panel (it clicks into place).

Tested for Quality and Durability

Toughened glass panels with surface hardness greater than 4H, keeping the switch clean and scratch-resistant over the long term
Galvanised parts show no signs of corrosion after high-temperature and saturated salt spray testing
Tested under extreme high, low and constant temperature and humidity conditions, with surface and functionality remaining as new
Endurance tests indicate an average lifespan of over 100,000 operations
High-voltage resistance tested

Easy and Convenient

Livolo makes your life easier.

In detail

Livolo Touch 2-Way / Intermediate Light Switch Module – 1 Gang, 1M Italian Standard, Zigbee EC – detail 1
