Livolo Single TV Socket with Glass Frame
A variety of products with a simple design and an outstanding mechanism. This single TV socket comes with an elegant glass frame, shown in white, black, gold and grey finishes.
Livolo
Livolo Single TV Socket with Glass Frame – New Series
SKU: VL-P9-FCTV-3W
AED 43
In stock
1
- Delivery across all seven emirates. Free on orders over AED 750.
- Order now, we confirm availability and delivery with you before you pay.
Livolo single TV socket with a glass frame, available in White, Gold, Grey and Black, for 3-module wall boxes with 85 mm screw spacing.
Product details
Livolo TV socket with a glass frame, ideal for the bedroom, office or children's room. Modern, high-quality products. This product is compatible with 3-module wall boxes with a screw spacing of 85 mm.
Highlights
02

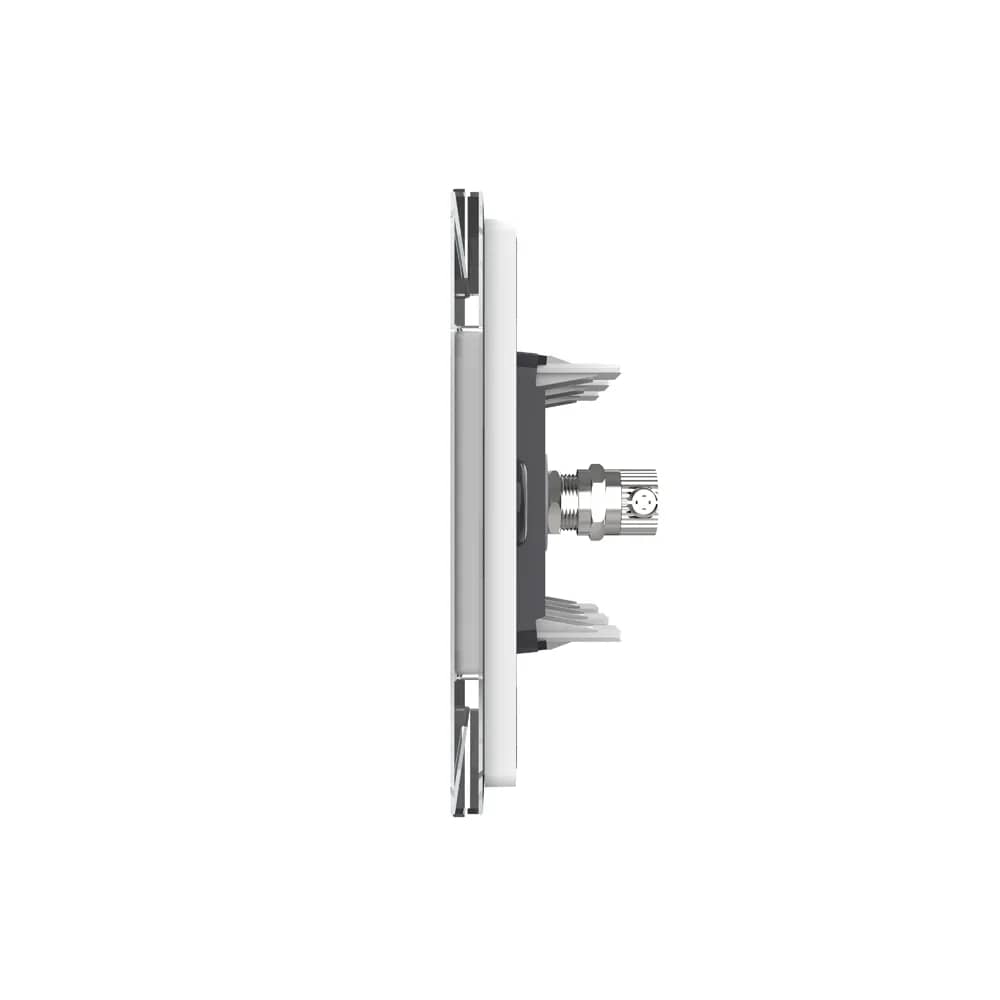

Structure
The socket is made up of three parts: a glass frame, a TV socket module and a metal mounting frame.
- Glass frame
- TV socket module
- Metal frame
- Screw fixing system (85 mm spacing)
03

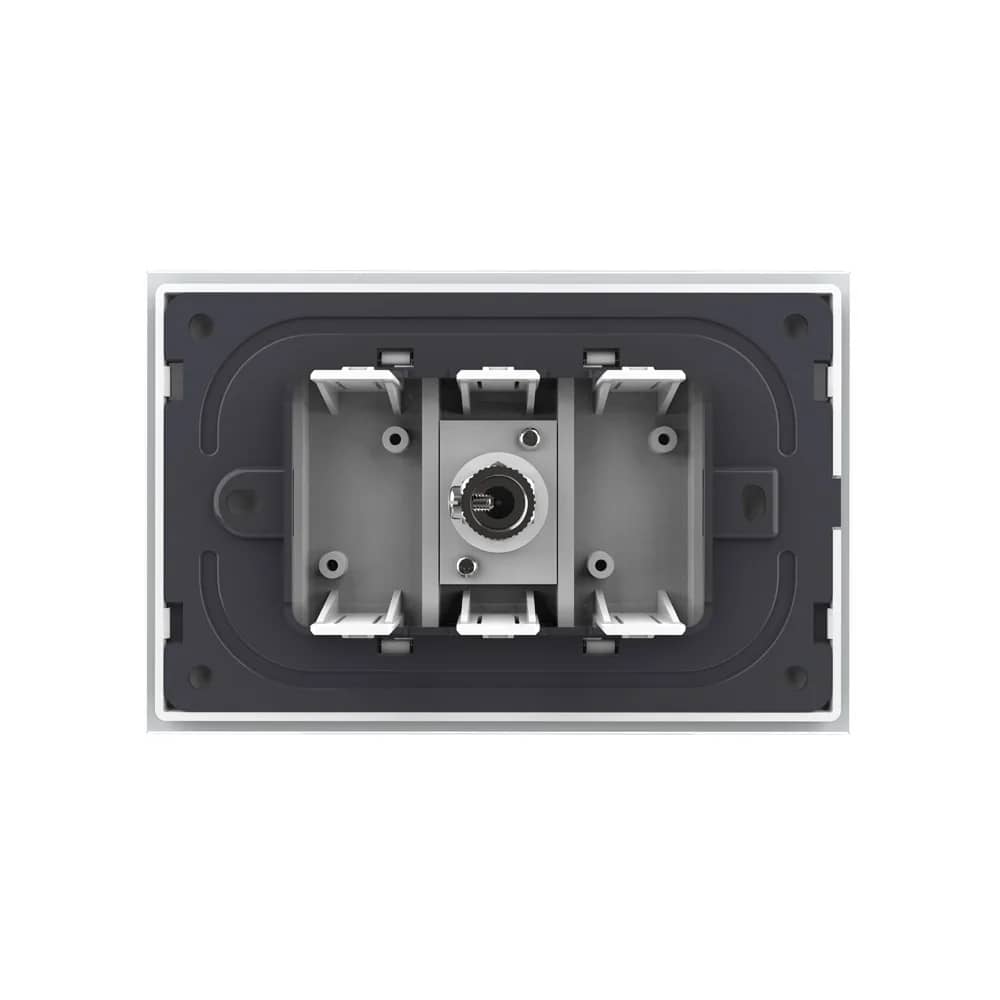

Dimensions
- Width: 119 mm
- Height: 78 mm
- Frame thickness: 4 mm
- Depth behind frame: 24 mm
- Side detail: 8 mm
- Screw fixing spacing: 85 mm
04
Wiring Diagram for TV Sockets
Follow these steps to connect the coaxial cable to the TV socket.
- 1. Strip 15 mm from the outer jacket of the coaxial cable and fold back the braided wire mesh around the cable.
- 2. Strip 15 mm of the insulation around the centre conductor and fit the metal ring.
- 3. Insert the connector between the braided wire and the insulating material, then crimp the metal parts with pliers to secure them.
- 4. Screw the wired connector into the TV socket.
