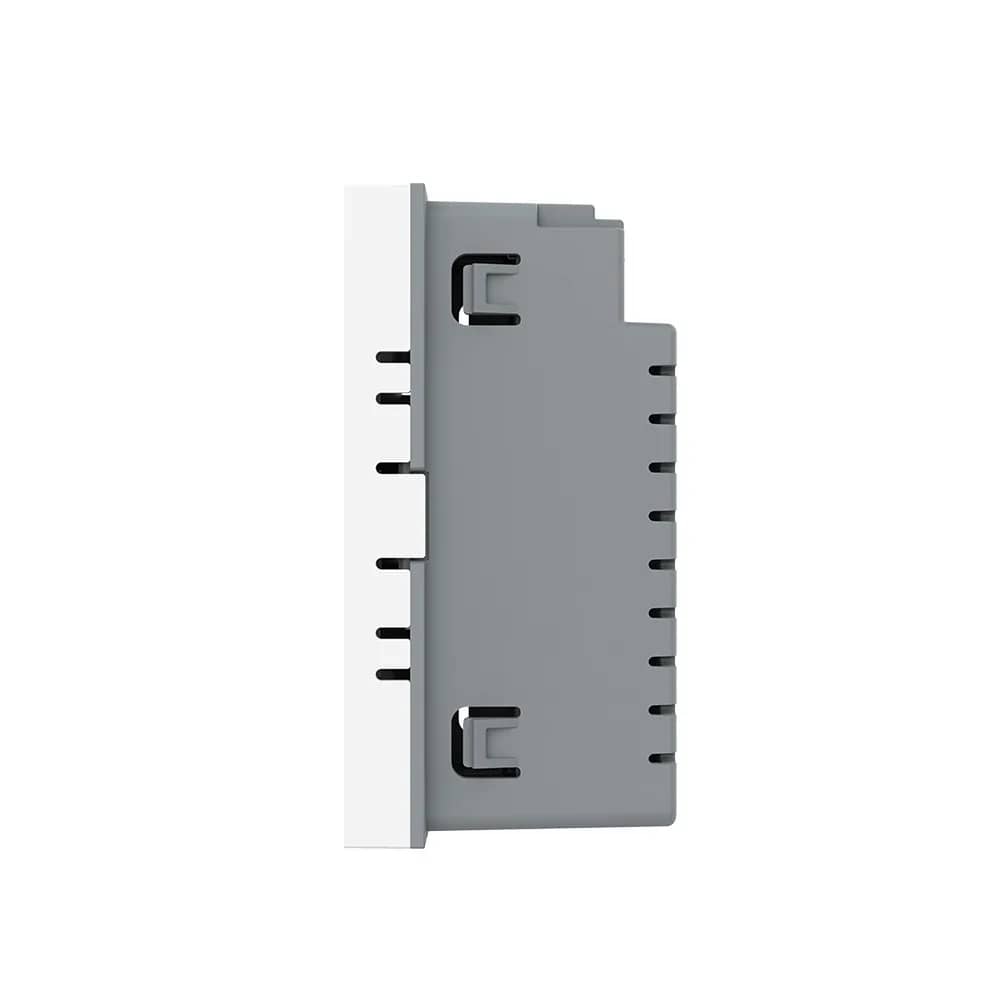

Livolo 2 Gang 2-Way / Intermediate Touch Light Switch Module – Italian Standard, New Series – White — image 3

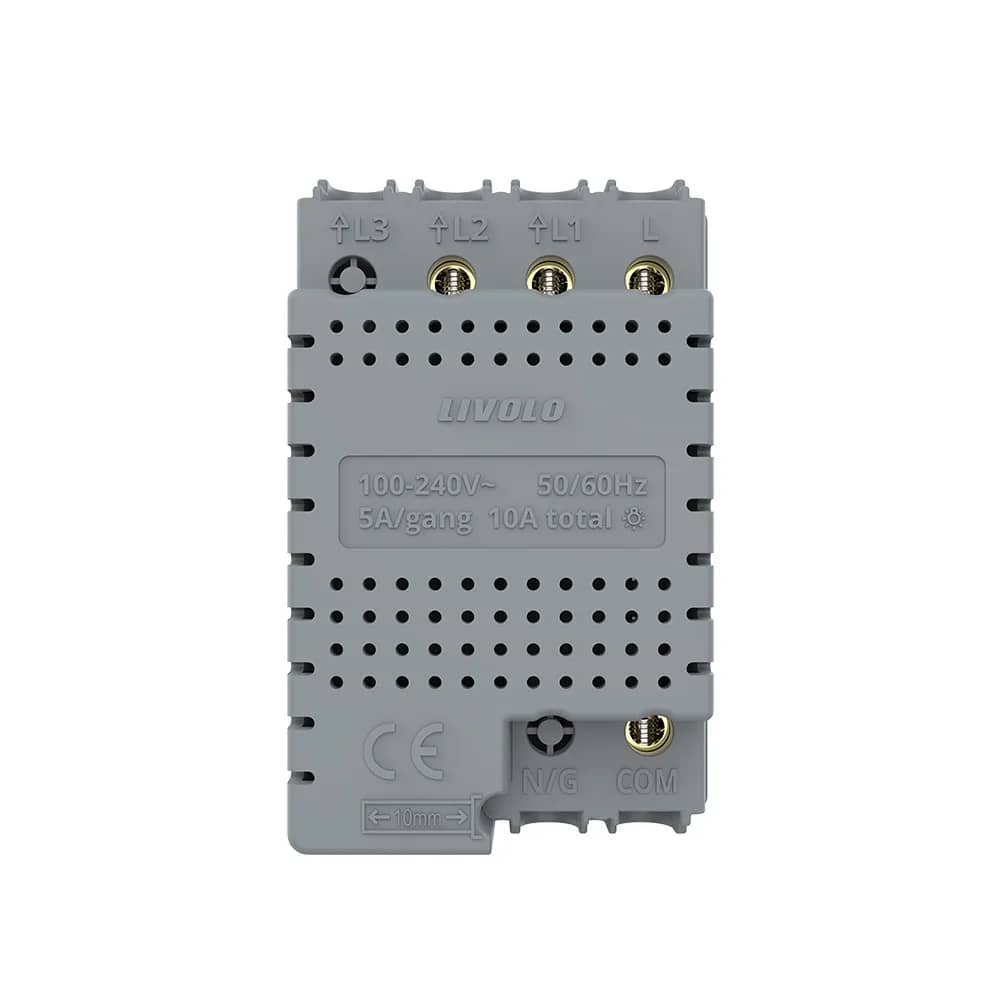

Livolo 2 Gang 2-Way / Intermediate Touch Light Switch Module – Italian Standard, New Series – White — image 4
1/4
Livolo

Livolo 2 Gang 2-Way / Intermediate Touch Light Switch Module – Italian Standard, New Series

SKU: C9-VL-FC2S-3WP

AED 58

In stock

Colour: White
1
  • Delivery across all seven emirates. Free on orders over AED 750.
  • Order now, we confirm availability and delivery with you before you pay.

Livolo 2 gang 2-way/intermediate touch switch module, Italian standard, new series – resistant to scratches, moisture and dust.

Product details

Livolo 2 gang 2-way (staircase) / intermediate touch light switch module, Italian standard, new series, resistant to scratches, moisture and dust. Give your home an extra touch of refinement and comfort.

A maximum of 3 switches can be connected in the circuit (intermediate)

Highlights

Livolo 2 Gang 2-Way / Intermediate Touch Light Switch Module – Italian Standard, New Series – Double Two-Way / Intermediate Touch Switch Module
01

Double Two-Way / Intermediate Touch Switch Module

A double (2 gang) two-way / intermediate switch module with Livolo touch control, built to the Italian standard. Simple design, outstanding mechanism.

  • 2 gang touch switch module
  • Two-way / intermediate operation
  • Italian standard
  • Available to match panels in several colours
Livolo 2 Gang 2-Way / Intermediate Touch Light Switch Module – Italian Standard, New Series – Important Compatibility Notice
02

Important Compatibility Notice

Two-way switches only work when installed and synchronised with other Livolo two-way products. Livolo products do not work with other brands. Images are for illustration only; the price does not include the Livolo panel, which must be purchased separately.

  • Works only with other Livolo two-way products
  • Not compatible with other brands
  • Glass panel not included – sold separately
Livolo 2 Gang 2-Way / Intermediate Touch Light Switch Module – Italian Standard, New Series – Touch Sensor
03

Touch Sensor

The touch sensor is extremely precise, identical to the sensor in a smartphone.

Livolo 2 Gang 2-Way / Intermediate Touch Light Switch Module – Italian Standard, New Series – Structure
04

Structure

The complete switch consists of an elegant crystal panel, the switch module and a metal frame. Only the switch module is included.

  • Elegant crystal glass panel (not included)
  • Switch module (included)
  • Metal frame (not included)
  • Screw fixing system: 85 mm
Livolo 2 Gang 2-Way / Intermediate Touch Light Switch Module – Italian Standard, New Series – Dimensions
05

Dimensions

  • Width: 119 mm
  • Height: 78 mm
  • Depth: 4 mm / 24 mm / 8 mm (as shown in diagram)
  • Screw fixing distance: 85 mm
Livolo 2 Gang 2-Way / Intermediate Touch Light Switch Module – Italian Standard, New Series – Wiring Diagram
06

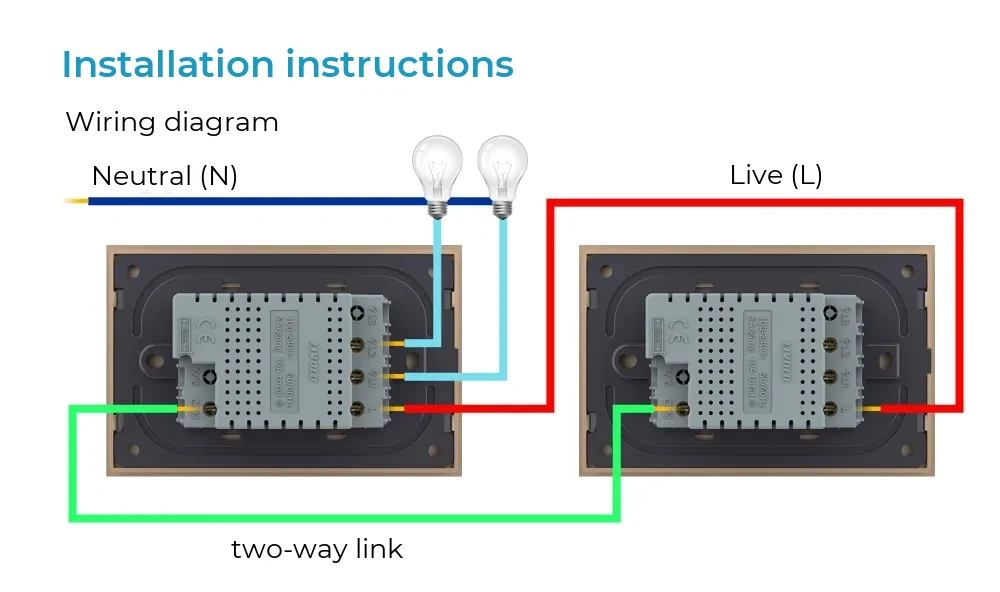

Wiring Diagram

Two switches are connected to control the lights from two locations, with Neutral (N) to the lamps, Live (L) to the switches and a two-way link between the modules.

  • Neutral (N)
  • Live (L)
  • Two-way connection between switches
07

Installation Steps

  • 1. Open the package.
  • 2. Connect the wires and tighten the screws.
  • 3. Use the 2 screws to fix the frame.
  • 4. Fit the front panel (click into place).
