Livolo 1 Gang Touch Light Switch Module 1M – Zigbee EC, Italian Standard

SKU: C9-VL-FC1Z2-1WP

AED 55

In stock

Colour: White
1
  • Delivery across all seven emirates. Free on orders over AED 750.
  • Order now, we confirm availability and delivery with you before you pay.

Livolo 1M 1 gang touch switch module with Zigbee EC: control by touch, smartphone app or voice via Alexa and Google Home (hub required).

Product details

Livolo 1 gang touch light switch module 1M, Zigbee EC protocol, Italian standard, new series, resistant to scratches, moisture and dust. Give your home an extra touch of refinement and comfort.

It can be operated:

– Directly from the switch, on/off by touch;

– From your smartphone using the Livolo ZigBee EC Hub via the Livolo app (hub sold separately);

– By voice with Google Home or Amazon Alexa. To connect the switch to Google Home or Amazon Alexa, you need the Livolo ZigBee EC Hub.

Highlights

Livolo 1 Gang Touch Light Switch Module 1M – Zigbee EC, Italian Standard – Touch Sensor
01

Touch Sensor

The touch sensor is extremely precise, identical to the sensor used in a smartphone.

  • Glass frame not included – must be purchased separately
Livolo 1 Gang Touch Light Switch Module 1M – Zigbee EC, Italian Standard – Compatible Bulbs
02

Compatible Bulbs

Works with loads from 1W to 1000W across a wide range of bulb types.

  • Incandescent
  • Fluorescent
  • Compact fluorescent
  • Spot
  • LED
Livolo 1 Gang Touch Light Switch Module 1M – Zigbee EC, Italian Standard – Wiring Diagram
03

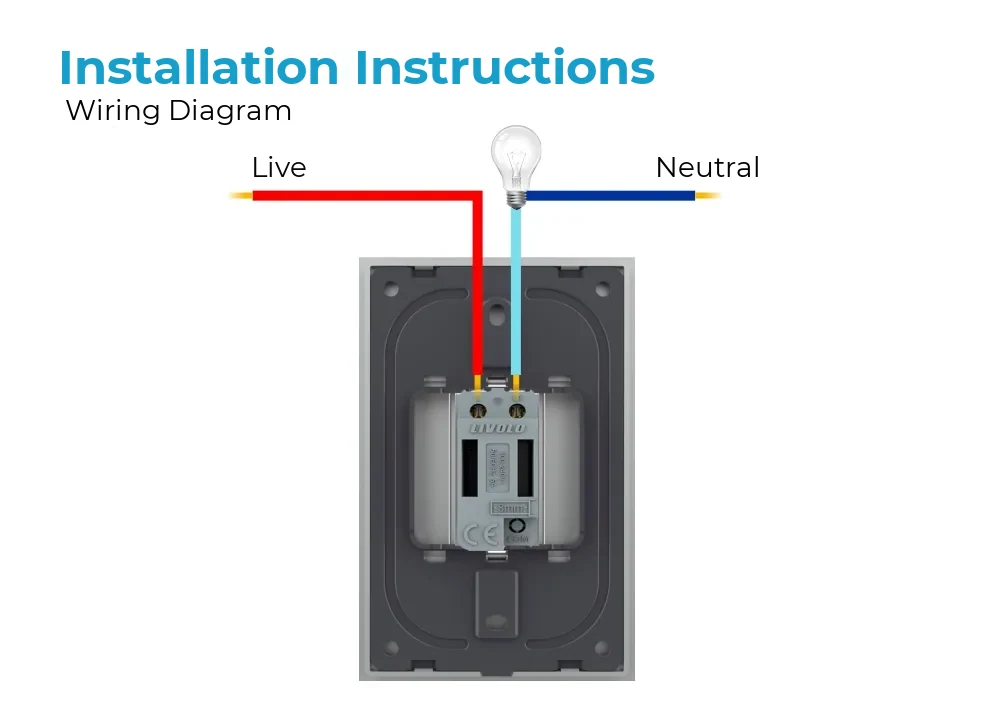

Wiring Diagram

Connect the live (phase) wire to the switch module; the switched output goes to the light, which is connected to neutral.

  • Live (phase): to switch module
  • Neutral: to the light
Livolo 1 Gang Touch Light Switch Module 1M – Zigbee EC, Italian Standard – Installation Steps
04

Installation Steps

  • 1. Open the package.
  • 2. Connect the wires and tighten the screws.
  • 3. Use the 2 screws to fix the frame.
  • 4. Fit the front panel – it clicks into place.
05

Durability

  • Toughened glass panels with surface hardness greater than 4H, keeping the switch clean and scratch-resistant over the long term
  • Galvanised parts show no signs of corrosion after high-temperature and saturated salt spray testing
  • Surface and functionality remain as new after testing in extreme high, low and constant temperatures and humidity
  • Endurance tests show an average lifespan of over 100,000 uses
  • High-voltage resistance tested
