Wi-Fi Thermostat for Electric Underfloor Heating
The BeOk TR8B-WIFI-EP is a Wi-Fi thermostat designed for electric underfloor heating systems.
BeOk
BeOk Wi-Fi Thermostat for Electric Underfloor Heating TR8B-WIFI-EP
SKU: TR8B-WIFI-EP
AED 218
In stock
1
- Delivery across all seven emirates. Free on orders over AED 750.
- Order now, we confirm availability and delivery with you before you pay.
BeOk Wi-Fi touchscreen thermostat for electric underfloor heating, controlled via Tuya Smart or Smart Life, with child lock.
Product details

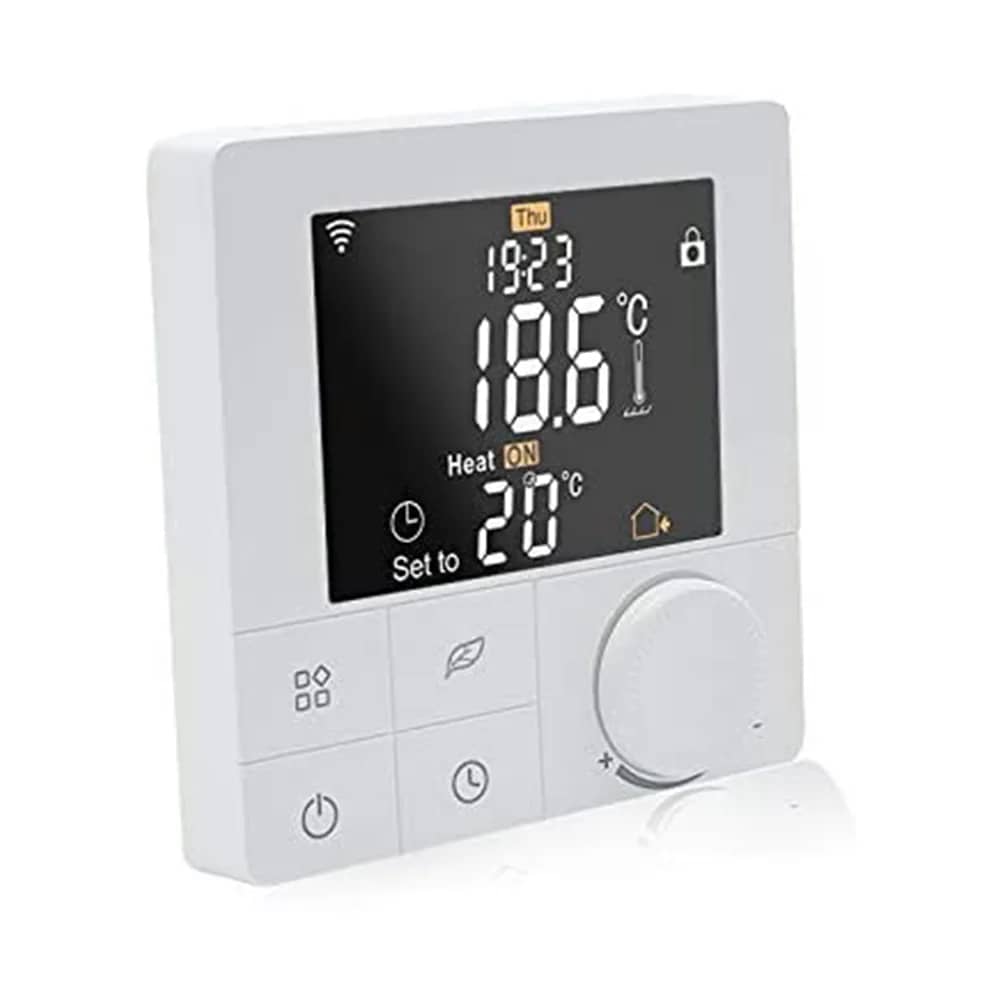

The BeOk TR8B-WIFI-EP thermostat features a touch interface (touchscreen) with a black backlit display. Once connected to your Wi-Fi router, the system can be accessed from your mobile phone (using apps such as “Tuya Smart” and “Smart Life”) or any other mobile device able to monitor and control the thermostat’s functions. The device is used to control the temperature in your home and switch on heating devices, designed for underfloor heating systems, and also offers a lock function to prevent use by children.
Highlights
02
Key Benefits
- Control via the mobile app
- Can be locked to keep the initial settings
- Energy-saving function
03
Control from Your Smartphone
Monitor and control the thermostat's functions from your smartphone using the "Smart Life" app, available on Google Play and the App Store.
04
Energy Saving and Settings Memory
The thermostat features energy-saving functions and saves its settings in the event of a power cut, so there is no need to set it up again when it restarts.
05
Safety and Comfort
Children can be prevented from changing the settings thanks to the lock function.
06
Dimensions
- Width: 86 mm
- Height: 86 mm
- Total depth: 43.6 mm (11 mm front + 32.6 mm rear)
07
Installation and Wiring
The thermostat mounts onto a wall box and is secured with screws, as shown in the installation diagrams.
- Terminals 1–2 (L, N): power supply AC85-265V
- Terminals 3–4 (N1, L1): heating load, 16A Max
- Terminals 6–7 (NTC1, NTC2): external sensor
