BeOK TGT70WIFI-EP Wi-Fi Thermostat for Electric Underfloor Heating – Smart Life App

Smart Thermostat TGT70WiFi-Ep

The Beok TGT70WiFi-Ep is a smart thermostat for electric underfloor heating systems using electric heating cable or electric heating mats, with a maximum load of 16A. It does not work with gas boilers.

• For electric underfloor heating cable or heating mats
• Maximum load: 16A
• Not compatible with gas boilers

Key Features

• Memory function: all settings are saved, so after a power cut you won't need to reset the thermostat when power returns
• Programmable to suit you, e.g. 22°C from 9:00–17:00 and 25°C from 17:00–9:00
• Simple installation and Wi-Fi connection
• Easy to programme and use via the Smart Life mobile app or directly on the unit

Design and Sensor Modes

An elegant glass panel that suits any home, with 3 operating modes for the built-in sensors.

• Room (ambient) sensor
• Floor sensor
• Room + floor sensor
• Internal sensor plus external floor sensor

App Control

Save money and enjoy your smart home. All you need to do is connect the thermostat to your phone.

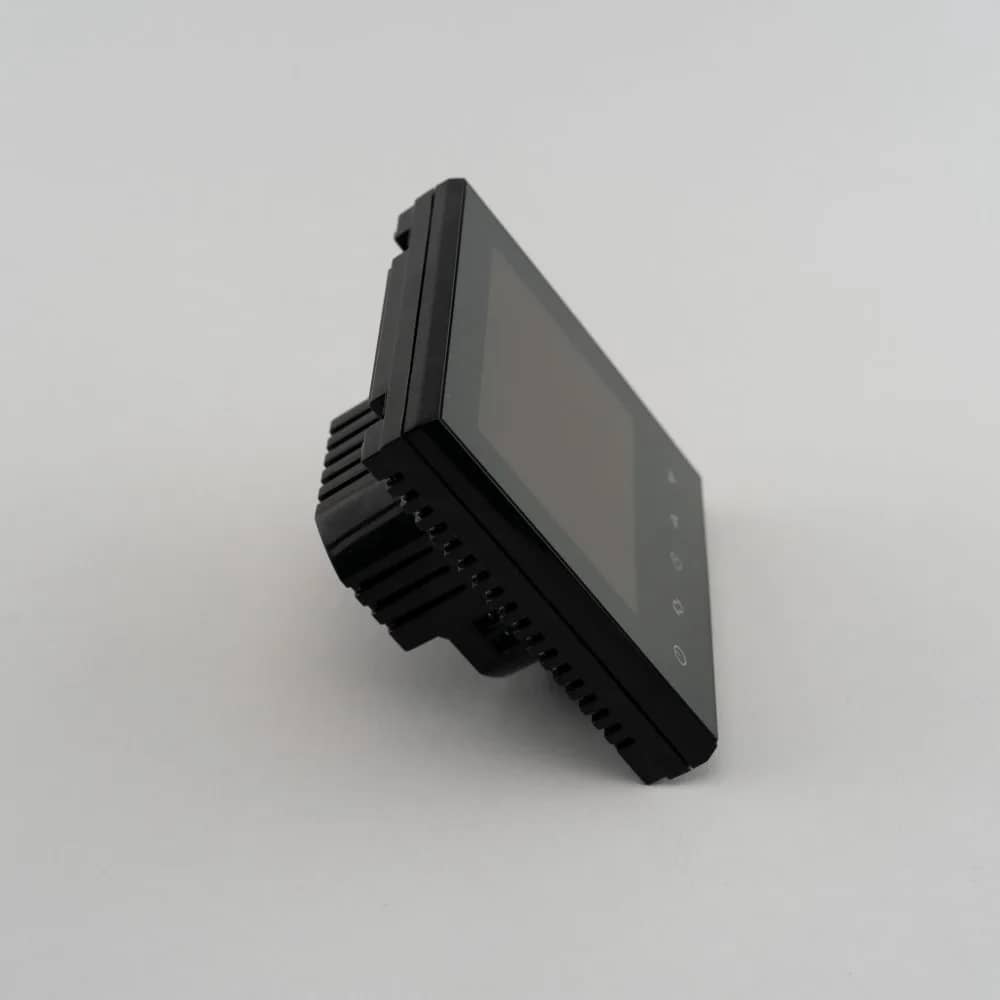

Dimensions

• Front panel: 86 mm x 86 mm
• Total depth: 42 mm
• Rear body height: 50 mm
• Rear body depth: 26 mm

Installation

• 1. Gently open the panel with a screwdriver
• 2. Connect the power wires according to the wiring diagram and fix the mounting plate with two screws
• 3. Refit the touch panel
• 4. Press the power button to switch the thermostat on
• Remove the protective film before using the thermostat
