BeOk TGT70WIFI-AC4 Wired Air Conditioning Thermostat – HVAC Compatible, Smart Life App

Compatible with 2-Pipe and 4-Pipe Systems

The thermostat can be wired to fan coil units in either a 2-pipe or a 4-pipe system, controlling the fan and the 3-way mixing valves for heating and cooling.

• 2-pipe system: one heating or cooling coil supplied with hot or chilled water via a 3-way mixing valve
• 4-pipe system: separate cooling coil (chilled water) and heating coil (hot water), each with its own 3-way mixing valve
• Controls fan speed: Low, Mid, Hi

Wiring

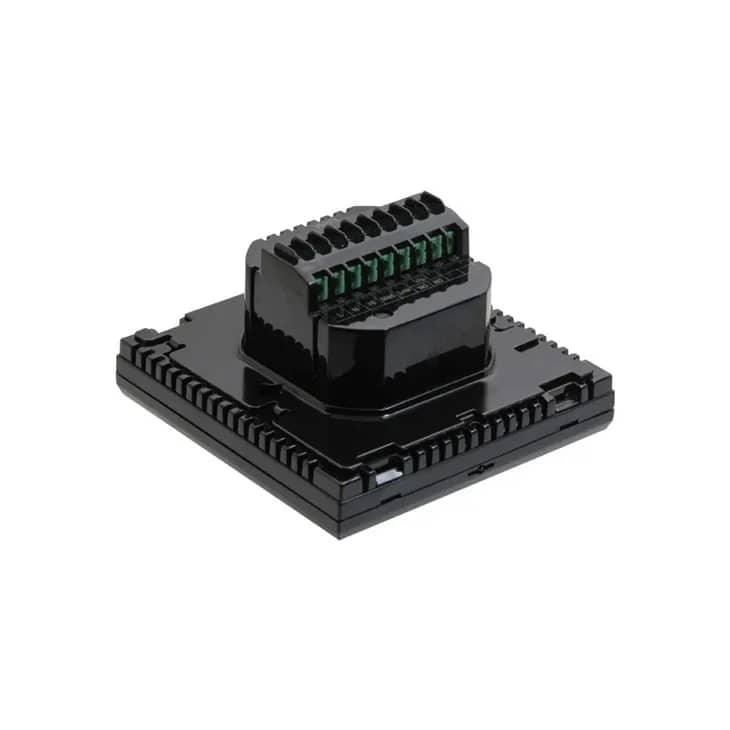

Power supply AC230V 50/60HZ, connected via a numbered terminal block.

• Power: AC230V 50/60HZ
• Terminals: L, N, Hi, Mid, Low fan outputs
• 2-pipe: valve output Val1 (NO/NC)
• 4-pipe: valve outputs Val1 and Val2 (NO/NC)

Designed for Air Conditioning

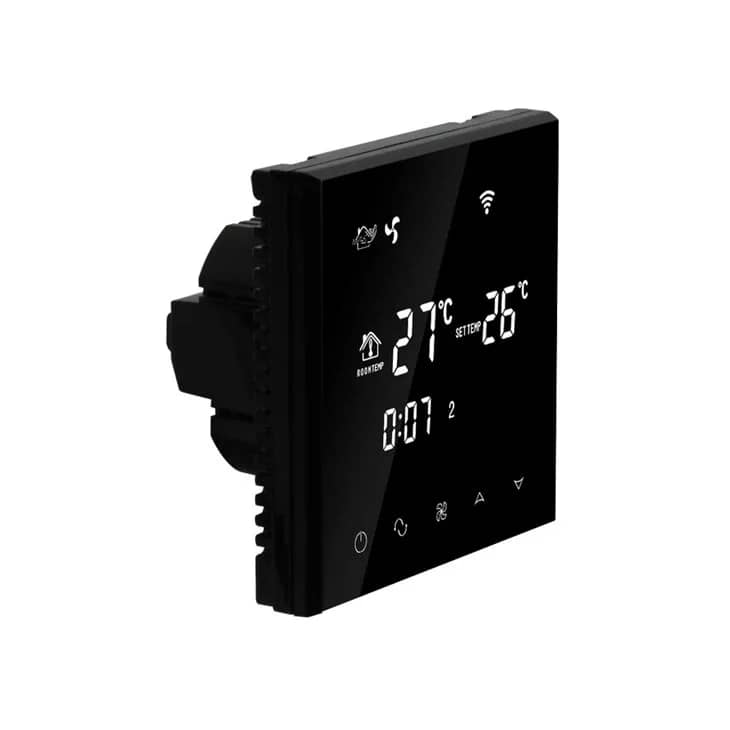

A sleek black wall-mounted thermostat with a clear display showing room and set temperature, time and fan status, ideal for controlling your air conditioner.
