BeOk TGR85WIFI-WPB Gas Boiler Heating Thermostat
A smart thermostat for gas boiler heating systems, with a mirror-finish touch display.
BeOk
BeOk TGR85-WIFI-WPB Wi-Fi Thermostat for Gas Boiler Heating – Programmable, App Control
SKU: TGR85-WIFI-WPB
AED 210
In stock
1
- Delivery across all seven emirates. Free on orders over AED 750.
- Order now, we confirm availability and delivery with you before you pay.
Programmable BeOk Wi-Fi thermostat for gas boilers with touchscreen and Smart Life app control, 5+2 day schedule with 6 time periods a day.
Product details
The BeOk TGR85-WIFI-WPB Wi-Fi thermostat can be operated directly via its touchscreen interface, or you can control the temperature and thermostat functions from your smartphone using the “Smart Life” app, available on Google Play / App Store.
The thermostat can be programmed to suit your preferences. For example, during the day from 9:00 – 17:00 the temperature can be set to 22°C, while from 17:00 – 9:00 the temperature at home can be 24°C. The thermostat is 5+2 day programmable, with 6 time periods per day.
Highlights
02

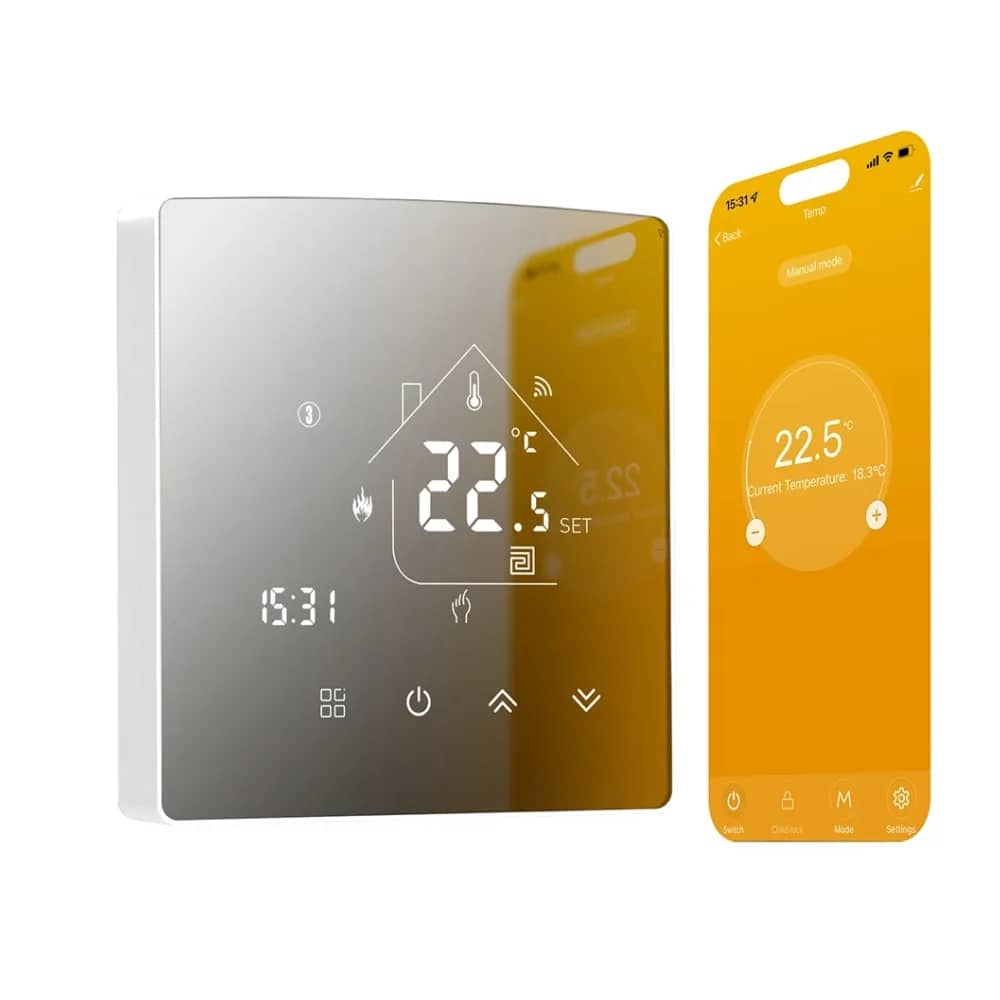

Mobile App Control
Control the thermostat remotely using the Smart Life mobile app.
- Remote control via the Smart Life app
03

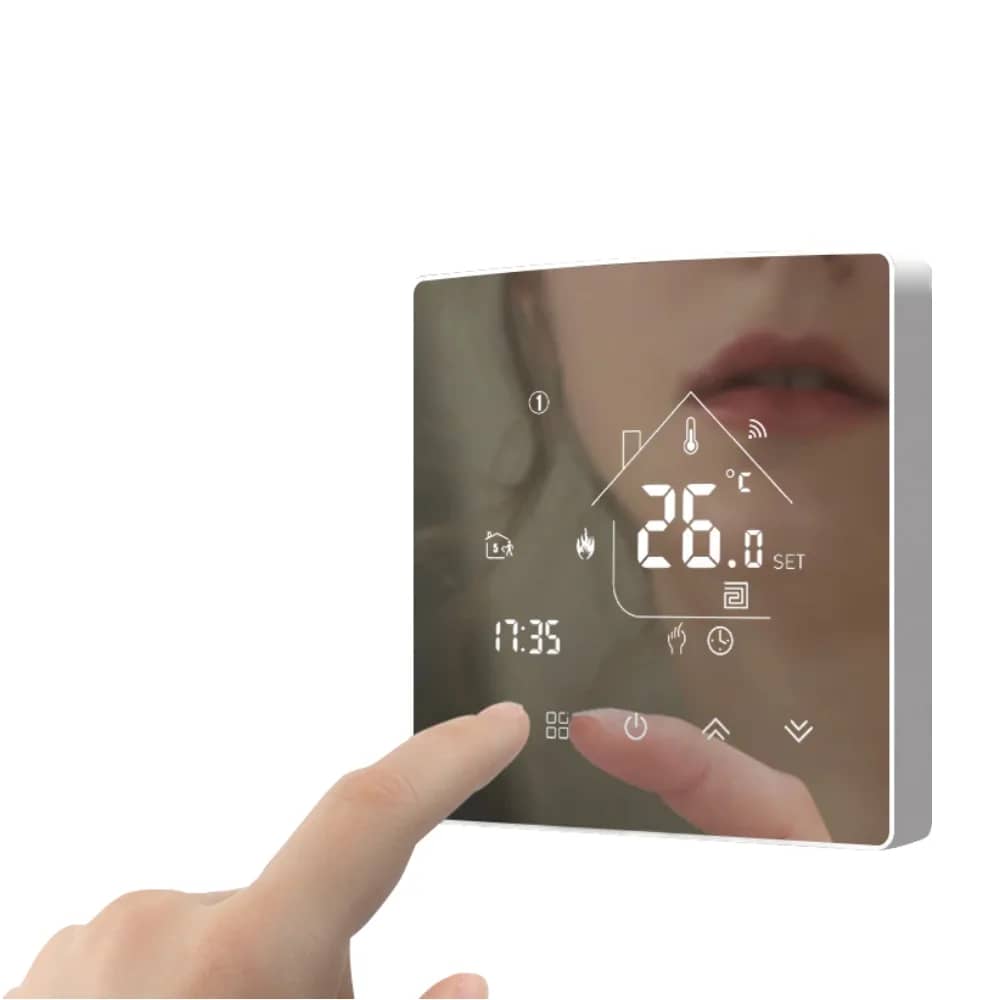

Voice Control
Control the thermostat with the Amazon Alexa and Google Home voice assistants.
- Works with Amazon Alexa
- Works with Google Home
- Example: "Alexa, set the Beok thermostat to 24 degrees."
04

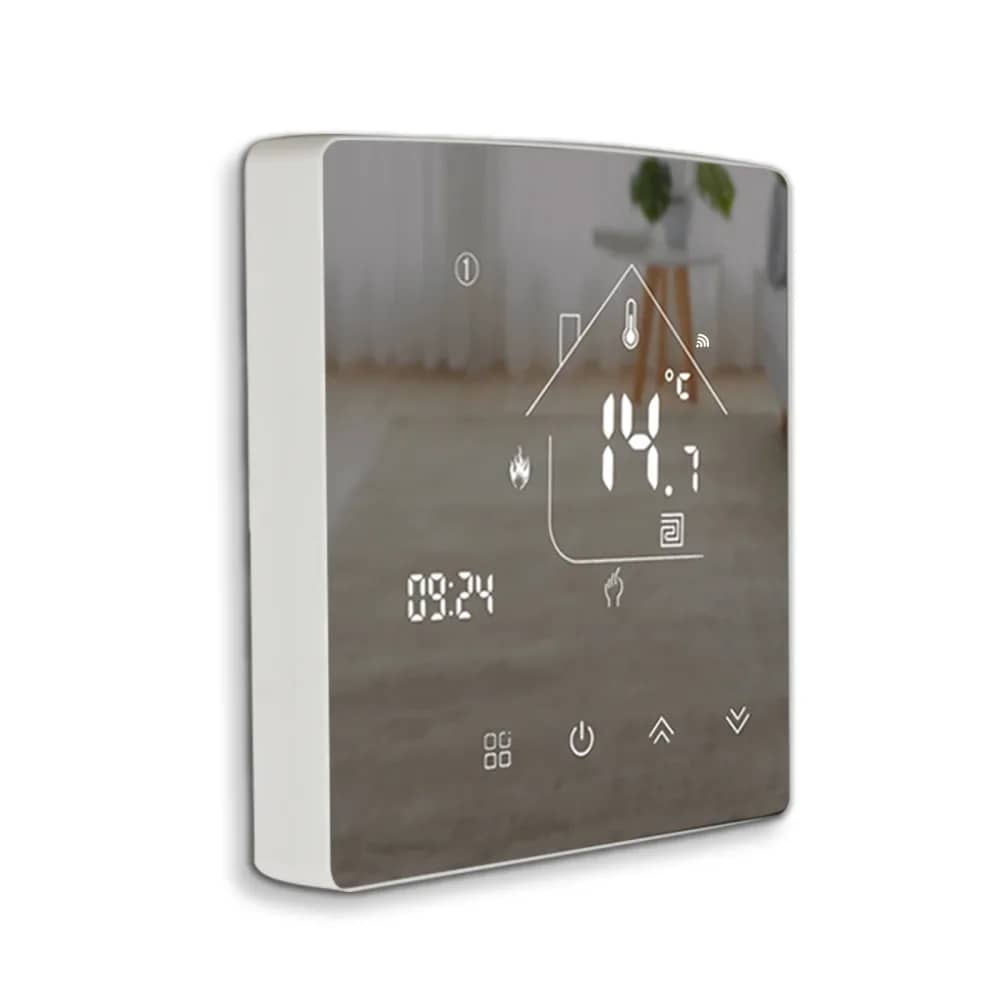

Thermostat Display
The display shows all key information at a glance.
- Days of the week
- Programmed periods
- Heating indicator
- Clock
- Menu buttons
- Thermostat lock
- Room temperature
- Modes
05

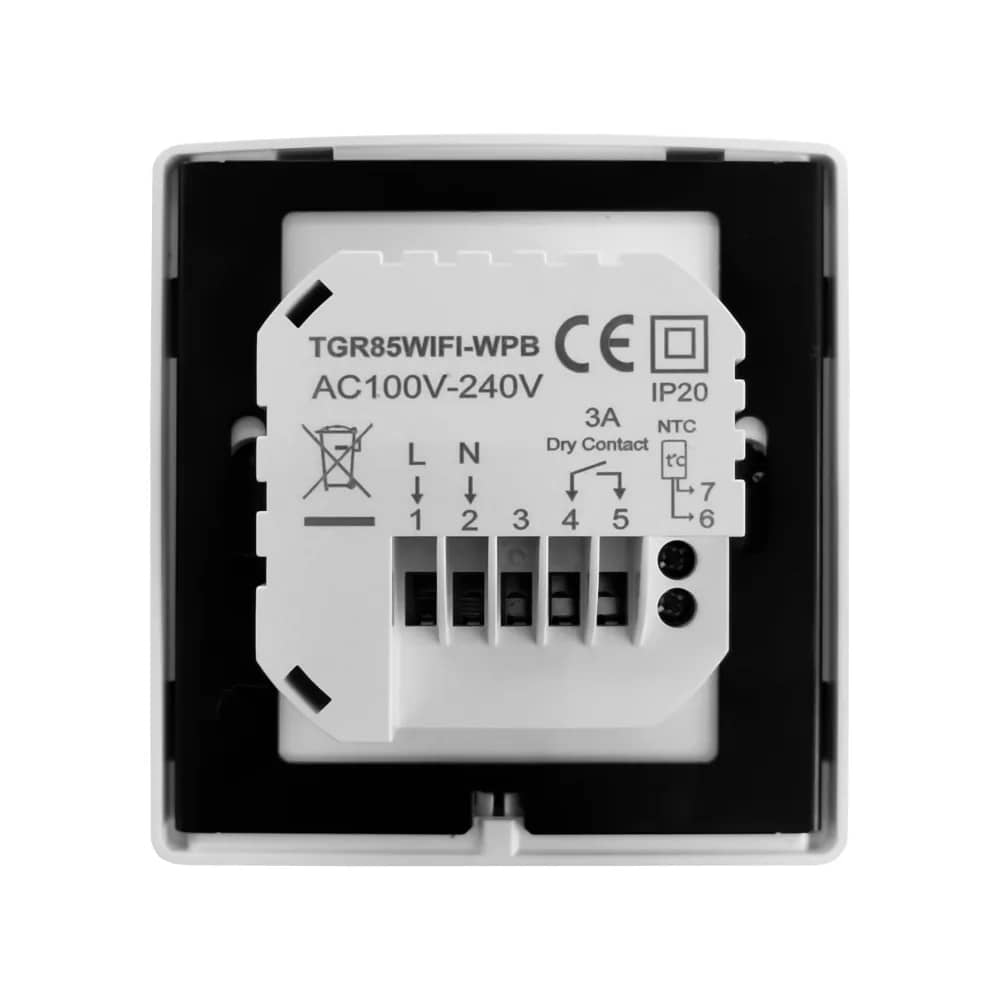

Wiring Scheme
Power supply connects to terminals 1 (L) and 2 (N); the gas boiler connects to the 3A dry contact on terminals 4 and 5.
- Power supply: AC 100-240V
- Terminal 1: L (live)
- Terminal 2: N (neutral)
- Terminals 4–5: 3A dry contact to boiler
- Terminals 6–7: NTC sensor
06
Installation Steps
- Use a screwdriver and turn as shown by the arrow.
- Detach the metal frame from the thermostat.
- Use the 2 screws to fix the metal frame.
- Connect the wires according to the wiring scheme, then fit the thermostat.
07
Technical Data
- Model: TGR85WIFI-WPB
- Power supply: AC100V-240V
- Output: 3A dry contact
- Protection rating: IP20
- Dimensions: 85 x 90 mm
- Total depth: 40 mm
- Depth of rear section: 26 mm
- Rear module height: 50 mm
- Distance between screws: 60 mm
