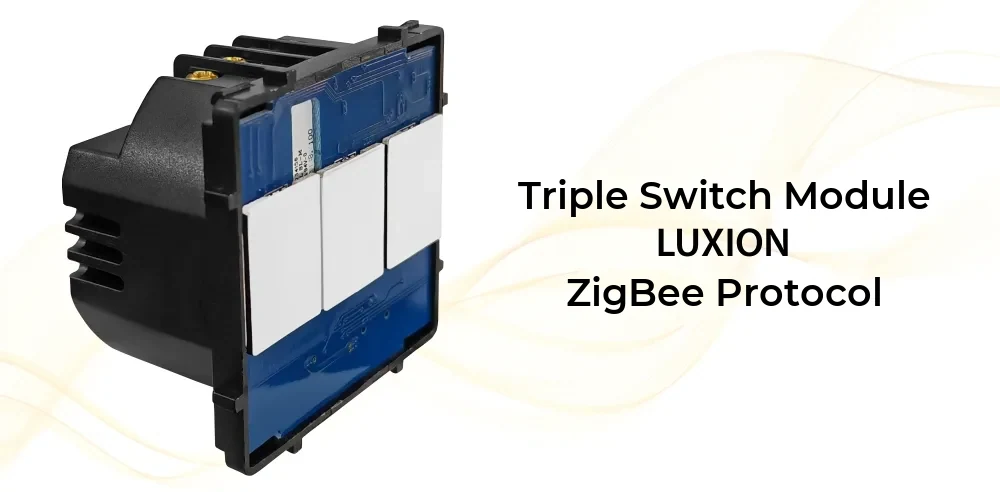

LUXION Triple Switch Module – ZigBee Protocol
A 3-gang LUXION switch module using the ZigBee protocol, designed to control three separate lighting circuits.
Luxion
Luxion Zigbee Touch Light Switch Module – 3 Gang LX-ZT-301
SKU: LX-ZT-301
AED 103
In stock
1
- Delivery across all seven emirates. Free on orders over AED 750.
- Order now, we confirm availability and delivery with you before you pay.
Luxion 3 gang Zigbee touch switch module for Luxion glass frames and panels, with Alexa and Google Home control via the Luxion hub.
Product details
The Luxion 3 gang light switch module with Zigbee protocol can be mounted on its own on a Luxion panel, or together with other Luxion sockets and switches on a Luxion glass frame.
Luxion Zigbee switches work only together with the Luxion Zigbee hub. Via the hub, they can also be controlled with the Amazon Alexa or Google Home voice assistants.
Compatible only with Luxion glass frames and panels.
Highlights
02
Installation – Wiring Diagram
Connect the live (L) wire to the L terminal and the neutral (N) to the lights. Each of the three lights connects to its own output terminal: L1, L2 and L3.
- Live (L): L terminal
- Neutral (N): connected to the lights
- Light outputs: L1, L2, L3
03
Technical Data
- Power supply: 90V-250V AC 50/60HZ
- Load power: 1000W/gang
- Compatible operating system: iOS / Android
- Wireless type: Zigbee 2.4 GHZ
- Wireless standard: IEEE 802 15.4
- Working temperature: -20°C ~ 70°C
- Wireless consumption: <0.2W
- Working humidity: ≤95%
- Markings: CE, UKCA, FC, RoHS
04
Dimensions
The module is secured with a screw fixing system.
- Screw fixing spacing: 60 mm
- Front: 50 mm x 50 mm
- Depth: 5 mm + 26 mm
- Body height: 49 mm
05
Not Included
The module is supplied without a front panel or frame.
- Glass panel (not included)
- Metal frame (not included)
