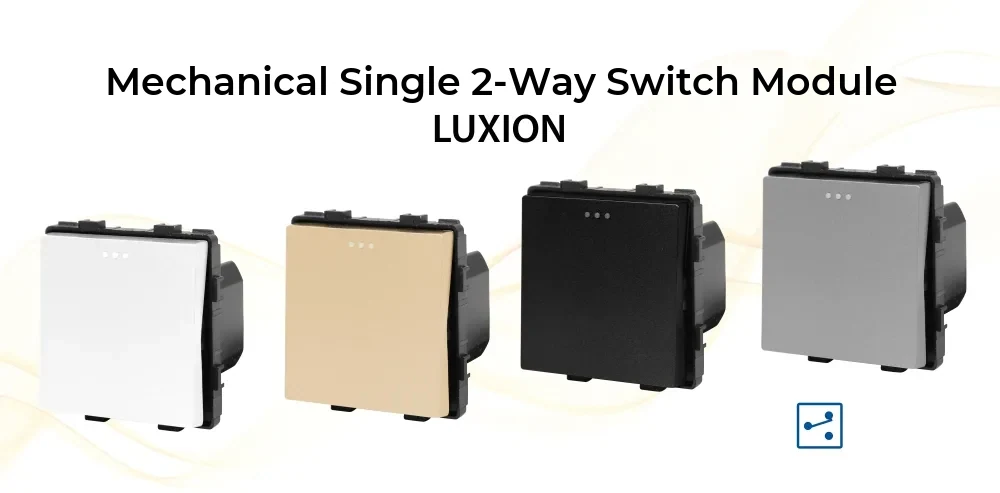

LUXION single mechanical 2-way (staircase) switch module, shown in white, gold, black and grey finishes.
Luxion
Luxion Mechanical 1 Gang 2-Way (Staircase) Light Switch Module
SKU: LX-MP002W
AED 6
In stock
1
- Delivery across all seven emirates. Free on orders over AED 750.
- Order now, we confirm availability and delivery with you before you pay.
Compact, minimalist Luxion mechanical 1 gang 2-way switch module in White, Gold, Grey or Black, for Luxion glass frames.
Product details
The Luxion mechanical 1 gang 2-way (staircase) light switch module features a compact, elegant and minimalist design. Its structure is durable and the products do not fade over time. It is a practical product, made from quality, long-lasting materials.
Compatible only with Luxion glass frames
Highlights
02
Installation: Wiring Diagrams
The banners show three wiring layouts using Neutral (N) and Live (L) to control one light from multiple locations.
- Diagram 1: two 2-way (staircase) switches controlling one light
- Diagram 2: 2-way switch + intermediate (cross) switch + 2-way switch
- Diagram 3: 2-way switch + two intermediate (cross) switches + 2-way switch
03

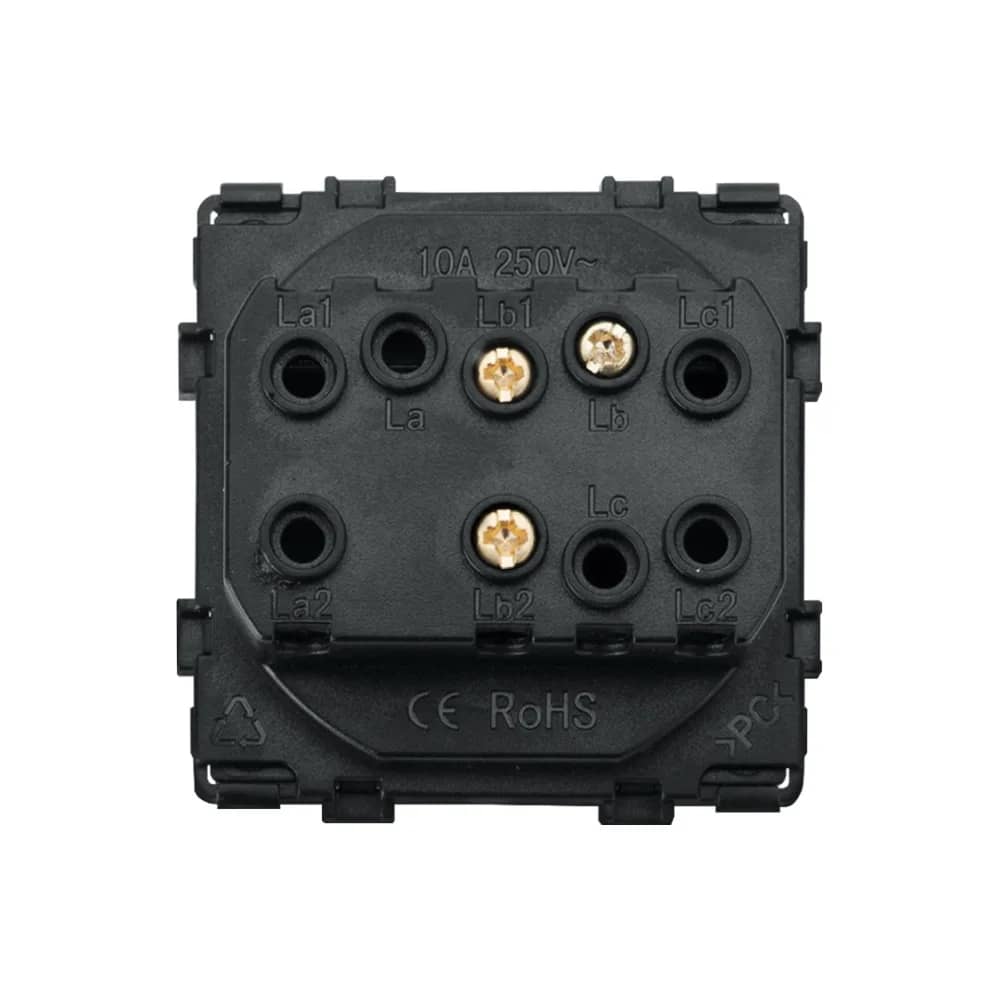

Dimensions
The module is secured with a screw-fixing system. The glass frame and metal frame are not included.
- Front: 50 mm x 50 mm
- Height (rear body): 49 mm
- Depth: 15 mm (front) + 20 mm (rear)
- Screw fixing distance: 60 mm
- Glass frame: not included
- Metal frame: not included
