Luxion

Luxion Single Socket Module – Without Glass Frame

SKU: LX-MP010W

AED 9

In stock

Colour: White
1
  • Delivery across all seven emirates. Free on orders over AED 750.
  • Order now, we confirm availability and delivery with you before you pay.

Luxion single wall socket module that combines with other Luxion sockets or a switch on a Luxion tempered glass frame or panel.

Product details

The Luxion single socket module can be mounted together with other Luxion single or media sockets on a glass frame, or together with a light switch on a glass panel.

Compatible only with Luxion glass frames

Highlights

Luxion Single Socket Module – Without Glass Frame – LUXION Single Socket Module
01

LUXION Single Socket Module

A single socket module from the LUXION range, supplied without a glass frame. Shown in white, gold, black and grey finishes.

  • Single socket module
  • Glass/aluminium frame not included
  • Metal mounting frame not included
Luxion Single Socket Module – Without Glass Frame – Installation – Wiring Diagram
02

Installation – Wiring Diagram

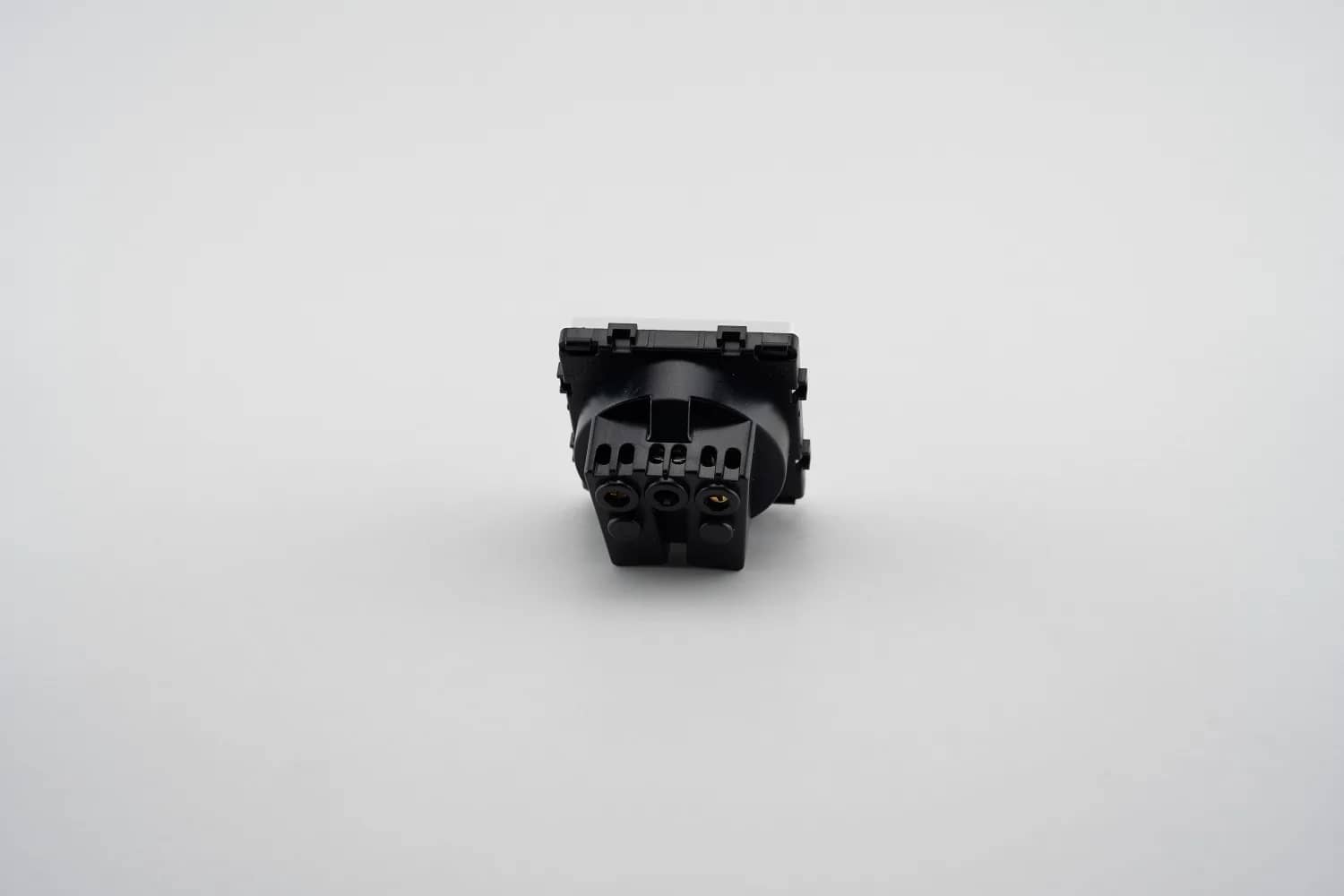

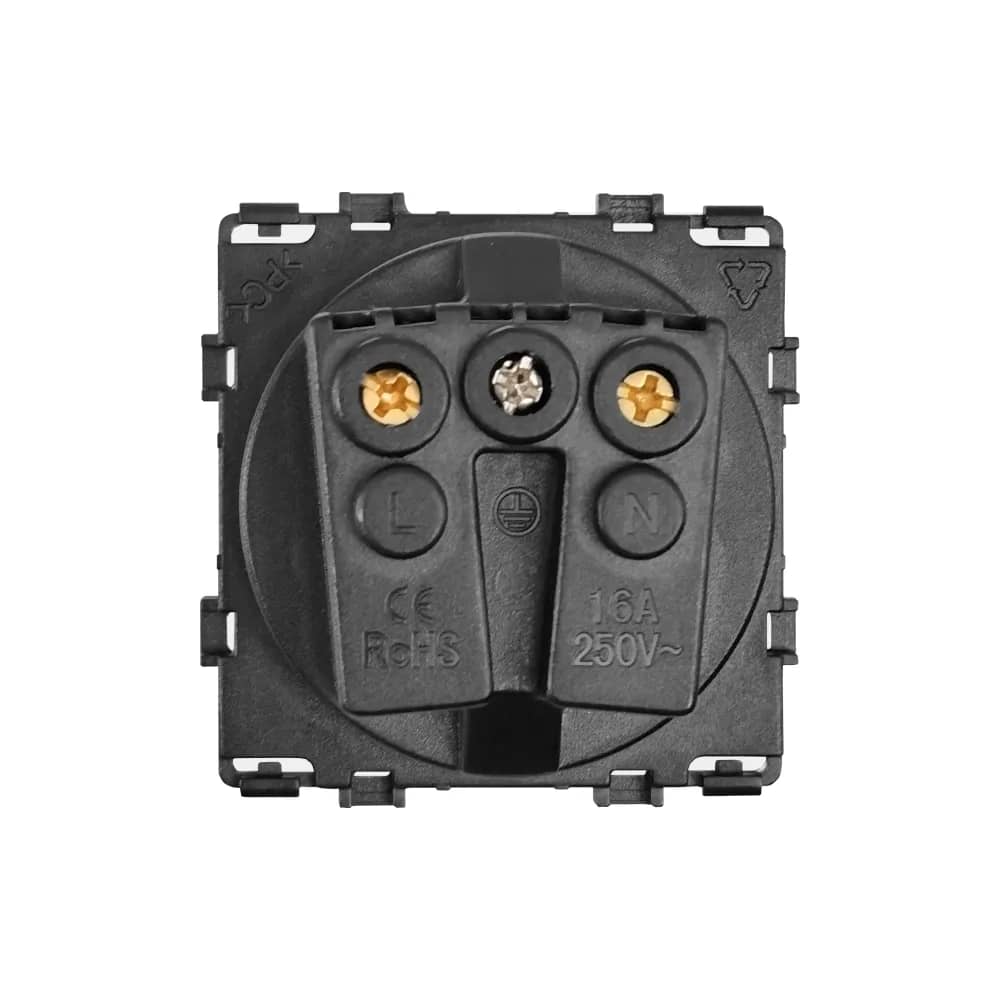

Connect the supply wires to the marked terminals on the back of the module.

  • Live (L): L terminal
  • Neutral (N): N terminal
  • Earth: centre earth terminal
  • Screw fixing system, 60 mm between fixing points
Luxion Single Socket Module – Without Glass Frame – Technical Data
03

Technical Data

  • Rating (marked on module): 16A, 250V~
  • Markings: CE, RoHS
  • Module front: 45 mm x 45 mm

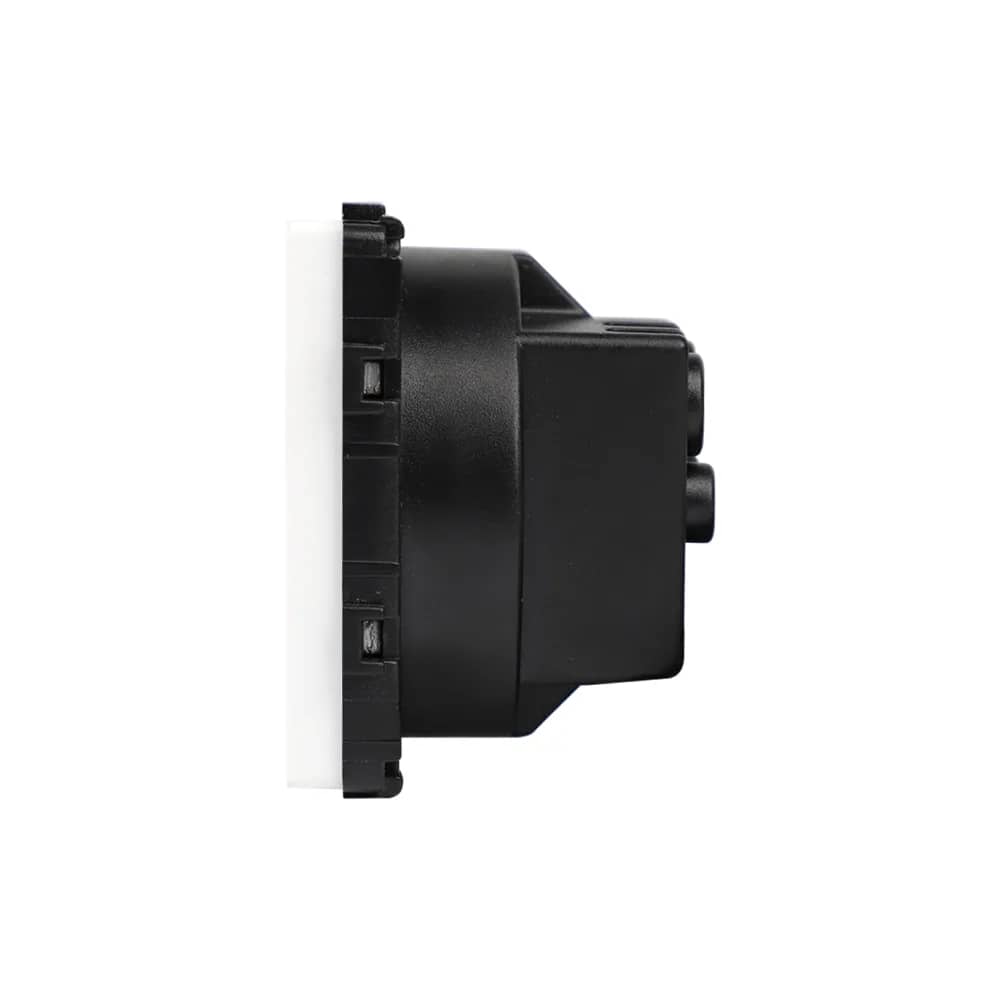

  • Front depth: 9 mm
  • Rear depth: 30 mm
  • Rear body height: 47 mm
  • Fixing distance: 60 mm
