LUXION Single Switch Module with Dimmer
A single-gang dimmer switch module from LUXION with Zigbee wireless connectivity.
Luxion
Luxion Zigbee Touch Dimmer Switch Module – 1 Gang
SKU: LX-ZT-D101
AED 94
In stock
1
- Delivery across all seven emirates. Free on orders over AED 750.
- Order now, we confirm availability and delivery with you before you pay.
Compact Luxion Zigbee 1 gang touch dimmer module with smartphone-precise sensor; works with the Luxion Zigbee hub, Alexa and Google Home.
Product details
Luxion switches stand out for their compact, elegant and minimalist design. They are versatile, and the touch sensor is highly precise, identical to that of a smartphone. The structure is durable and the switches do not discolour over time. This is a practical product, made from quality materials and built to last, bringing convenience and comfort to your home.
A neutral wire is required for operation!
Luxion switches with the Zigbee protocol work only together with the Luxion Zigbee hub. Through the hub, you can also control them using the Amazon Alexa or Google Home voice assistants.
Highlights
02
Installation – Wiring Diagram
Connect the live (L) and neutral (N) supply wires to the module's L and N terminals, and connect the light fitting to the L1 terminal.
- L: Live (phase)
- N: Neutral
- L1: Output to light
03

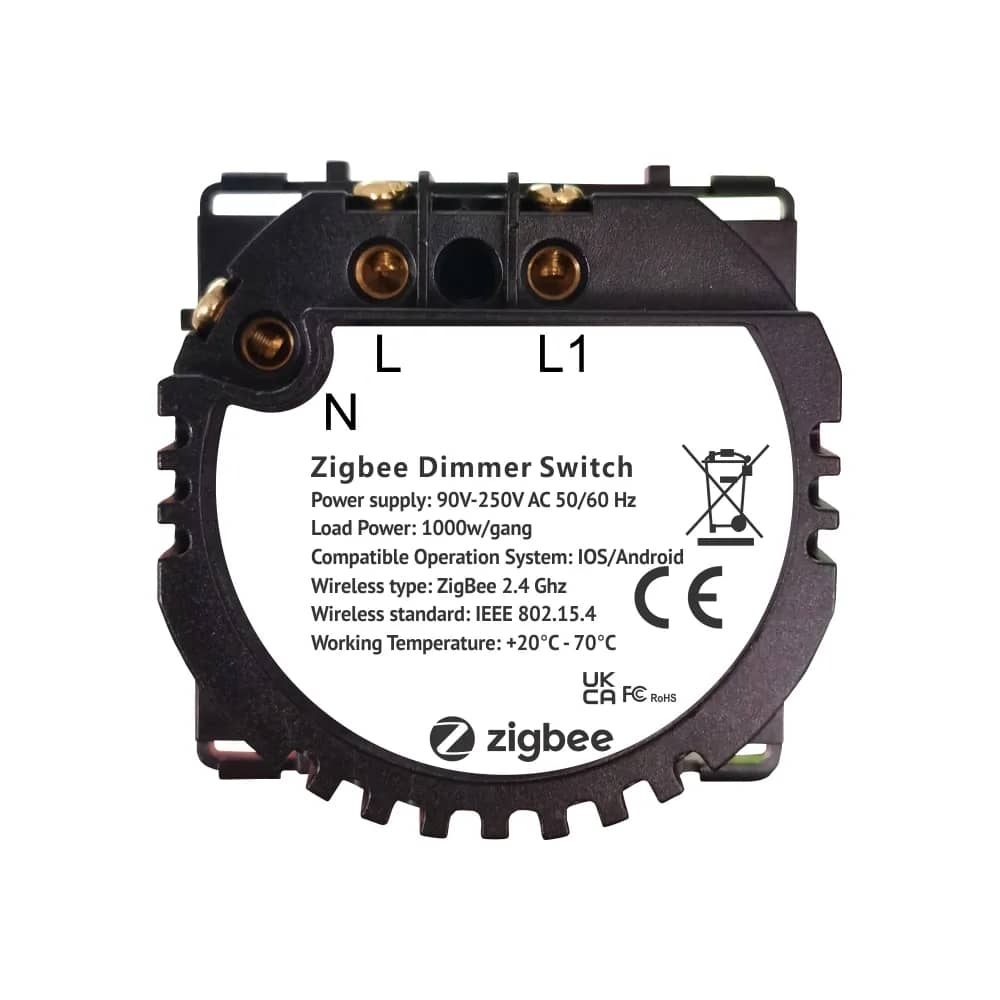

Technical Data
- Type: Zigbee Dimmer Switch
- Power supply: 90V-250V AC 50/60 Hz
- Load power: 1000w/gang
- Compatible operating system: iOS/Android
- Wireless type: ZigBee 2.4 GHz
- Wireless standard: IEEE 802.15.4
- Working temperature: +20°C - 70°C
04

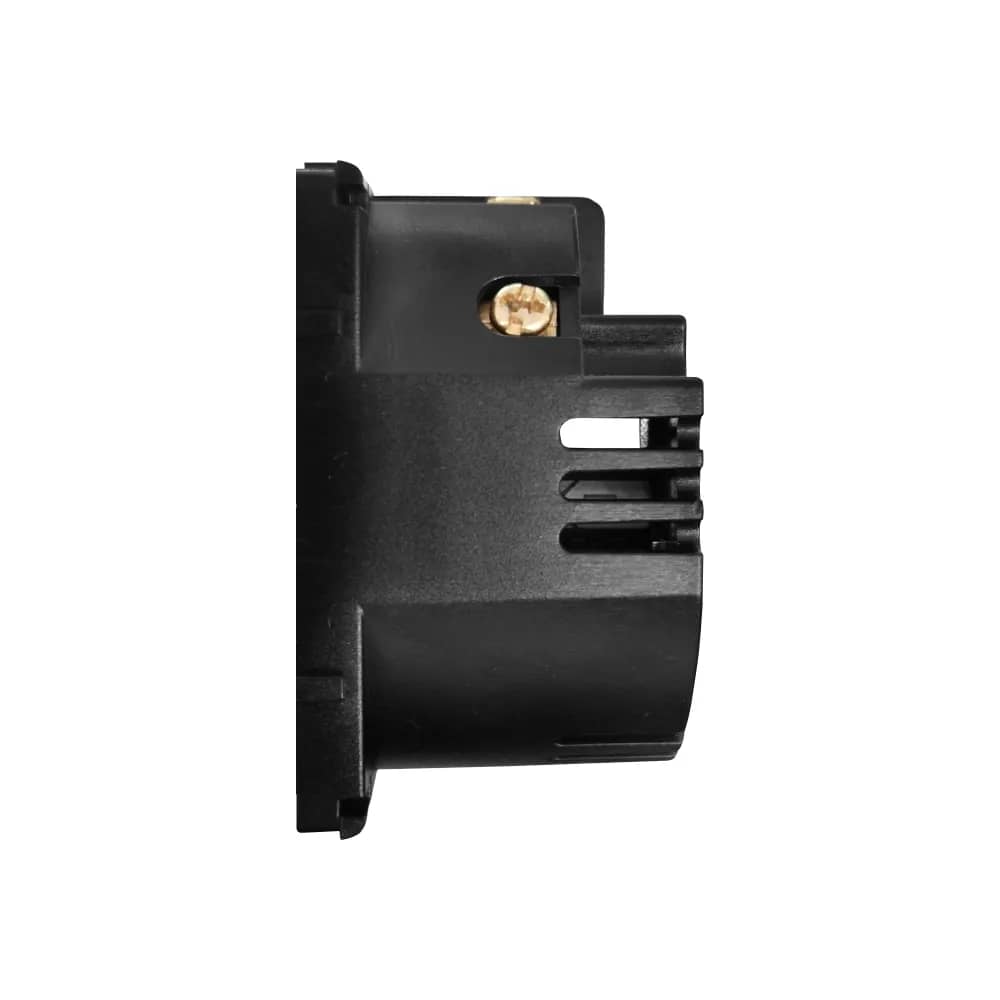

Dimensions
The module fits with a screw fixing system at 60 mm spacing. The glass panel and metal frame are not included.
- Front: 50 mm x 50 mm
- Depth: 5 mm + 26 mm
- Body height: 49 mm
- Screw fixing spacing: 60 mm
- Glass panel: not included
- Metal frame: not included
