Luxion Zigbee Smart Socket Module with Energy Monitoring – Without Glass Frame

SKU: LX-ZT-SC001MW

AED 77

In stock

Colour: White

Delivery across all seven emirates. Free on orders over AED 750.
Order now, we confirm availability and delivery with you before you pay.

Luxion Zigbee smart wall socket module with energy monitoring, earthing and child protection – timers, schedules and scenes. Frame sold separately.

Product details

The Luxion single smart socket module with Zigbee protocol features energy consumption monitoring, standard earthing and child protection. It offers smart functions such as timer, scheduling, group control (family sharing) and scene creation.

Highlights

Luxion Zigbee Smart Socket Module with Energy Monitoring

A smart socket module with ZigBee connectivity and energy consumption monitoring from the LUXION range. Available in white, black, gold and grey finishes.

ZigBee wireless connectivity
Energy consumption monitoring
Available in white, black, gold and grey

Installation – Wiring Diagram

Connect the live, neutral and earth wires to the corresponding terminals on the back of the module.

Live (L)
Neutral (N)
Earth line

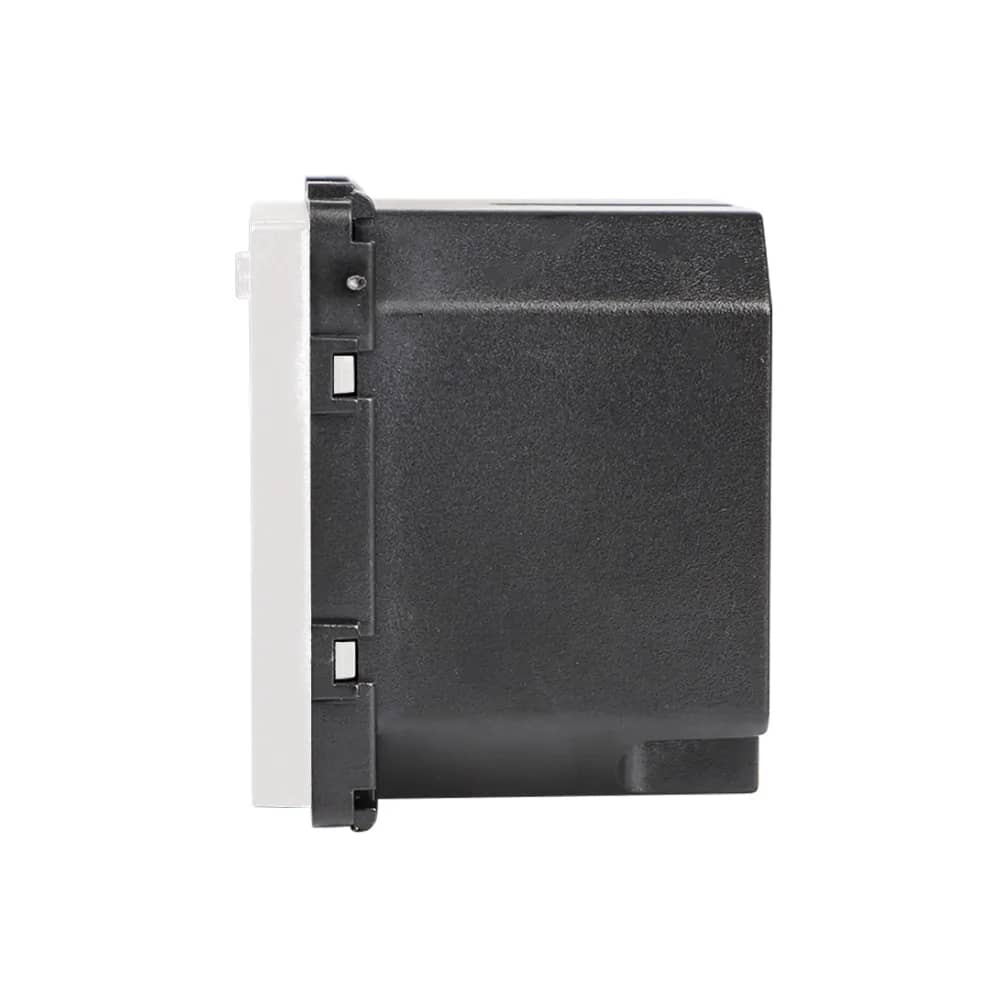

Dimensions

The module is secured with a screw fixing system. The glass frame and the metal frame are not included.

Front: 50 mm x 50 mm
Depth: 42 mm
Height of rear body: 47 mm
Screw fixing spacing: 60 mm
Glass frame: not included
Metal frame: not included

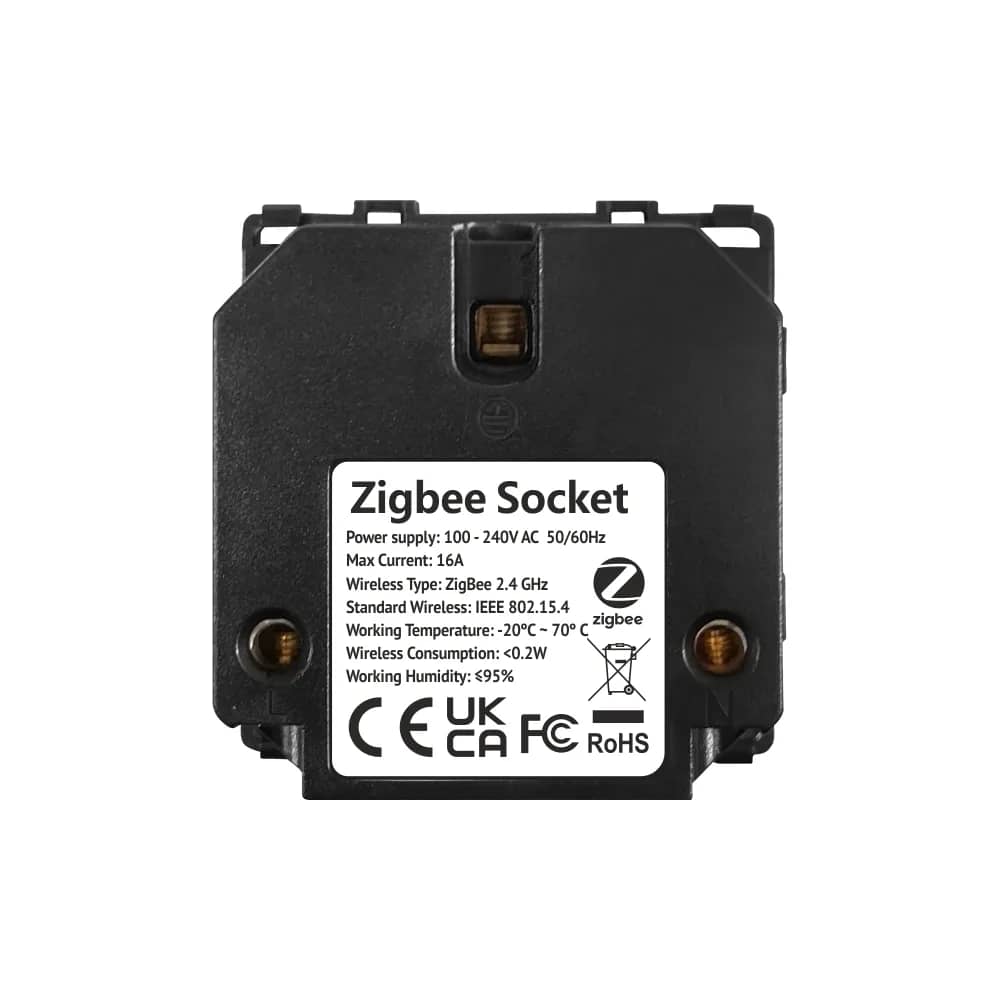

Technical Data

Power supply: 100 - 240V AC 50/60Hz
Max current: 16A
Wireless type: ZigBee 2.4 GHz
Wireless standard: IEEE 802.15.4
Working temperature: -20°C ~ 70°C
Wireless consumption: <0.2W
Working humidity: ≤95%
Markings: CE, UKCA, FC, RoHS
