Luxion

Luxion Wi-Fi Touch Light Switch Module – 3 Gang (LX-WT2-301)

SKU: LX-WT2-301

AED 104

In stock

1
  • Delivery across all seven emirates. Free on orders over AED 750.
  • Order now, we confirm availability and delivery with you before you pay.

Luxion 3 gang Wi-Fi touch light switch module, for a Luxion panel or combined with other Luxion modules in a Luxion glass frame.

Product details

Luxion 3 gang Wi-Fi touch light switch module. The product can be fitted on its own on a Luxion panel, or together with other Luxion sockets and light switches in a Luxion glass frame.

Compatible only with Luxion glass frames and panels.

Can be installed on a circuit with or without a neutral wire, provided the Wi-Fi adapter is added in parallel with the bulb.

Highlights

Luxion Wi-Fi Touch Light Switch Module – 3 Gang (LX-WT2-301) – LUXION Wi-Fi Triple Switch Module
01

LUXION Wi-Fi Triple Switch Module

A three-gang Wi-Fi switch module from LUXION, designed to control three separate lighting circuits.

  • 3 gangs (L1, L2, L3)
  • Wi-Fi connectivity
  • Model marking: T34
Luxion Wi-Fi Touch Light Switch Module – 3 Gang (LX-WT2-301) – Installation and Wiring
02

Installation and Wiring

The module can be wired in two ways, as shown in the wiring diagrams. Terminals are marked N, L, L1, L2 and L3.

  • Without neutral: no neutral (N) wire is required in the wall box; a capacitor is fitted across the lamp
  • With neutral: connect the neutral (N) wire in the wall box
  • Phase/live (L) connects to terminal L; lamps connect to L1, L2 and L3
  • Caution: high voltage – switch off the power supply before installing
Luxion Wi-Fi Touch Light Switch Module – 3 Gang (LX-WT2-301) – Technical Data
03

Technical Data

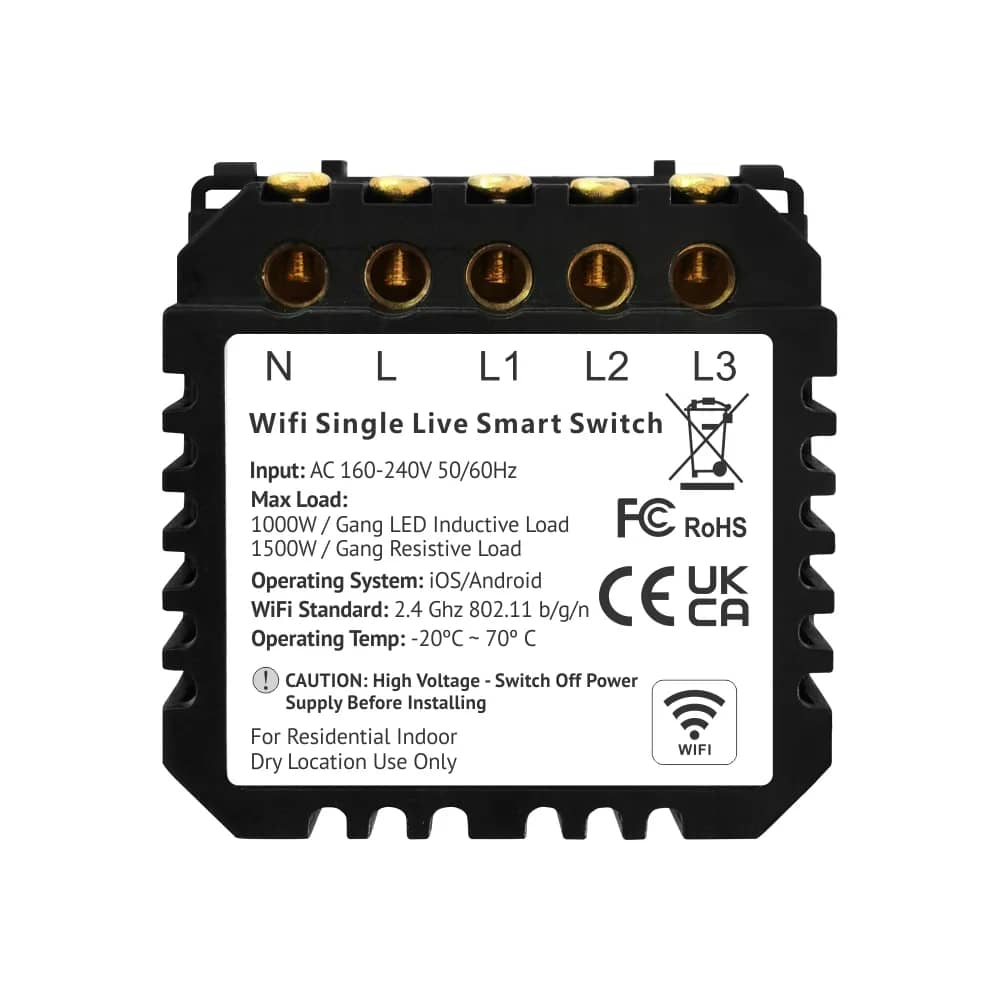

Specifications as printed on the module label (Wifi Single Live Smart Switch).

  • Input: AC 160-240V 50/60Hz
  • Max load: 1000W / gang LED inductive load
  • Max load: 1500W / gang resistive load
  • Operating system: iOS/Android
  • Wi-Fi standard: 2.4 GHz 802.11 b/g/n
  • Operating temperature: -20°C ~ 70°C
  • Markings: FC, RoHS, CE, UKCA
  • For residential indoor, dry location use only
Luxion Wi-Fi Touch Light Switch Module – 3 Gang (LX-WT2-301) – Dimensions
04

Dimensions

The module fixes in place with a screw mounting system.

  • Module: 50 mm x 50 mm
  • Height: 49 mm
  • Depth: 26 mm + 5 mm
  • Screw mounting spacing: 60 mm
Luxion Wi-Fi Touch Light Switch Module – 3 Gang (LX-WT2-301) – What's Not Included
05

What's Not Included

This is the switch module only; the glass panel and metal frame are sold separately.

  • Glass panel (not included)
  • Metal frame (not included)
