Luxion

Luxion Wi-Fi Smart Socket Module with Energy Monitoring – Without Glass Frame

SKU: LX-MP034MW

AED 69

In stock

Colour: White
1
  • Delivery across all seven emirates. Free on orders over AED 750.
  • Order now, we confirm availability and delivery with you before you pay.

Luxion Wi-Fi smart wall socket module with energy monitoring, child protection, timer, schedules, group control and scenes. Frame sold separately.

Product details

The Luxion Wi-Fi smart single socket module with energy monitoring, standard earthing and child protection. It offers smart functions such as a timer, schedules, group control (family sharing) and scene creation.

Highlights

Luxion Wi-Fi Smart Socket Module with Energy Monitoring – Without Glass Frame – LUXION Wi-Fi Smart Socket Module
01

LUXION Wi-Fi Smart Socket Module

A Wi-Fi smart socket module from the LUXION range, available in white, black, gold and grey finishes.

  • Wi-Fi connectivity
  • Available in white, black, gold and grey
Luxion Wi-Fi Smart Socket Module with Energy Monitoring – Without Glass Frame – Installation – Wiring Diagram
02

Installation – Wiring Diagram

Connect the supply wires to the terminals on the back of the module as shown in the wiring diagram.

  • Live (L)
  • Neutral (N)
  • Earth line
Luxion Wi-Fi Smart Socket Module with Energy Monitoring – Without Glass Frame – Technical Data
03

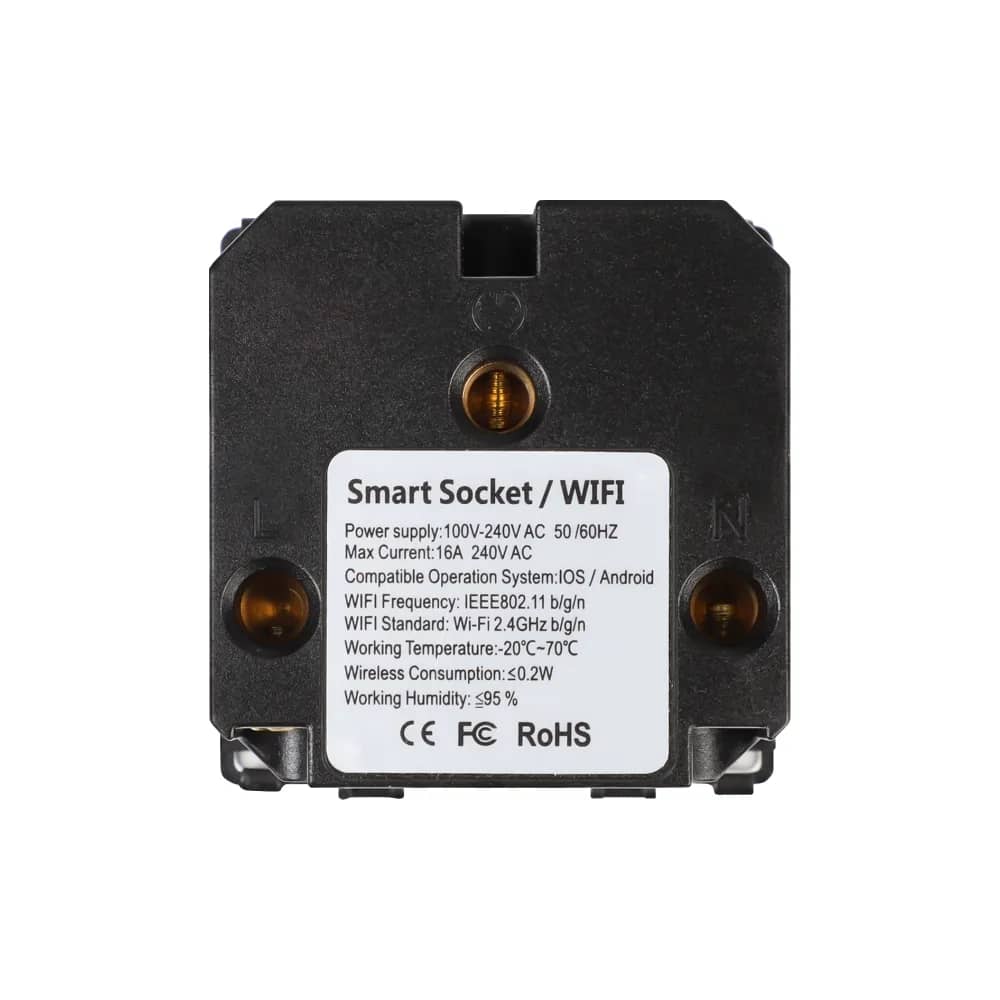

Technical Data

  • Power supply: 100V-240V AC, 50/60Hz
  • Max current: 16A, 240V AC
  • Compatible operating systems: iOS / Android
  • Wi-Fi frequency: IEEE802.11 b/g/n
  • Wi-Fi standard: Wi-Fi 2.4GHz b/g/n
  • Working temperature: -20°C~70°C
  • Wireless consumption: ≤0.2W
  • Working humidity: ≤95%
  • Markings: CE, FC, RoHS
Luxion Wi-Fi Smart Socket Module with Energy Monitoring – Without Glass Frame – Dimensions
04

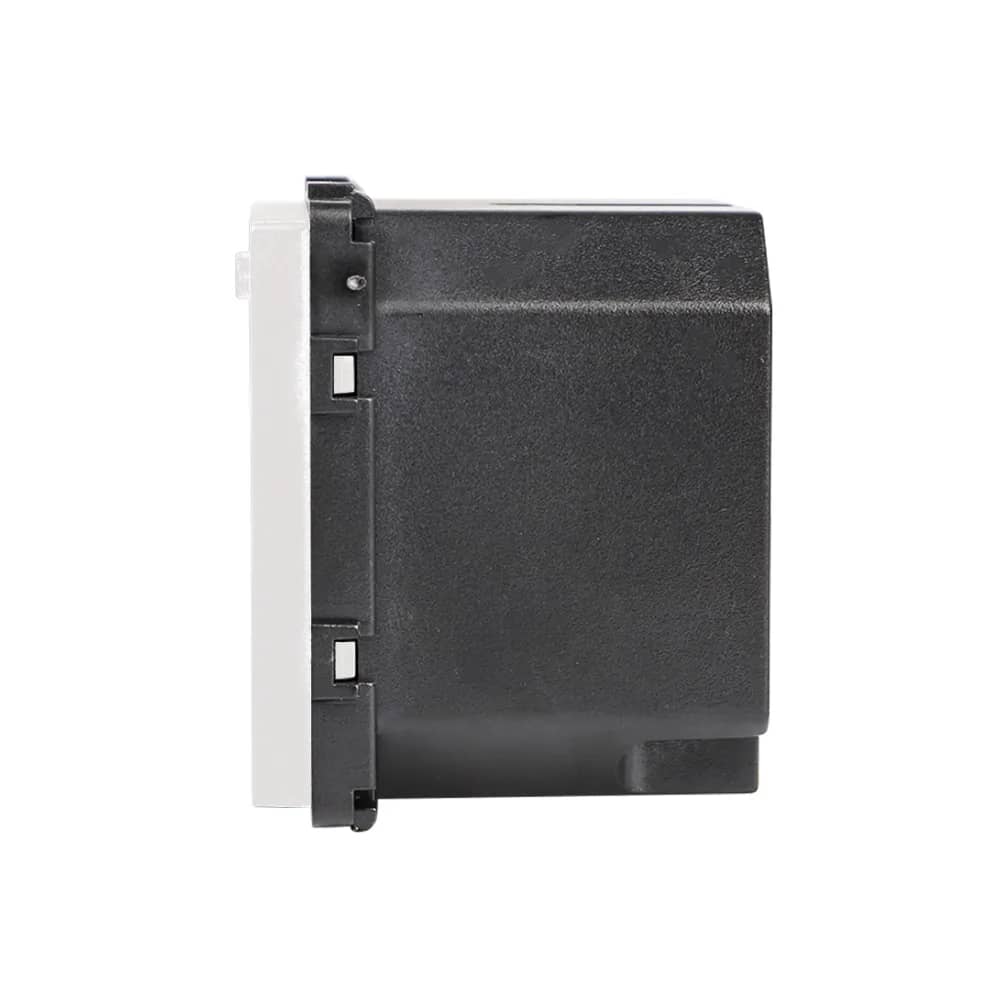

Dimensions

The module is fixed with a screw mounting system.

  • Front: 50 mm x 50 mm
  • Depth: 45 mm
  • Height (body): 47 mm
  • Screw mounting spacing: 60 mm
Luxion Wi-Fi Smart Socket Module with Energy Monitoring – Without Glass Frame – Frames
05

Frames

The glass frame and the metal frame are not included with this module.

  • Glass frame: not included
  • Metal frame: not included
