Luxion

Luxion Wi-Fi + RF433 Touch Light Switch Module – 3 Gang (LX-WT2-RA301)

SKU: LX-WT2-RA301

AED 84

In stock

1
  • Delivery across all seven emirates. Free on orders over AED 750.
  • Order now, we confirm availability and delivery with you before you pay.

Luxion 3 gang Wi-Fi + RF433 touch switch module that connects directly to the internet without a hub, for Luxion glass frames and panels.

Product details

The Luxion light switch range stands out for its compact, elegant and minimalist design. The switches are versatile, and the touch sensor is highly precise – just like a smartphone's. The construction is durable and the switches do not fade over time. It is a practical product, made from quality materials and built to last, bringing convenience and comfort to your home.

Connects directly to the internet, no hub required!
Can be controlled with the Luxion RF remote control. Please note: the remote control must be purchased separately!

Compatible only with Luxion glass frames and panels.

Highlights

Luxion Wi-Fi + RF433 Touch Light Switch Module – 3 Gang (LX-WT2-RA301) – Triple Wi-Fi + RF433 Touch Switch Module
01

Triple Wi-Fi + RF433 Touch Switch Module

LUXION triple touch switch module with Wi-Fi and RF433 connectivity, controlling three separate lighting circuits.

  • 3 gangs (L1, L2, L3)
  • Wi-Fi + RF433 control
  • Touch operation
Luxion Wi-Fi + RF433 Touch Light Switch Module – 3 Gang (LX-WT2-RA301) – Installation – Wiring Diagram
02

Installation – Wiring Diagram

The module can be wired in two ways, depending on whether a neutral wire is available in the wall box.

  • Without neutral: no neutral (N) required in the wall box – a capacitor is fitted across the load
  • With neutral: neutral (N) connected to the module's N terminal
  • Terminals: L (live/phase), L1, L2, L3 (lighting outputs), N (neutral)

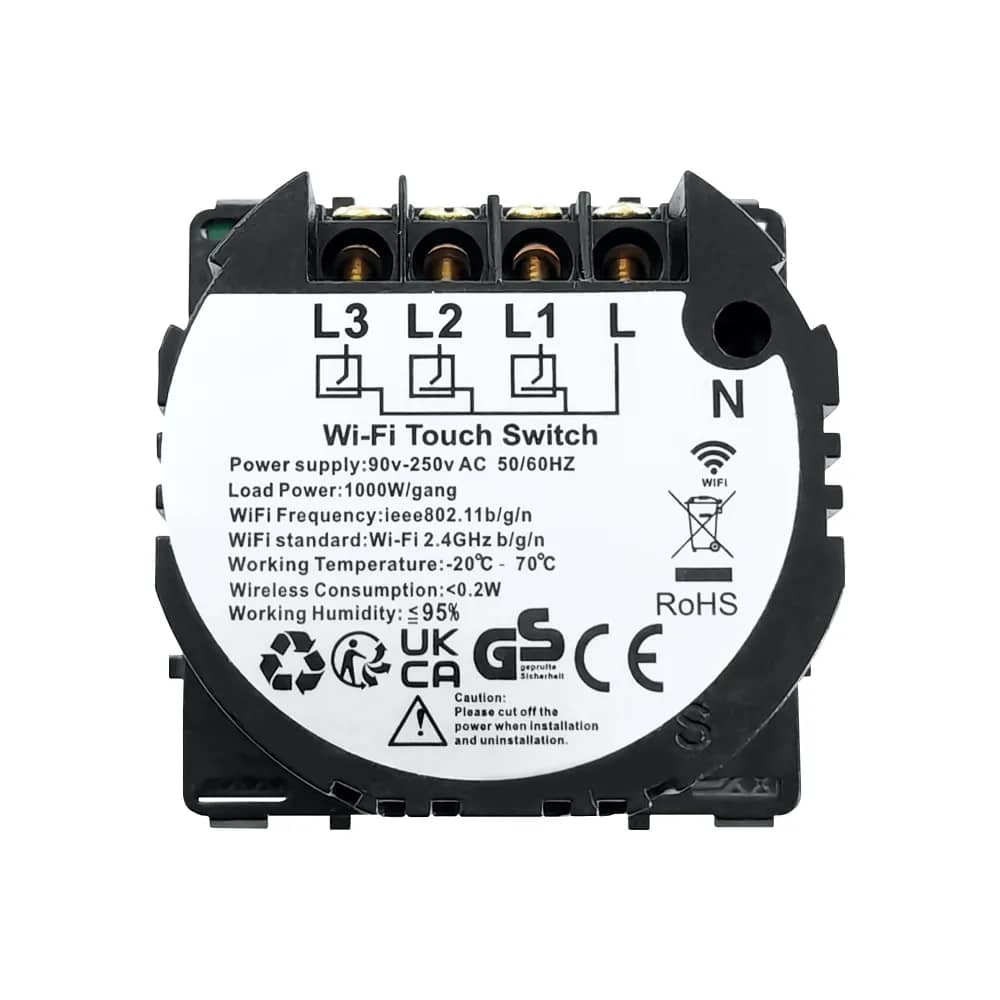

Luxion Wi-Fi + RF433 Touch Light Switch Module – 3 Gang (LX-WT2-RA301) – Technical Data (from module label)
03

Technical Data (from module label)

  • Power supply: 90V–250V AC 50/60Hz
  • Load power: 1000W/gang
  • Wi-Fi frequency: IEEE 802.11b/g/n
  • Wi-Fi standard: Wi-Fi 2.4GHz b/g/n
  • Working temperature: -20°C – 70°C
  • Wireless consumption: <0.2W
  • Working humidity: ≤95%
Luxion Wi-Fi + RF433 Touch Light Switch Module – 3 Gang (LX-WT2-RA301) – Dimensions
04

Dimensions

Compact module secured with a screw-fixing system.

  • Module front: 50 mm x 50 mm
  • Depth: 26 mm (plus 5 mm front)
  • Height of rear body: 49 mm
  • Screw-fixing spacing: 60 mm
Luxion Wi-Fi + RF433 Touch Light Switch Module – 3 Gang (LX-WT2-RA301) – Not Included
05

Not Included

The module is supplied on its own; the front panel and frame are sold separately.

  • Glass panel (not included)
  • Metal frame (not included)

In detail

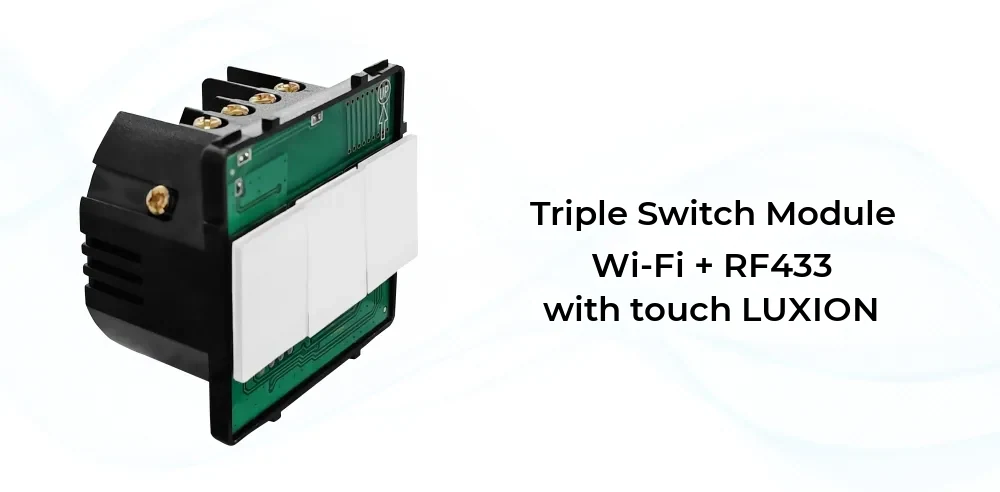

Luxion Wi-Fi + RF433 Touch Light Switch Module – 3 Gang (LX-WT2-RA301) – detail 1
