Luxion Wi-Fi + RF433 Touch Light Switch Module – 2 Gang

1 / 4

Luxion

Luxion Wi-Fi + RF433 Touch Light Switch Module – 2 Gang

Name: Luxion Wi-Fi + RF433 Touch Light Switch Module – 2 Gang
Brand: Luxion
SKU: LX-WT2-RA201
Price: 76 AED
Availability: InStock

SKU: LX-WT2-RA201

AED 76

In stock

Delivery across all seven emirates. Free on orders over AED 750.
Order now, we confirm availability and delivery with you before you pay.

Luxion 2 gang Wi-Fi + RF433 touch switch module that connects directly to the internet without a hub, for Luxion glass frames and panels.

Product details

The Luxion range of light switches stands out for its compact, elegant and minimalist design. The switches are versatile, and the touch sensor is highly precise, just like a smartphone's. The structure is durable and the switches do not discolour over time. It is a practical product, made from quality materials and built to last, bringing convenience and comfort to your home.

Connects directly to the internet, without the need for a hub!
Can be controlled with the Luxion RF remote control. Please note, the remote must be purchased separately!

Compatible only with Luxion glass frames and panels.

Highlights

Double Wi-Fi + RF433 Touch Switch Module

LUXION double touch switch module with Wi-Fi and RF433 connectivity, designed to control two lighting circuits.

2-gang touch control
Wi-Fi + RF433
Works with or without a neutral wire

Installation – Wiring Diagram

The module can be wired in two ways, depending on whether a neutral wire is available in the wall box.

Without neutral: connect Live (L) to terminal L and the lamps to L1 and L3, fitting the supplied-style capacitor across the lamp as shown – no neutral required in the wall box
With neutral: connect Live (L) to terminal L, the lamps to L1 and L3, and Neutral (N) to terminal N – neutral required in the wall box

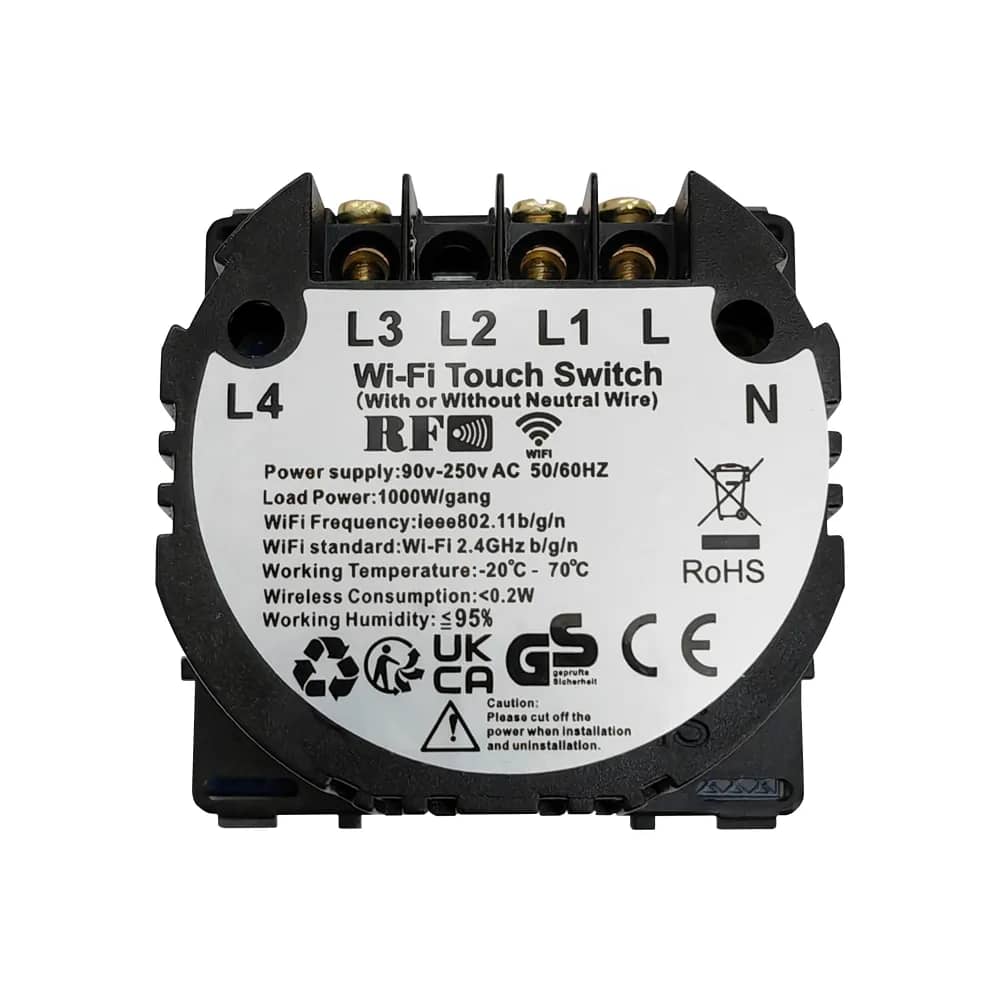

Technical Data

Power supply: 90V–250V AC, 50/60Hz
Load power: 1000W/gang
Wi-Fi frequency: IEEE 802.11b/g/n
Wi-Fi standard: Wi-Fi 2.4GHz b/g/n
Working temperature: -20°C – 70°C
Wireless consumption: <0.2W
Working humidity: ≤95%
Markings: CE, UKCA, GS, RoHS

Dimensions

Fixed with a screw mounting system.

Front: 50 mm x 50 mm
Height of rear housing: 49 mm
Depth: 5 mm + 26 mm
Screw mounting spacing: 60 mm

Not Included

The module is supplied without a front panel or frame.

Glass panel (not included)
Metal frame (not included)
