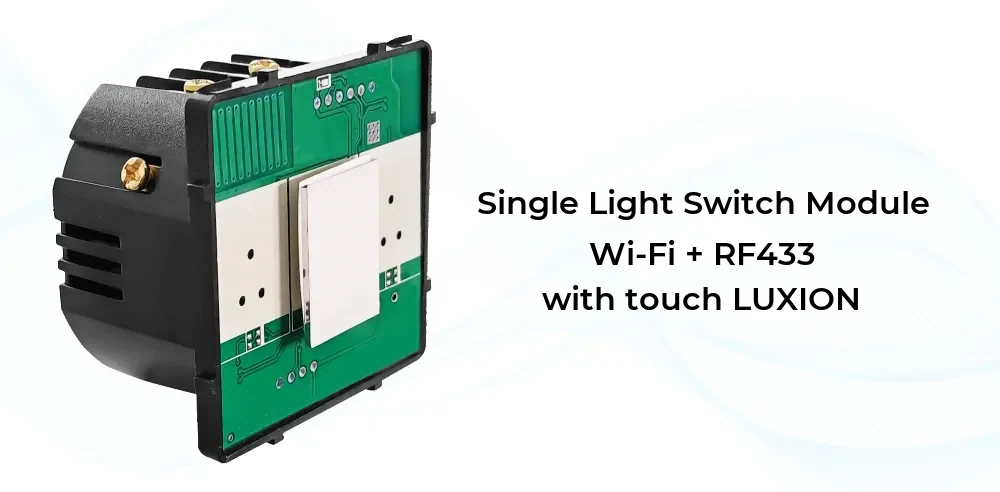

Single Wi-Fi + RF433 Touch Switch Module
LUXION single (1-gang) touch light switch module with Wi-Fi and RF433 connectivity.
- 1-gang touch switch module
- Wi-Fi control
- RF433 control
Luxion
Luxion Wi-Fi + RF433 Touch Light Switch Module – 1 Gang (LX-WT2-RA101)
SKU: LX-WT2-RA101
AED 67
In stock
1
- Delivery across all seven emirates. Free on orders over AED 750.
- Order now, we confirm availability and delivery with you before you pay.
Luxion 1 gang Wi-Fi + RF433 touch switch module that connects directly to the internet with no hub, for Luxion glass frames and panels.
Product details
Luxion light switches stand out for their compact, elegant and minimalist design. They are versatile, and the touch sensor is highly precise, just like a smartphone's. The structure is durable and the switches do not discolour over time. It is a practical product, made from quality materials and built to last, bringing convenience and comfort to your home.
Connects directly to the internet, without the need for a hub!
Can be controlled with the Luxion RF remote control. Please note: the remote control must be purchased separately!
Compatible only with Luxion glass frames and panels.
Highlights
02
Installation and Wiring
The module supports two wiring options, as shown in the wiring diagram. Please cut off the power before installation and uninstallation.
- Option 1: no neutral wire required in the wall box (a capacitor is fitted across the bulb)
- Option 2: neutral wire required in the wall box

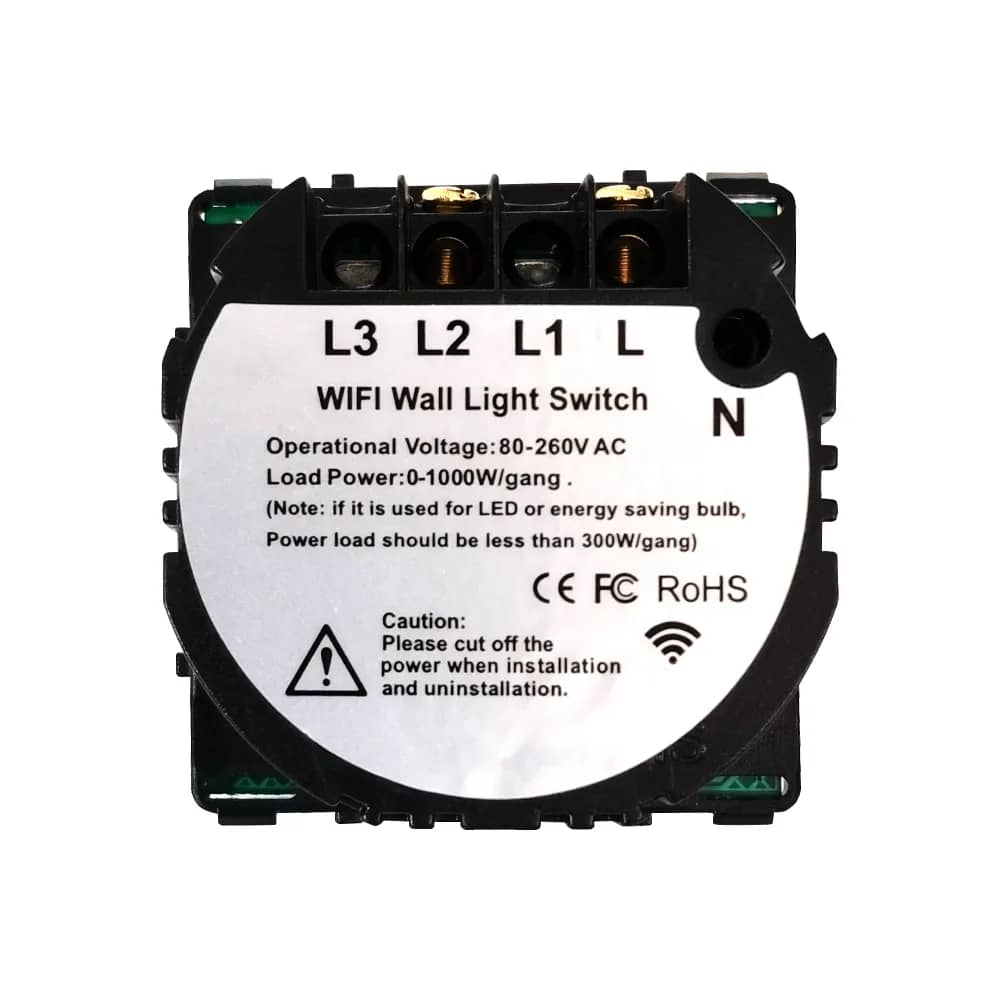

- Terminals: L3, L2, L1, L, N
- Live (L) and Neutral (N) connections
03
Dimensions
The module is secured with a screw fixing system.
- Screw fixing spacing: 60 mm
- Front module size: 50 mm x 50 mm

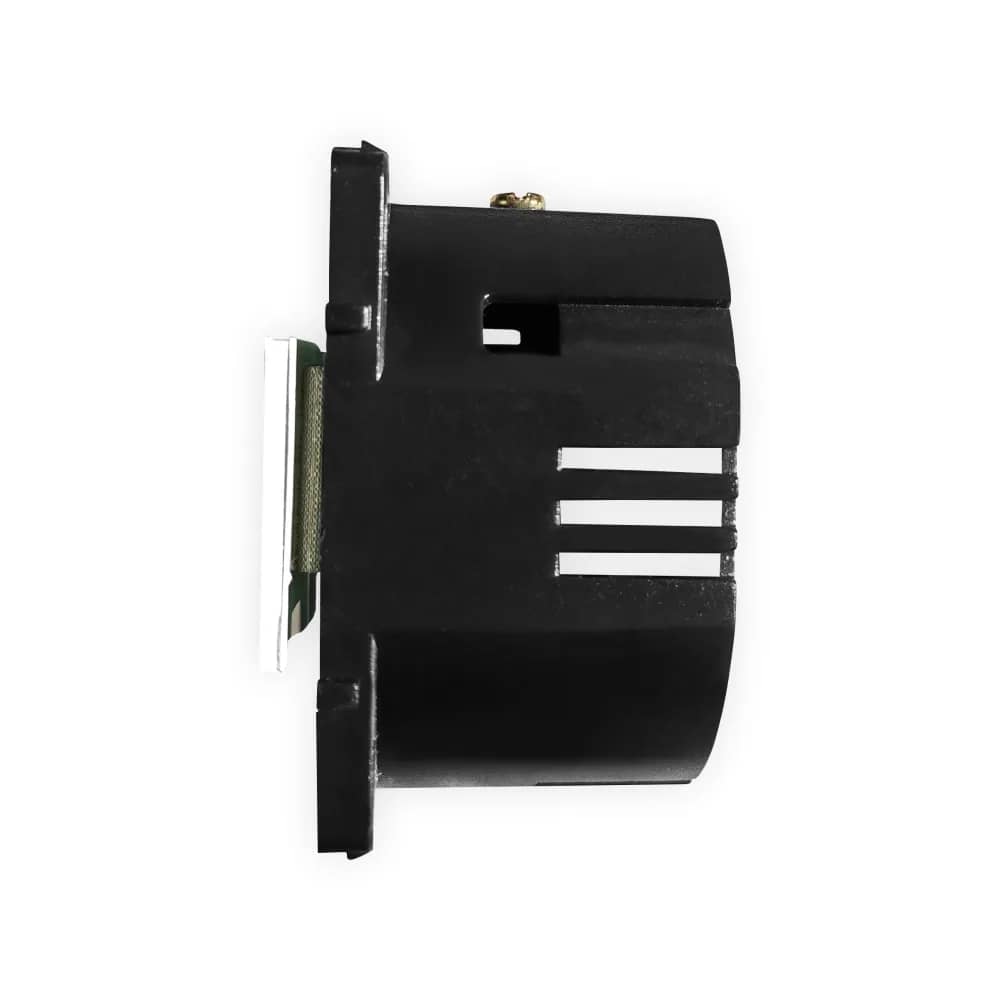

- Depth: 5 mm + 26 mm
- Rear housing height: 49 mm
04
Technical Data
- Operational voltage: 80-260V AC
- Load power: 0-1000W/gang
- LED or energy-saving bulbs: load should be less than 300W/gang
- Markings: CE, FC, RoHS
05
Not Included
The glass panel and the metal frame are not included with this module.
- Glass panel (not included)
- Metal frame (not included)
