LUXION Wi-Fi Double Switch Module
A 2-gang Wi-Fi switch module from LUXION, designed to control two separate lighting circuits.
Luxion
Luxion Wi-Fi Touch Light Switch Module – 2 Gang (LX-WT2-201)
SKU: LX-WT2-201
AED 92
In stock
1
- Delivery across all seven emirates. Free on orders over AED 750.
- Order now, we confirm availability and delivery with you before you pay.
Luxion 2 gang Wi-Fi touch light switch module, for a Luxion panel alone or combined with other Luxion modules on a Luxion glass frame.
Product details
Luxion 2 gang Wi-Fi touch light switch module. The product can be fitted on its own on a Luxion panel, or together with other Luxion sockets and light switches on a Luxion glass frame.
Compatible only with Luxion glass frames and panels.
Highlights
02
Installation and Wiring
The wiring diagrams show two connection options: the module can be installed without a neutral wire in the wall box, using the supplied-type adapter connected across the load, or with a neutral wire connected to the N terminal.
- Option 1: Does NOT require a neutral in the wall box
- Option 2: Requires a neutral in the wall box
- Terminals: N, L, L1, L2, L3
- Neutral (N) and Live (L) connections; lamps connected to L1 and L2
- Caution: high voltage – switch off the power supply before installing
- For residential indoor, dry location use only
03

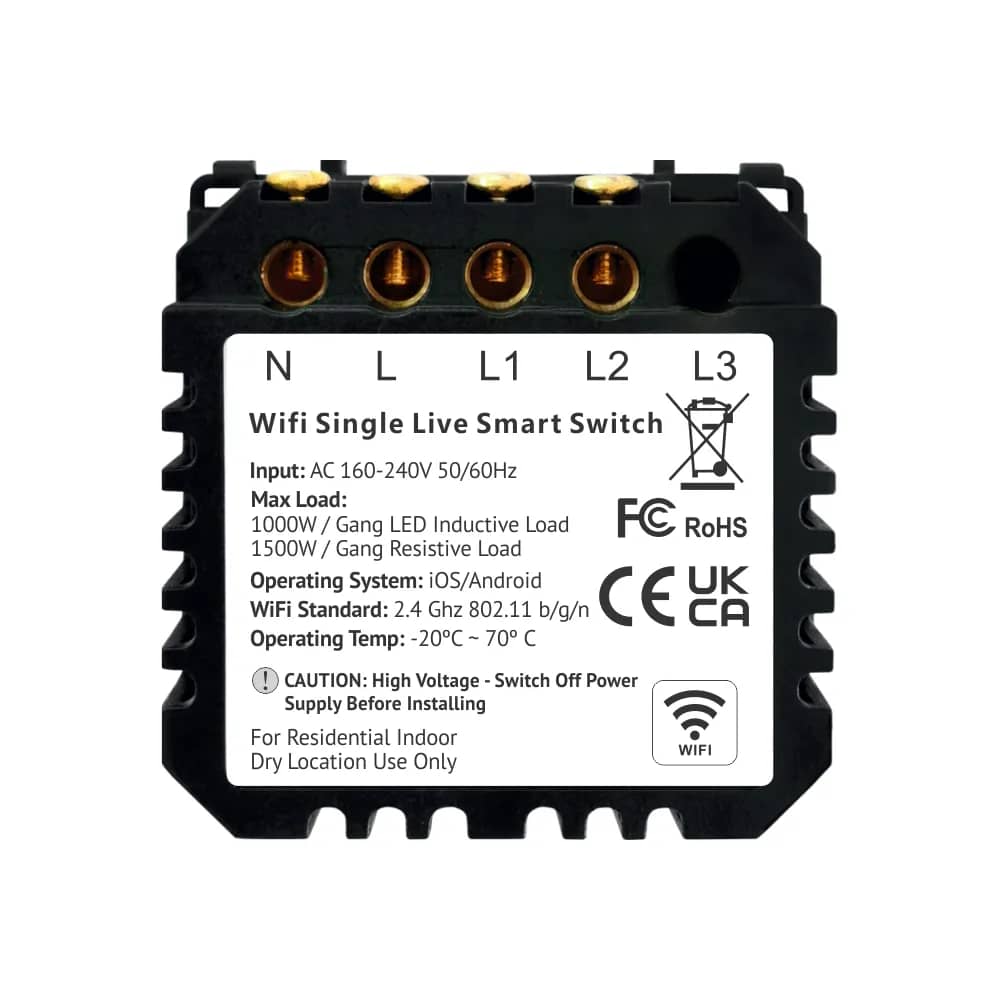

Technical Data
- Input: AC 160-240V 50/60Hz
- Max load: 1000W / gang LED inductive load
- Max load: 1500W / gang resistive load
- Operating system: iOS/Android
- Wi-Fi standard: 2.4 GHz 802.11 b/g/n
- Operating temperature: -20°C ~ 70°C
- Markings: FCC, RoHS, CE, UKCA
04

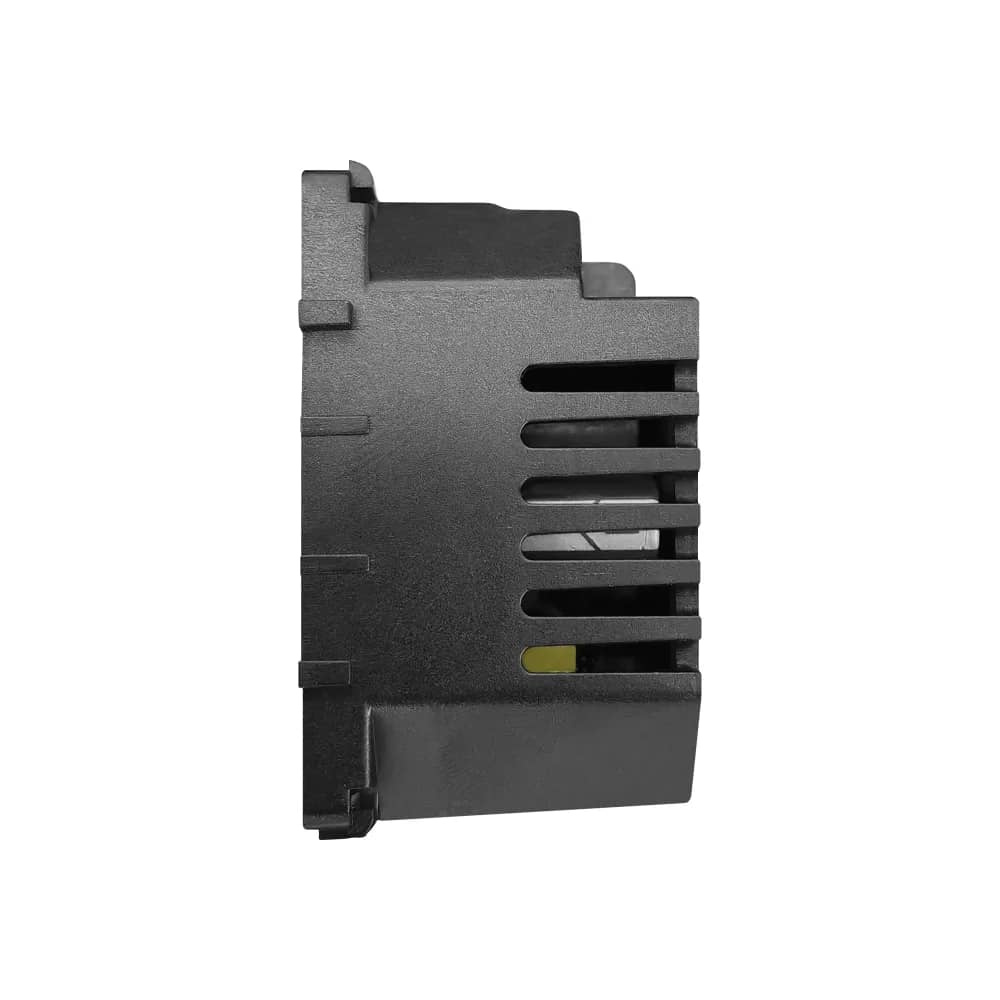

Dimensions
The module fits with a screw-fixing system.
- Module front: 50 mm x 50 mm
- Depth: 26 mm + 5 mm
- Height (side): 49 mm
- Screw fixing spacing: 60 mm
05
Not Included
The glass panel and metal frame shown in the illustration are not included with the module.
- Glass panel (not included)
- Metal frame (not included)
