LUXION Wi-Fi Single Switch Module
A single-gang Wi-Fi switch module from LUXION, designed to be fitted behind a glass panel and frame.
Luxion
Luxion Wi-Fi Touch Light Switch Module – 1 Gang (LX-WT2-101)
SKU: LX-WT2-101
AED 84
In stock
1
- Delivery across all seven emirates. Free on orders over AED 750.
- Order now, we confirm availability and delivery with you before you pay.
Luxion 1 gang Wi-Fi touch light switch module, designed to fit Luxion glass panels and frames alongside other Luxion sockets and switches.
Product details
Luxion 1 gang Wi-Fi touch light switch module. The module can be fitted on its own on a Luxion panel, or together with other Luxion sockets and switches on a Luxion glass frame.
Compatible only with Luxion glass frames and panels.
These switches provide 2-way (staircase) / intermediate operation via automation, which requires a neutral wire. For a classic 2-way / intermediate wiring system, the Luxion Zigbee switches are recommended.
Highlights
02
Installation – Wiring Diagram
The module can be wired with or without a neutral conductor, so it suits both older and newer installations.
- Without neutral: connect Live (L) and L1 to the light – NO neutral required in the wall box
- With neutral: connect Neutral (N), Live (L) and L1 to the light – neutral required in the wall box
- Terminals: N, L, L1, L2, L3
03

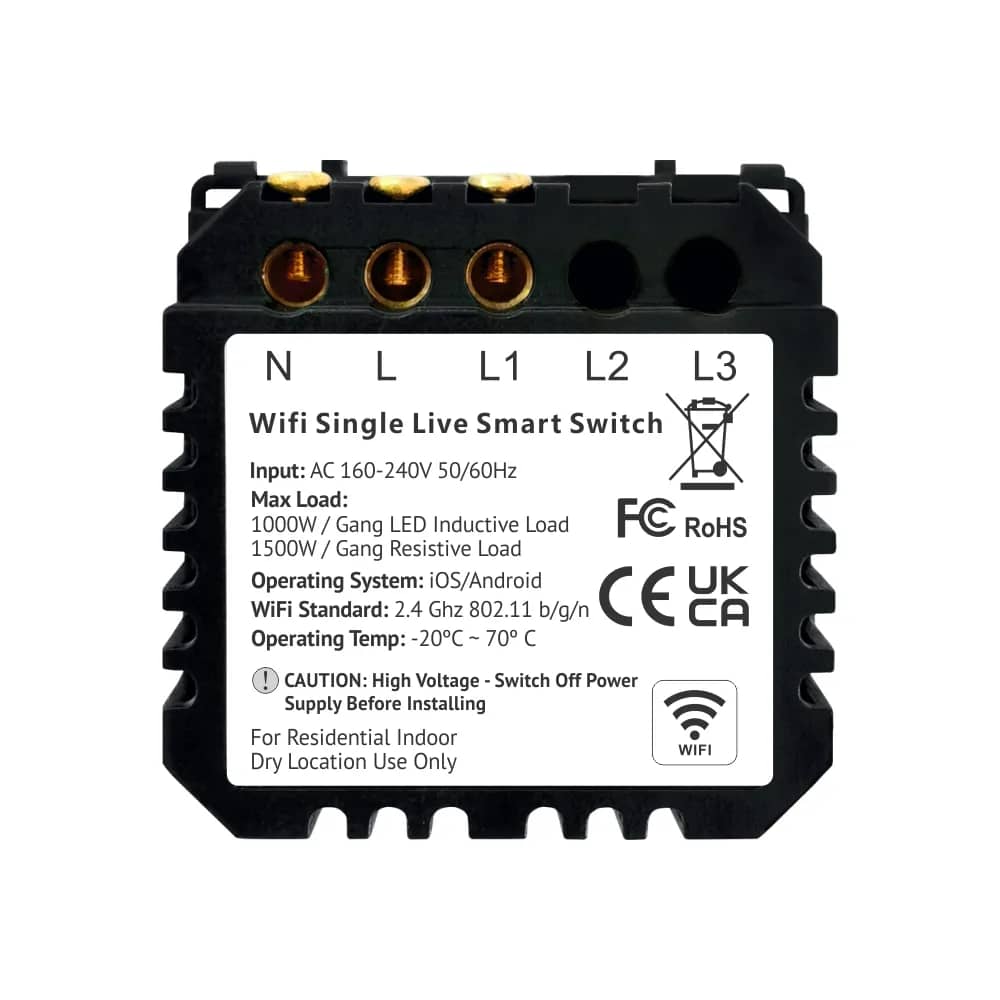

Technical Data
- Type: Wifi Single Live Smart Switch
- Input: AC 160-240V 50/60Hz
- Max load: 1000W / Gang LED Inductive Load
- Max load: 1500W / Gang Resistive Load
- Operating system: iOS/Android
- Wi-Fi standard: 2.4 GHz 802.11 b/g/n
- Operating temperature: -20°C ~ 70°C
- Markings: FC, RoHS, CE, UKCA
- For residential indoor, dry location use only
- Caution: high voltage – switch off power supply before installing
04
Dimensions
- Module: 50 mm x 50 mm
- Depth: 5 mm + 26 mm

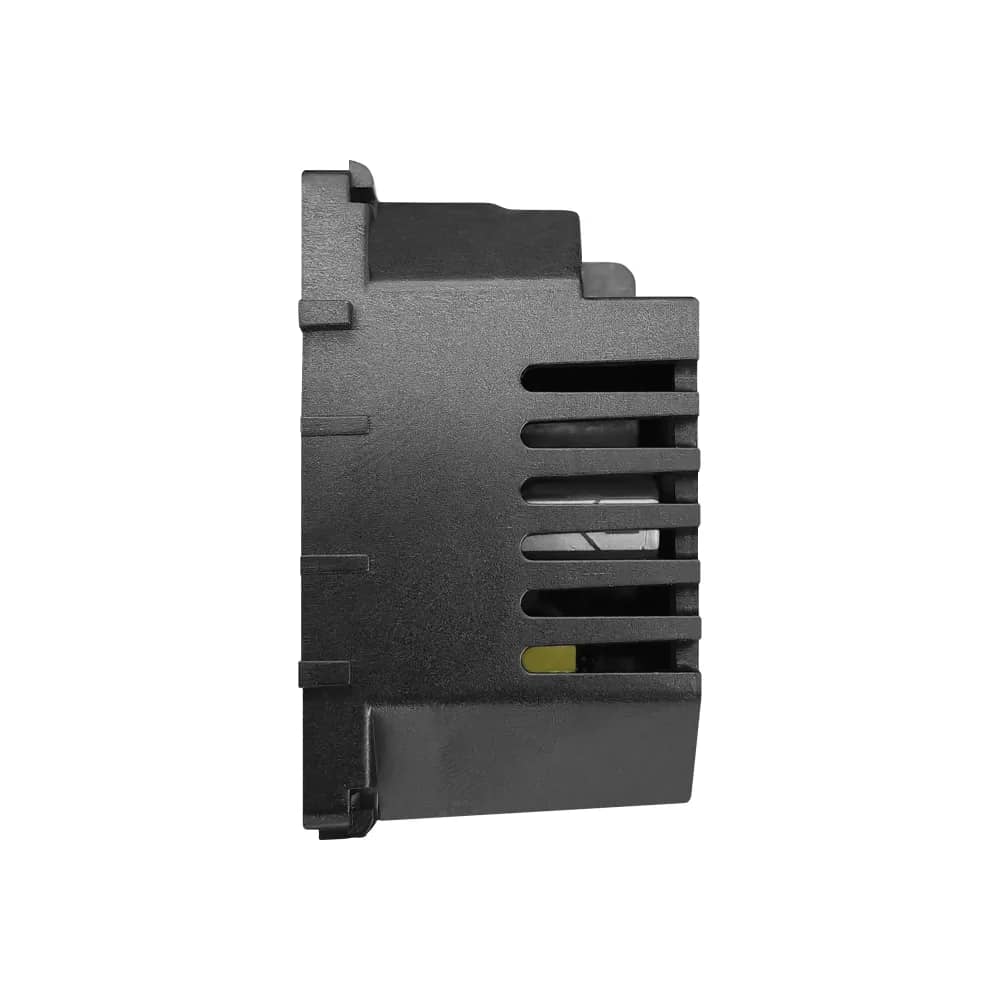

- Height (side view): 49 mm
- Screw fixing distance: 60 mm
05
Please Note
The glass panel and metal frame are not included with the module.
