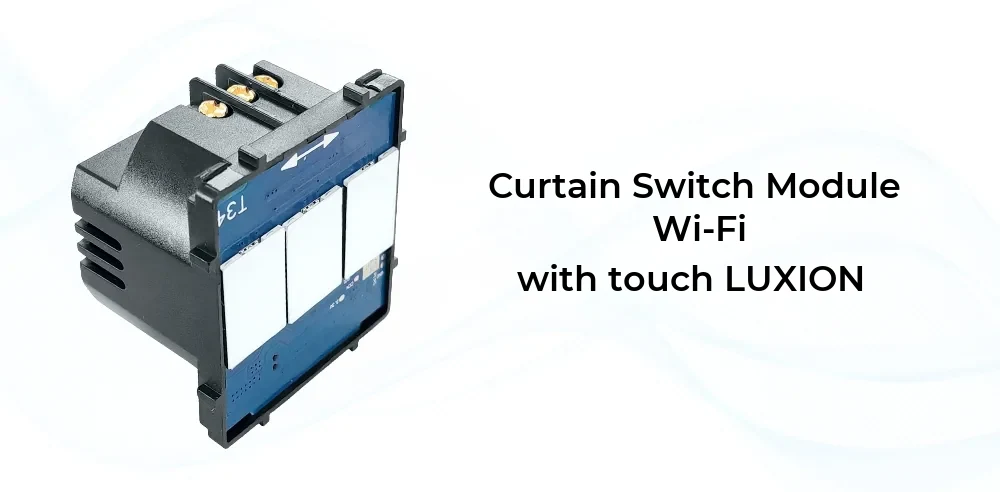

Luxion Wi-Fi Touch Curtain Switch Module
A Wi-Fi curtain switch module with touch control from LUXION, designed to operate a curtain motor.
Luxion
Luxion Wi-Fi Touch Curtain Switch Module LX-WT-C201
SKU: LX-WT-C201
AED 108
In stock
1
- Delivery across all seven emirates. Free on orders over AED 750.
- Order now, we confirm availability and delivery with you before you pay.
Luxion Wi-Fi touch curtain switch module with a precise smartphone-like sensor, for Luxion glass frames and panels. Requires a neutral wire.
Product details
The Luxion switch range stands out for its compact, elegant and minimalist design. The switches are versatile, and the touch sensor is highly precise, just like that of a smartphone. The structure is durable and the switches do not discolour over time. It is a practical product, made from quality materials and built to last, bringing functionality and comfort to your home.
Compatible only with Luxion glass frames and panels.
Requires a neutral wire.
Highlights
02
Installation: Wiring Diagram
Connect the neutral (N) and live (L) supply wires to the N and L terminals of the module. The curtain motor connects to the L1 and L2 terminals, with the motor's common wire going to neutral.
- N: Neutral
- L: Live
- L1 / L2: Motor outputs
03

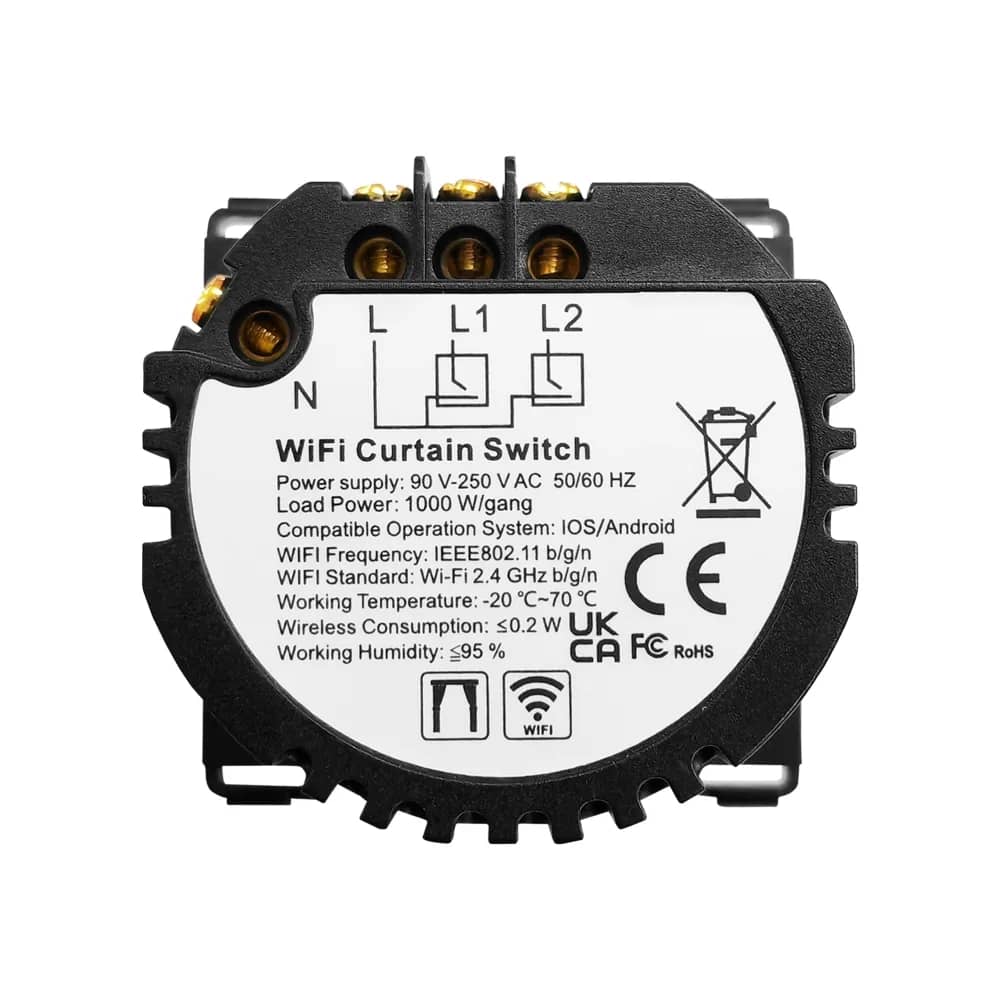

Technical Data
- Power supply: 90 V-250 V AC, 50/60 Hz
- Load power: 1000 W/gang
- Compatible operating systems: iOS/Android
- Wi-Fi frequency: IEEE802.11 b/g/n
- Wi-Fi standard: Wi-Fi 2.4 GHz b/g/n
- Working temperature: -20 °C to 70 °C
- Wireless consumption: ≤0.2 W
- Working humidity: ≤95 %
04

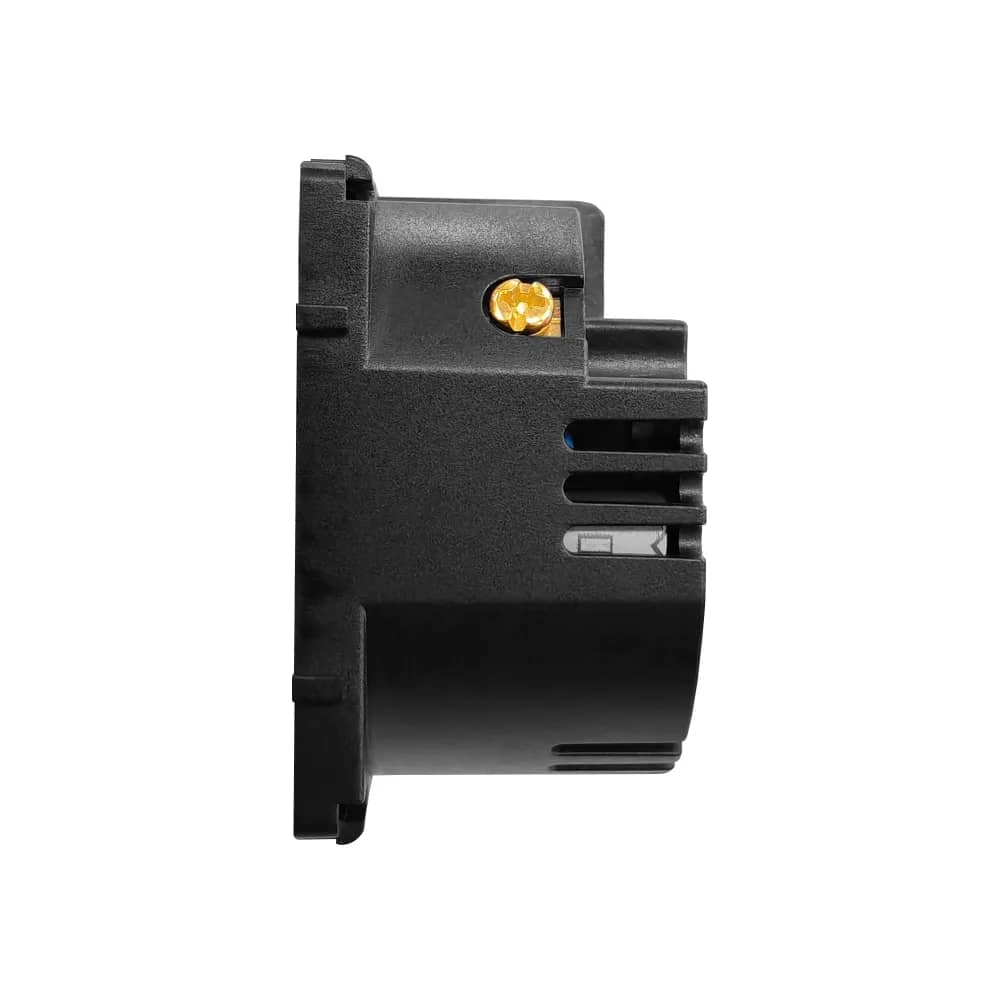

Dimensions
The module is fixed in place with a screw mounting system.
- Front module: 50 mm x 50 mm
- Depth: 5 mm + 26 mm
- Height of rear body: 49 mm
- Screw mounting spacing: 60 mm
05
What's Not Included
The glass panel and metal frame are not included with this module.
- Glass panel (not included)
- Metal frame (not included)
