LUXION Wi-Fi Thermostat Module
Wi-Fi thermostat module designed for electric heating systems.
Luxion
Luxion Wi-Fi Thermostat Module for Electric Heating – LX-WF-WK
SKU: LX-WF-WK
AED 178
In stock
1
- Delivery across all seven emirates. Free on orders over AED 750.
- Order now, we confirm availability and delivery with you before you pay.
Luxion Wi-Fi thermostat module for electric heating, designed to fit Luxion glass or aluminium frames alone or with other Luxion modules.
Product details
The Luxion Wi-Fi thermostat module can be mounted on its own in a Luxion glass or aluminium frame, or together with other Luxion sockets and light switches in a Luxion glass frame with a switch.
Compatible only with Luxion glass or aluminium frames.
Highlights
02

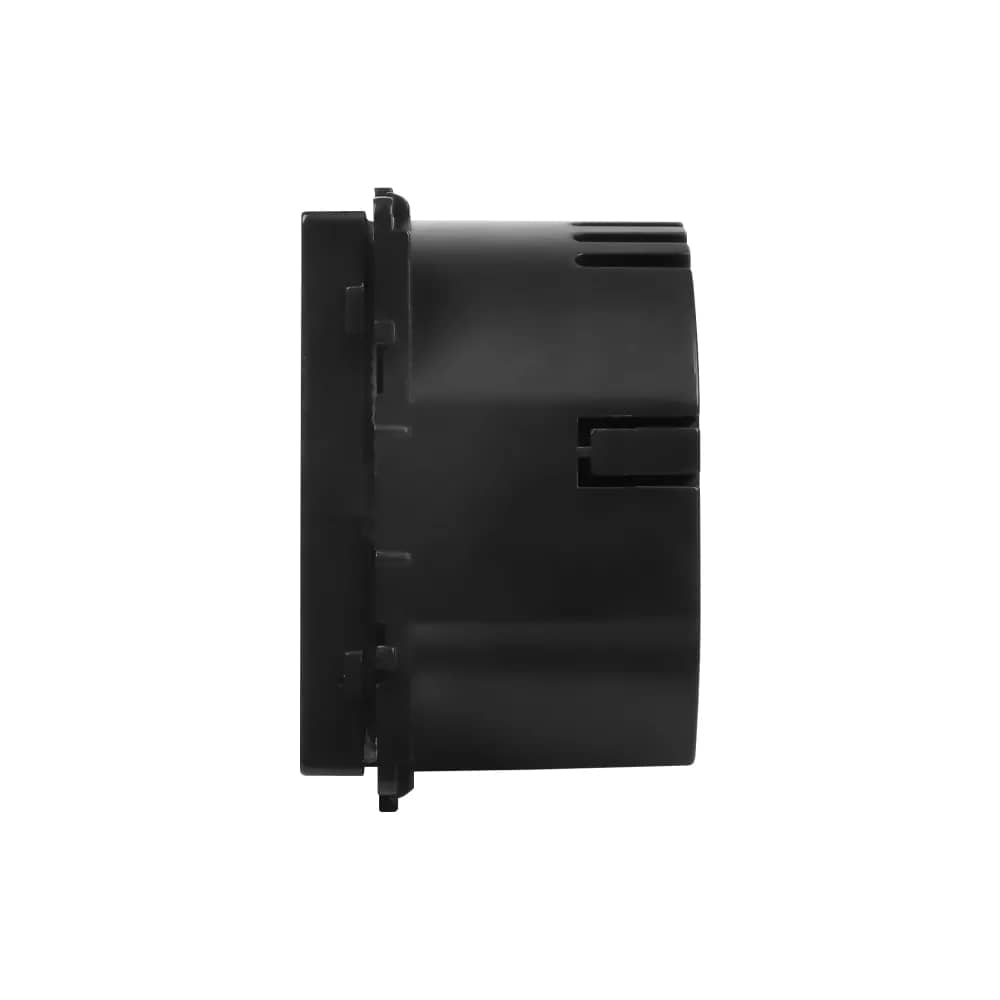

Dimensions
The module mounts with a screw fixing system. The glass/aluminium frame and the metal frame are not included.
- Front panel: 50 mm x 50 mm
- Fixing screw spacing: 60 mm
- Front panel thickness: 5 mm
- Module depth: 26 mm
- Module height: 49 mm
03

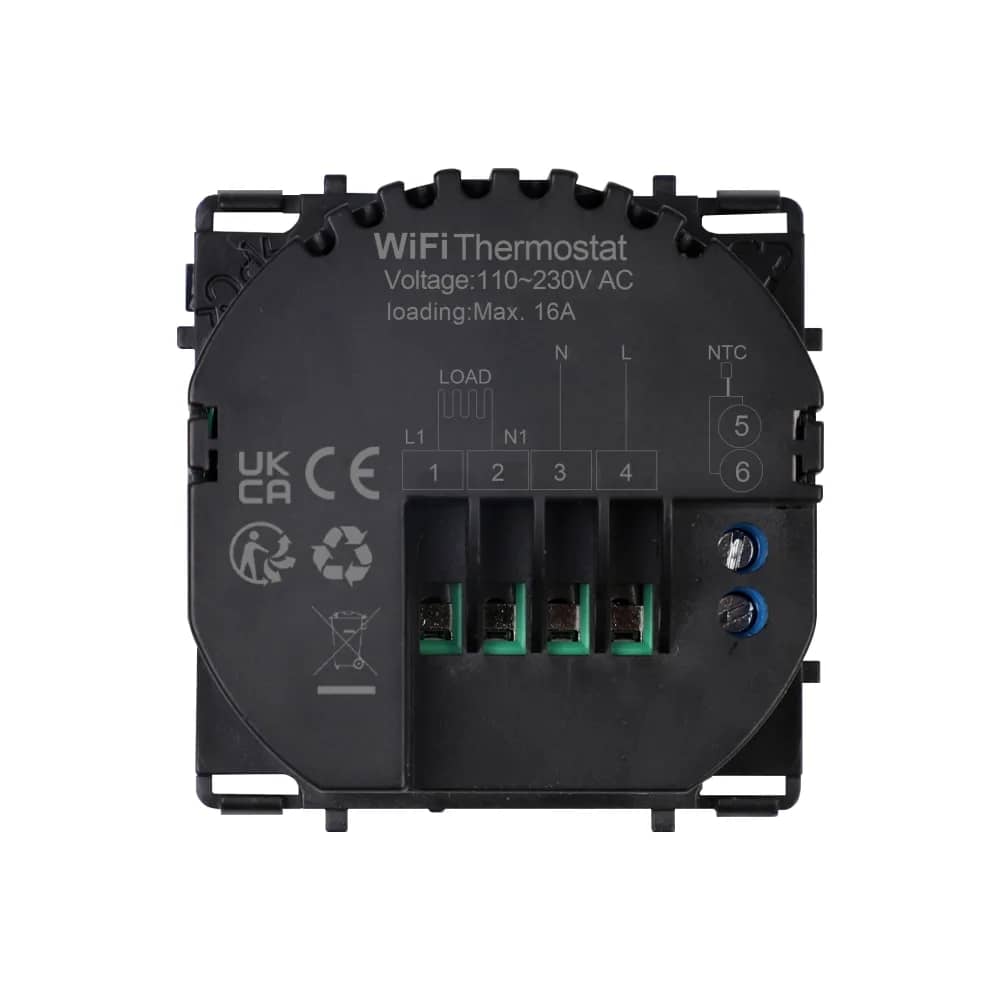

Technical Data
- Voltage: 110–230V AC
- Load: Max. 16A
04

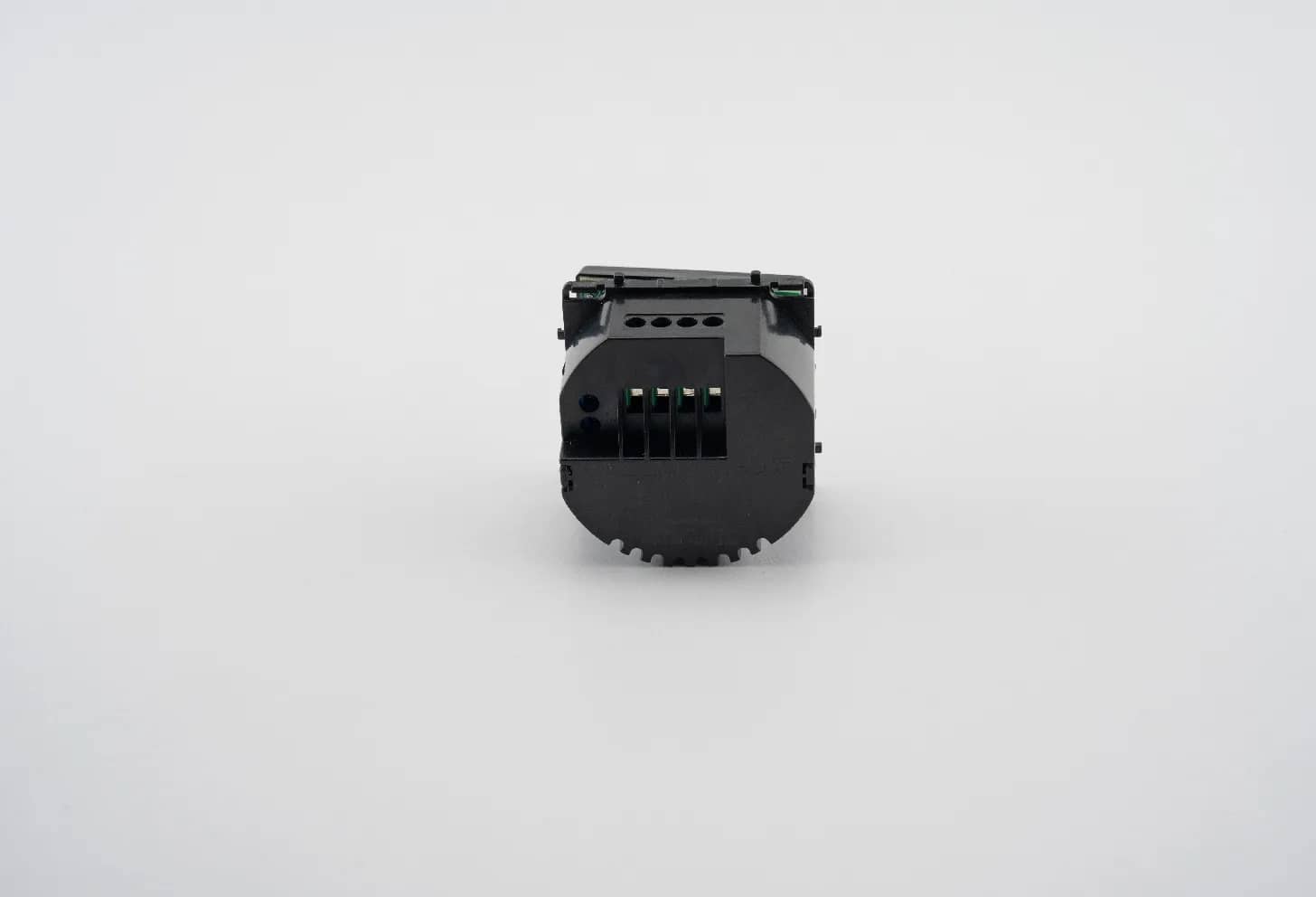

Wiring Diagram
Connect the heating load, power supply and floor sensor to the numbered terminals as shown below.
- Terminals 1–2 (L1, N1): Load (heating element)
- Terminal 3: N – Neutral
- Terminal 4: L – Live
- Terminals 5–6 (NTC): Floor sensor
