LUXION Doorbell Button Module
A touch doorbell push button module from LUXION, model TW-CM-1SB, designed to work with a separate glass panel and metal frame.
Luxion
Luxion Touch Doorbell Push Button Module (Momentary) – LX-MT-B101
SKU: LX-MT-B101
AED 61
In stock
1
- Delivery across all seven emirates. Free on orders over AED 750.
- Order now, we confirm availability and delivery with you before you pay.
Luxion momentary touch doorbell button module, fitted alone or alongside other Luxion sockets and switches in a Luxion glass frame.
Product details
The Luxion doorbell push button module. It can be fitted on its own in a Luxion panel or together with other Luxion sockets and light switches in a Luxion glass frame.
Compatible only with Luxion glass frames and panels.
Highlights
02

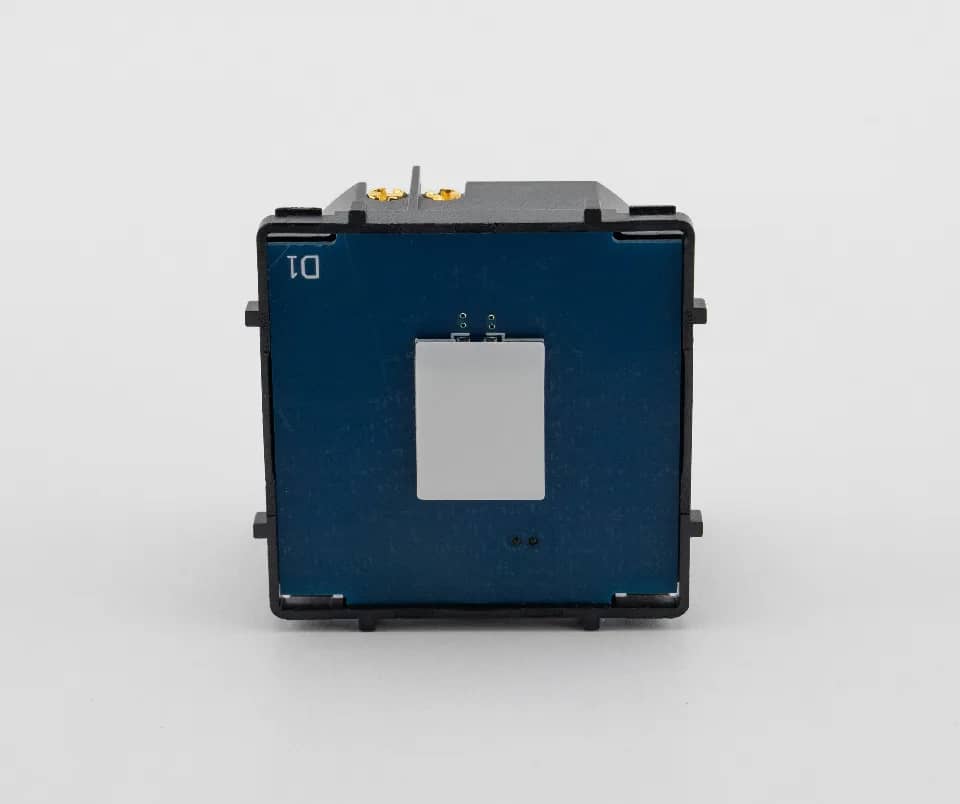

Installation: Wiring Diagram
Connect the live wire (L) directly to the module's L terminal. The neutral wire (N) goes to the doorbell, and the doorbell connects to the module's L1 terminal. Switch off the power before installing or removing the module.
- Live (L): to terminal L
- Neutral (N): via the doorbell to terminal L1
03

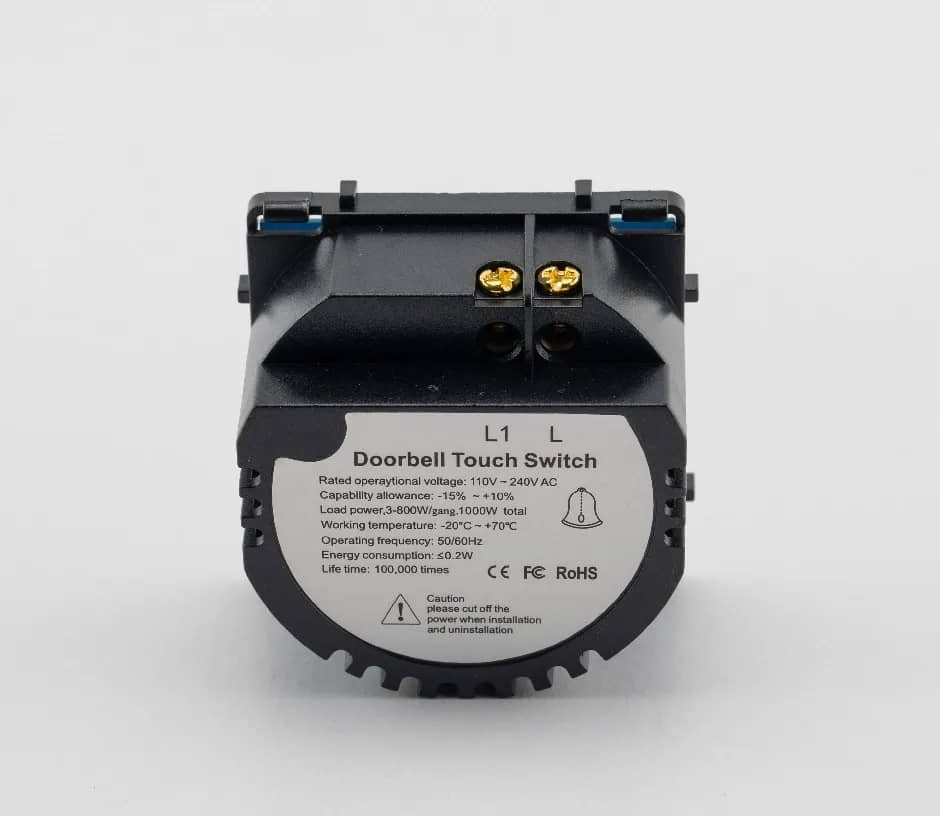

Technical Data
- Model: TW-CM-1SB
- Type: Doorbell Touch Switch
- Rated operational voltage: 110V ~ 240V AC
- Capability allowance: -15% ~ +10%
- Load power: 3-800W/gang, 1000W total
- Working temperature: -20°C ~ +70°C
- Operating frequency: 50/60Hz
- Energy consumption: ≤ 0.2W
- Life time: 100,000 times
- Markings: CE, FC, RoHS
04

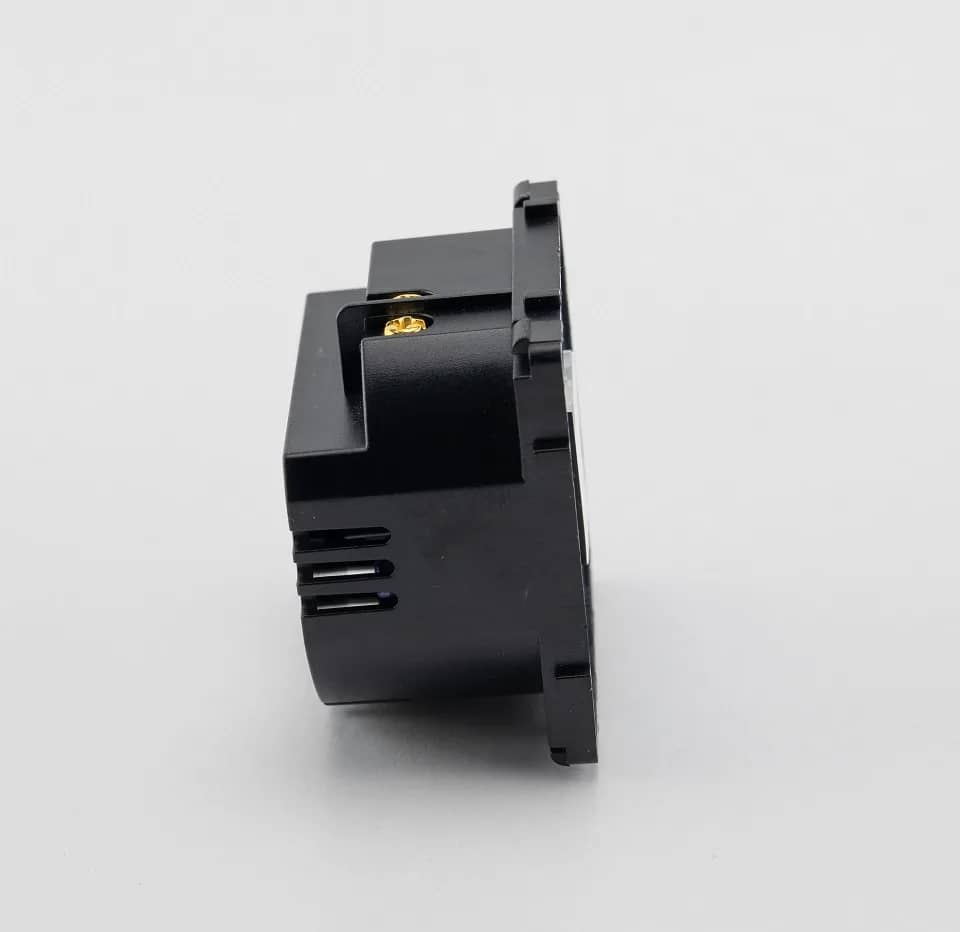

Dimensions

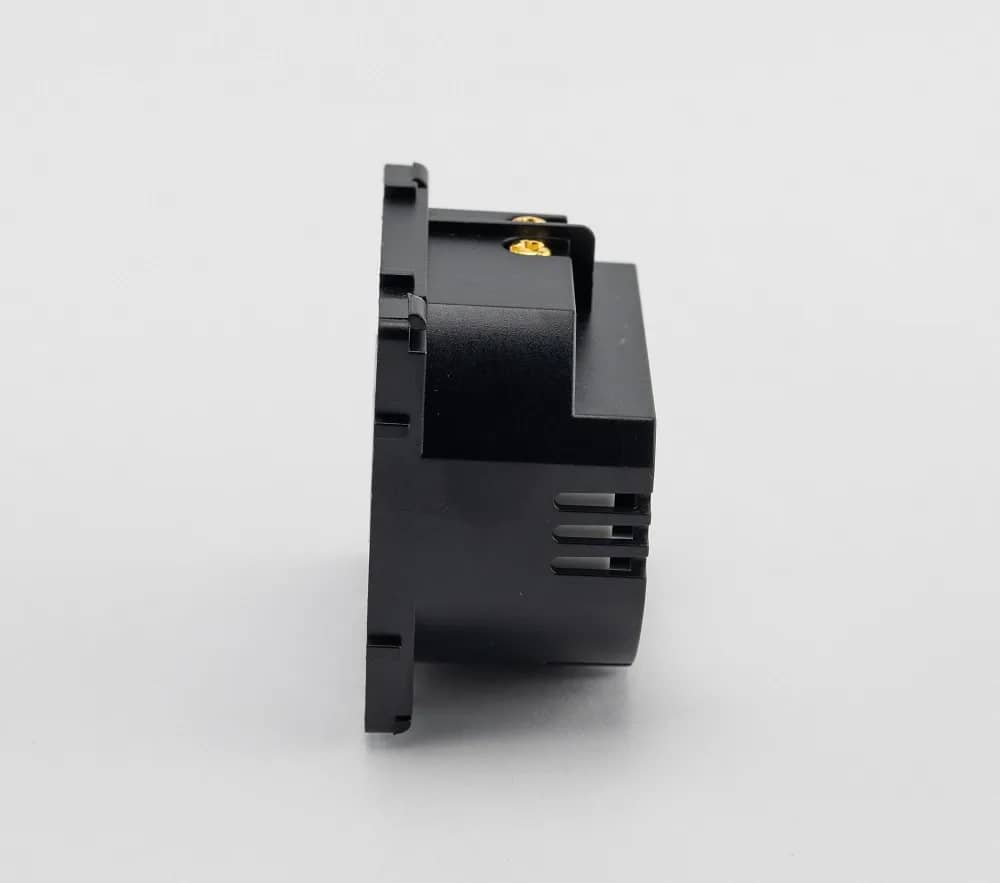

The module is fixed with screws spaced 60 mm apart.
- Front: 50 mm x 50 mm
- Depth: 5 mm + 26 mm
- Body height: 49 mm
- Screw fixing spacing: 60 mm
05
What's Not Included
The module is supplied on its own. The glass panel and metal frame are sold separately.
- Glass panel: not included
- Metal frame: not included
